Retrofit Rear Entertainment System - AN82.60-P-0013GQX

MODEL 166

as of model year 2016

with CODE 531 (COMAND APS)

with CODE 866 (Pre-installation for Rear Seat Entertainment System)

except CODE 498 (Japanese version)

except CODE 830 (Vehicles for China, additional parts)

MODEL 166

up to model year 2016

with CODE 866 (Pre-installation for Rear Seat Entertainment System)

except CODE 498 (Japanese version)

except CODE 830 (Vehicles for China, additional parts)

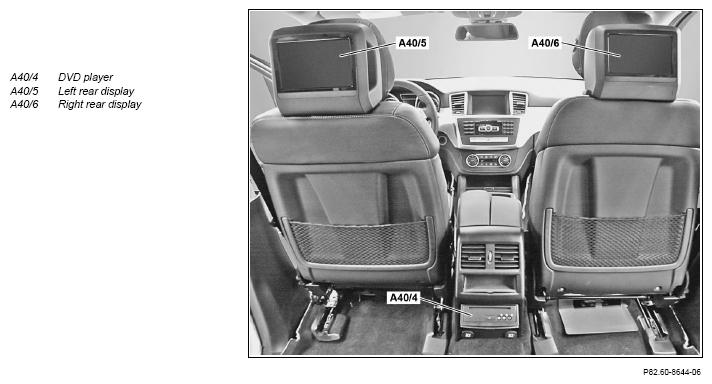

Shown on model 166.024 up to model year 2016

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Preparatory tasks
1	Prepare template for Rear Seat Entertainment system		AN82.60-P-0013-03GQX
	Remove
2	Remove head restraints from both front seats
		MODEL 166 as of model year 2016 except code 399 (Front multicontour seats with massage function)	AR91.16-P-0040GQA
		MODEL 166 as of model year 2016 with code 399 (Front multicontour seats with massage function) and model 166 up to model year 2016 The head restraints are no longer required	AR91.16-P-0040GQ
3	Remove left head restraint guide on both front seats
		MODEL 166 as of model year 2016	AR91.16-P-0050GQC
		MODEL 166 up to model year 2016 The head restraint guides are no longer required.	AR91.16-P-0050GQ
4	Switch on ignition and store transmitter key outside of transmission range (min. 2 m)
5	Remove rear center console		AR68.20-P-2020GQ
6	Remove center console		AR68.20-P-2000GQ
7	Remove cover on center console
		MODEL 166 as of model year 2016	AR68.20-P-2350GQA
		MODEL 166 up to model year 2016	AR68.20-P-2350GQ
8	Disassemble cover at rear center console	Pliers	AR68.20-P-2150-01GQ Fig 2
	Install
9	Install new head restraint guides	MODEL 166 as of model year 2016 MODEL 166 up to model year 2016 The head restraints will be installed at a later point in time.	AR91.16-P-0050GQC AR91.16-P-0050GQ
10	Install wiring harness for socket for 2nd seat row at right into center console	Mounting wedge	AN82.00-P-0010-01GQX Fig 1
11	Assemble cover on rear center console using parts included in package contents		AR68.20-P-2150-01GQ
12	Install cover on center console
		MODEL 166 as of model year 2016	AR68.20-P-2350GQA
		MODEL 166 up to model year 2016	AR68.20-P-2350GQ
13	Install center console		AR68.20-P-2000GQ
14	Install rear center console		AR68.20-P-2020GQ
15	Install left rear display (A40/5) and right rear display (A40/6)		AN82.60-P-0013-02GQ
16	Retrofit DVD player (A40/4)		AN82.60-P-0013-01GQ
17	Install remaining parts
	Update Vehicle Documentation (VeDoc)
18	Delete special equipment from online vehicle data card	CODE 866 (Preinstallation for Rear Seat Entertainment system)
19	Enter special equipment into the online vehicle data card	CODE 864 (Rear Seat Entertainment system)
20	Attach note "Rear entertainment system retrofitted as per AN82.60-P-0013GQX" under field organization texts to design groups 68, 82 and 91
21	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)		AD00.00-P-2000-04A
22	Carry out variant coding using software calibration number (SCN)	SAM control unit COMAND control unit Left rear display (A40/5)  Right rear display (A40/6)  Electronic ignition switch control unit
23	Carry out variant coding using software calibration number (SCN)	Model 166 with code 865 (TV tuner) Tuner unit
24	Enter corresponding country code under menu item Rear audio/video unit/Left and right display
25	Disconnect diagnostic system		AD00.00-P-2000-04A
	Check
26	Insert DVD into DVD player (A40/4) and check operation of rear entertainment system using remote control included in scope of supply

Part no.	Designation	Quantity
KG99	Rear Seat Entertainment system scope of supply	1
