Remove/Install Rear Center Console - AR68.20-P-2020GQ
MODEL 166
MODEL 292
Shown on MODEL 166 with code 581 (Automatic air conditioning)
Shown on MODEL 166 without code 864 (Rear entertainment system)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

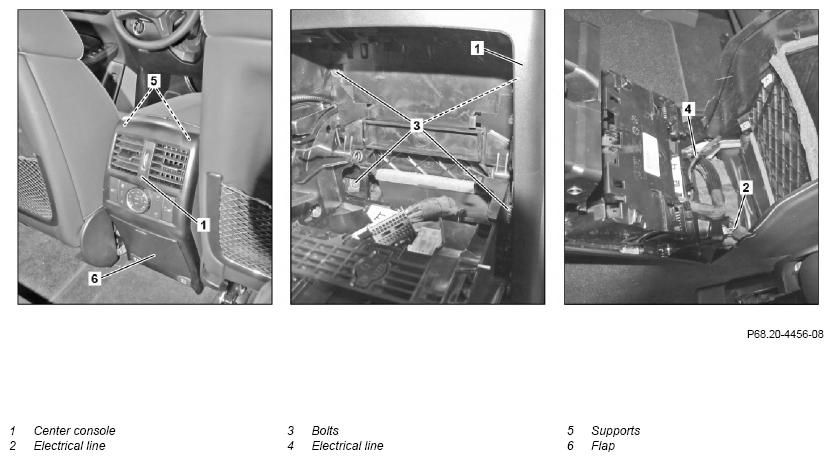

| 1 | Completely move front seats toward front | ||
| 2 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||

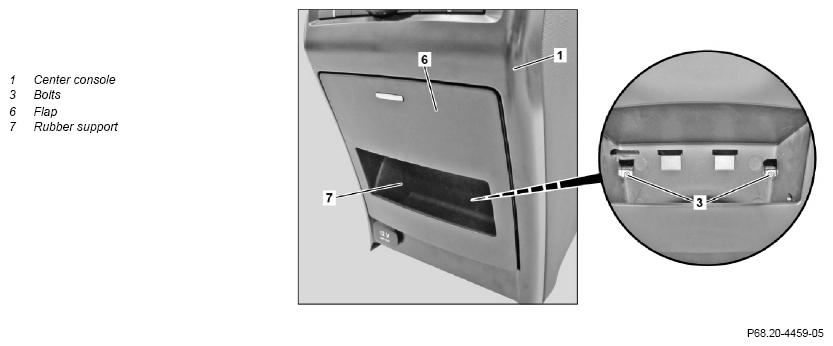

| 3.1 | Remove rubbers support (7) | Model 166 except code 864 (Rear compartment entertainment package) Model 292 except code 864 (Rear compartment entertainment package) |
|
| 3.2 | Remove DVD player | Model 166 with code 864 (Rear compartment entertainment package) Model 292 with code 864 (Rear compartment entertainment package) |
AR82.60-P-7505GQ |
| 4 | Unscrew bolts (3) at bottom of center console (1) | ||
| 5 | Open flap (6) | Model 166 except code 864 (Rear compartment entertainment package) Model 292 except code 864 (Rear compartment entertainment package) |
|
| 6 | For this purpose press flap (6) beyond stop point on center console (1) and unclip | Model 166 except code 864 (Rear compartment entertainment package) Model 292 except code 864 (Rear compartment entertainment package) |
|
| 7 | Unscrew bolts (3) at bottom of center console (1) | ||
| 8 | Unclip center console (1) from mounts (5) | ||
| 9 | Lay center console (1) toward rear | ||
| 10 | Disconnect electrical connector from RCP rear control panel in rear | Model 166 with code 581 (Automatic air conditioning) Model 292 with code 581 (Automatic air conditioning) |
|
| 11 | Disconnect electrical connector on electrical line (2) from right socket | Model 166 with code 864 (Rear compartment entertainment package) Model 292 with code 864 (Rear compartment entertainment package) |
|
| 12 | Unclip electrical line (4) from center console (1) | ||
| 13 | Disconnect electrical connector on electrical line (4) from left socket | ||
| 14 | Install in the reverse order |
