Remove/Install Head Restraint Guide On Front Seat - AR91.16-P-0050GQ
MODEL 166 up to model year 2016
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove | |||
| 1 | Remove head restraint | AR91.16-P-0040GQ | |

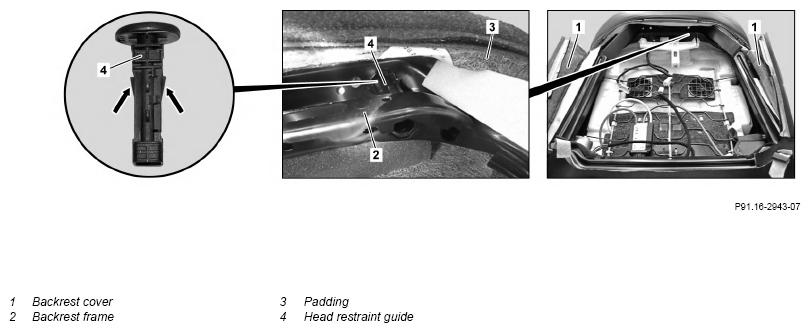

| 2 | Unhook tabs of backrest cover (1) from backrest frame (2) | ||
| 3 | Release backrest cover (1) with padding (3) from backrest frame (2) | ||
| 4 | Expose right or left head restraint guide (4) and create a gap between padding (3) and backrest frame (2) using a suitable tool | ||
| 5 | Release right or left head restraint guide (4) from both catch hooks (arrows) using a suitable tool and pull out upwards from backrest frame (2) | ||
| Install | |||
| 6 | Align backrest cover (1) with padding (3) on backrest frame (2) | ||
| 7 | Insert right and left head restraint guide (4) into backrest frame (2) from above and engage | ||
| 8 | Hook tabs of backrest cover (1) into backrest frame (2) | ||
| 9 | Install heat restraint | AR91.16-P-0040GQ |
