Remove/Install Head Restraint On Front Seat - AR91.16-P-0040GQ
MODEL 166 as of model year 2016
with CODE 399 (Multicontour front seats with massage function)
MODEL 166 up to model year 2016
MODEL 292
with CODE 399 (Multicontour front seats with massage function)

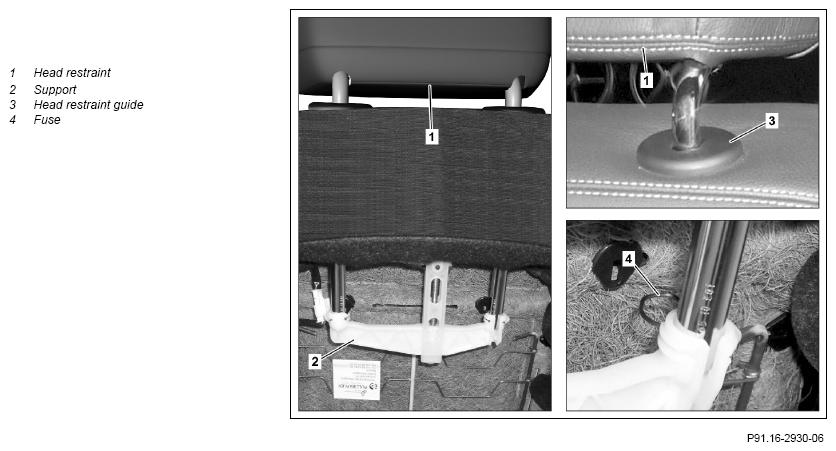

Shown on model 166
| Remove/install | |||
| 1 | Remove seat-back lining from backrest of front seat | AR91.10-P-1910GQ | |
| 2 | Remove locking clips (4) from mounting (2) | ||
| 3 | Adjust backrest of front seat far enough backwards until the head restraint (1) can be pulled out | ||
| 4 | Pull head restraint (1) out of head restraint guide (3) | ||
| 5 | Install in the reverse order |
