Remove/Install Exhaust - AR49.10-P-7142MRH

Engine 264 in model 213, 238, 257

MODIFICATION NOTES

16.11.2018 Method description for gasoline particulate filter revised. Operation steps 5, 6, 9, 14 added.
23.11.2018 Repair materials added. Operation steps 12, 15.

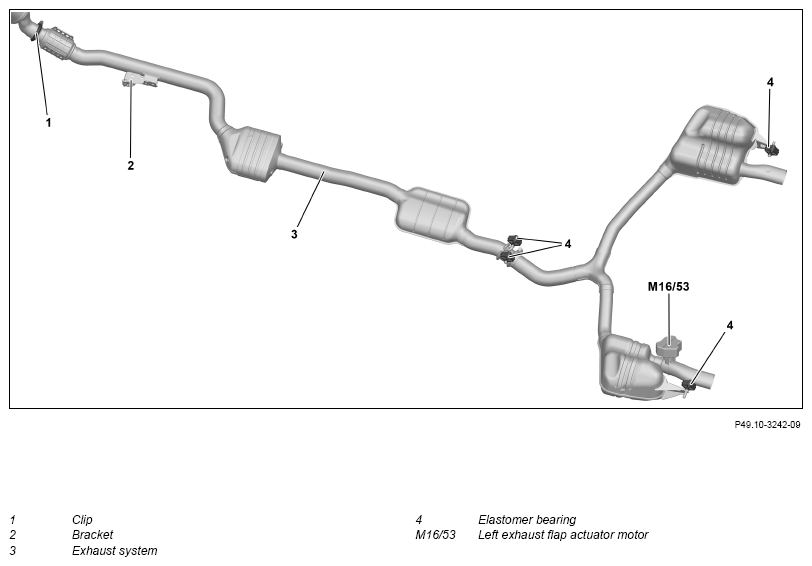

Fig 1: Exhaust System Components Location - Engine 264 In Model 213 (Shown In Model 238 Except Code 598)
G13746688Courtesy of MERCEDES-BENZ USA

Shown on engine 264 in model 238 except code 598 (Gasoline particulate filter (GPF) with sensor system)

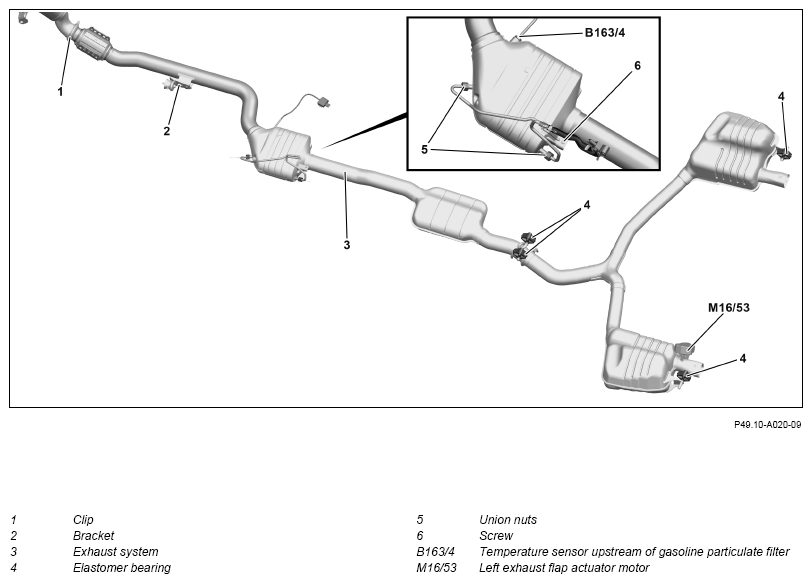

G13746689Courtesy of MERCEDES-BENZ USA

Shown on engine 264 in model 238 with code 598 (Gasoline particulate filter (GPF) with sensor system)

WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. AS49.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
REMOVINGINSTALLING Remove/install
1 Remove center and rear sections of lower engine compartment lining. Engine 264 in model 213, 238 AR61.20-P-1105LWE
Engine 264 in model 257
INSTALLATION IMPORTANT Only install center and rear lower rear engine compartment paneling again after leak test.
AR61.20-P-1105FR
2 Remove left and right underfloor paneling. Engine 264 in model 213, 238 AR61.30-P-1001LWE
Engine 264 in model 257 AR61.30-P-1001FR
3 Remove rear diagonal struts. Engine 264 in model 213.2, 238.4 AR61.10-P-5142LWP
4 Remove rear reinforcement. TORQUE SPECIFICATION Bolt, rear reinforcement to frame floor assembly *BA61.10-P-1004-01L
5 Remove temperature sensor upstream of gasoline particulate filter (B163/4) and place to one side. Engine 264 in model 213, 238, 257 with code 598 (Gasoline particulate filter (OPF) with sensor system) AR07.04-P-0070MRH
6 Unscrew union nuts (5) and place lines to one side. Engine 264 in model 213, 238, 257 with code 598 (Gasoline particulate filter (OPF) with sensor system)
INSTALLATION IMPORTANT Coat thread with heat-resistant lubricating paste. Paste, hot lubrication 1 kg, DBL 6879.20
*BR00.45-Z-1005-06A
TORQUE SPECIFICATION Union nut, line, differential pressure sensor, gasoline particulate filter *BA07.04-P-1003-02B
SPECIAL TOOL Box wrench bit Fig 2
7 Disconnect electrical connector at left exhaust gas flap actuator motor (M16/53).
8
REFER TO SPECIAL TOOLS
Support exhaust system (3).
000 588 11 62 00 Major assembly mount
  WS01.00-P-0092B
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
9 Unscrew screw/bolt (6). Engine 264 in model 213, 238, 257 with code 598 (Gasoline particulate filter (OPF) with sensor system)
TORQUE SPECIFICATION Engine 264 in model 213, 257 with code 598 (Gasoline particulate filter (OPF) with sensor system) Screw, bracket of pressure line to gasoline particulate filter
*BA49.10-P-1017-02P
TORQUE SPECIFICATION Engine 264 in model 238 with code 598 (Gasoline particulate filter (OPF) with sensor system) Screw, bracket of pressure line to gasoline particulate filter *BA49.10-P-1016-02M
10 Remove clamp (1). INSTALLATION IMPORTANT Replace clamp (1).
TORQUE SPECIFICATION Engine 264 in model 238Bolt, exhaust
*BA49.10-P-1002-02M
system clamp to catalytic converter
TORQUE SPECIFICATION Engine 264 in model 213, 257Clamp at catalytic converter and front exhaust system
*BA49.10-P-1002-02P
11 Unscrew nut of decoupling element from bracket (2). TORQUE SPECIFICATION Engine 264 in model 213, 257Nut, decoupling element for front exhaust system to bracket *BA49.10-P-1010-02P
TORQUE SPECIFICATION Engine 264 in model 238Nut, decoupling element for front exhaust system to bracket *BA49.10-P-1008-02M
12 Remove elastomer bearings (4) from exhaust system (3). INSTALLATION IMPORTANT Lightly wet elastomer bearings (4) with lubricant. Lubricant, rubber assembly 1 l *BR00.45-Z-1010-06A
13
REFER TO SPECIAL TOOLS
Remove exhaust system (3).
000 588 11 62 00 Major assembly mount
  WS01.00-P-0092B
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate IMPORTANT Helper required. WS26.00-P-3309B
INSPECT Check
14 Check decoupling element for damage and wear. If complaints are present

Replace decoupling element.
TORQUE SPECIFICATION Engine 264 in model 213, 257Nut, decoupling element for front exhaust system to bracket
*BA49.10-P-1010-02P
TORQUE SPECIFICATION Engine 264 in model 238Nut, decoupling element for front exhaust system to bracket *BA49.10-P-1008-02M
15 Check elastomer bearings (4) for damage and wear. If complaints are present,

Replace elastomer bearing (4).
INSTALLATION IMPORTANT Lightly wet elastomer bearings (4) with lubricant. Lubricant, rubber assembly 1 l
*BR00.45-Z-1010-06A
CLEANING Clean
16 Remove combustion and corrosion residues from separating points.
17 Install in the reverse order.
18 Check installation position and for unobstructed movement of exhaust system (3). If complaints are present

Correct installation position of exhaust system (3).

WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running.
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
19 Perform engine test run and check exhaust system (3) for leak tightness.
20 Install center and rear lower engine compartment lining. Engine 264 in model 213, 238 AR61.20-P-1105LWE
Engine 264 in model 257 AR61.20-P-1105FR
SENSORS

Number Designation Engine 264
BA07.04-P-1003-02B Union nut, line, differential pressure sensor, gasoline particulate filter Nm 20
EXHAUST SYSTEM

Number Designation Model 238 with engine 264
BA49.10-P-1002-02M Bolt, exhaust system clamp to catalytic converter Nm 22
EXHAUST SYSTEM

Number Designation Model 213 with engine 264 Model 257 with engine 264
BA49.10-P-1002-02P Clamp at catalytic converter and front exhaust system Nm 25 25
EXHAUST SYSTEM

Number Designation Model 238 with engine 264
BA49.10-P-1008-02M Nut, decoupling element for front exhaust system to bracket Nm 20
EXHAUST SYSTEM

Number Designation Model 213 with engine 264 Model 257 with engine 264
BA49.10-P-1010-02P Nut, decoupling element for front exhaust system to bracket Nm 20 20
EXHAUST SYSTEM

Number Designation Model 238 with engine 264
BA49.10-P-1016-02M Screw, bracket of pressure line to gasoline particulate filter Nm 5
EXHAUST SYSTEM

Number Designation Model 213 with engine 264 Model 257 with engine 264
BA49.10-P-1017-02P Screw, bracket of pressure line to gasoline particulate filter Nm 5 5
FRAME FLOOR ASSEMBLY

Number Designation Model 213 Model 238
BA61.10-P-1004-01L Bolt, rear reinforcement to frame floor assembly Nm 24 24
FRAME FLOOR ASSEMBLY

Number Designation Model 257
BA61.10-P-1004-01L Bolt, rear reinforcement to frame floor assembly Nm 24
Fig 2: Identifying Box Wrench Bit (000 589 70 03 00)
G13770756Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1005-06A Paste, hot lubrication 1 kg, DBL 6879.20 A 000 989 76 51
BR00.45-Z-1010-06A Lubricant, rubber assembly 1 L A 000 989 03 67
