Remove/Install Lower Engine Compartment Lining - Ar61.20-P-1105FR

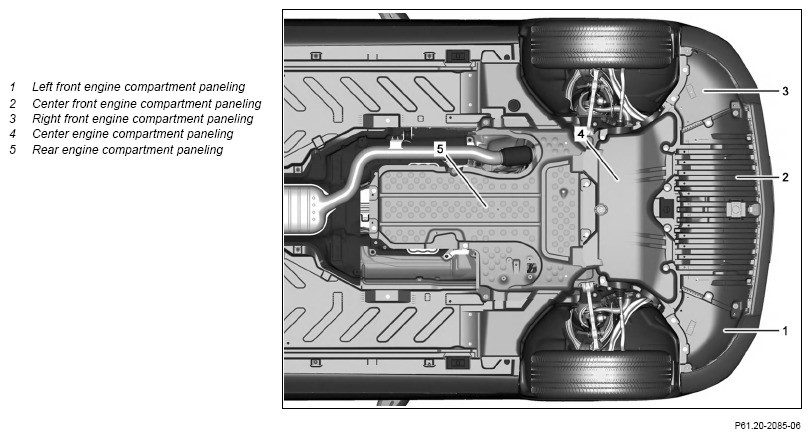

Shown with engine 264 except code 481
(Underbody protection)
| Risk of injury from engine start by remote start function | Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes | AS00.00-Z-0024-01A . | |
| Remove/install | |||
| 1 | Open hood. | Vehicles with remote start function | |
| 2 | Raise vehicle. | AR00.60-P-1006A . | |
| 3 | Remove center engine compartment lining (4) | with code 481 (Sump shield) Screw/bolt, underride guard |
*BA61.40-P-1001-01D |
| 4 | Remove left front engine compartment lining (1), center front engine compartment lining (2) right front engine compartment lining (3) or rear engine compartment lining (5). | ||
| 5 | Install in the reverse order. |
UNDERRIDE GUARD
| Number | Designation | Model 257 with code 481 (Sump shield) | |
|---|---|---|---|
| BA61.40-P-1001-01D | Screw/bolt, underride guard | Nm | 17 |
