Remove/Install Rear Diagonal Struts - Ar61.10-P-5142LWP

Model 205.4, 213.2, 238.4

Courtesy of MERCEDES-BENZ USA

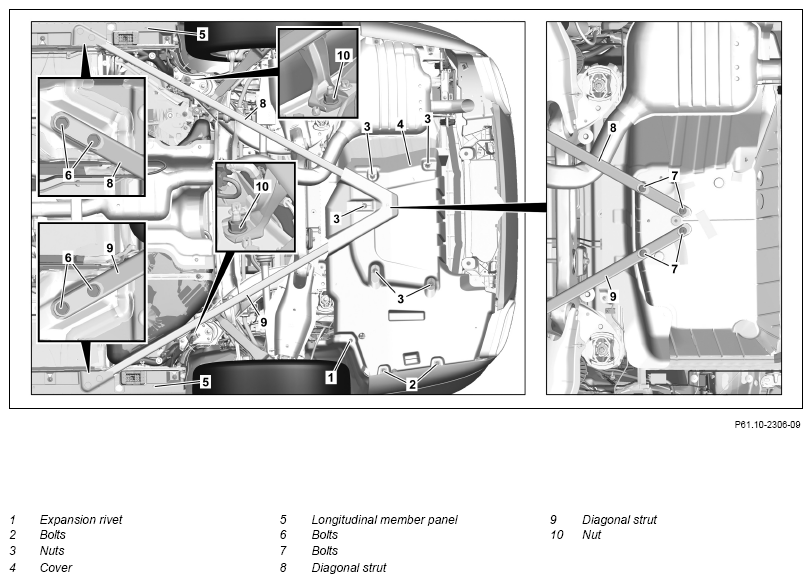

Shown on model 238.442

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A .
	Remove/install
1	Remove left and right underfloor paneling.	Model 205.4	AR61.30-P-1001LW .
1	Remove left and right underfloor paneling.	Model 213.2.238.4	AR61.30-P-1001LWE .
2	Release longitudinal member panels (5) in the area of the diagonal struts (8, 9).	Model 205.4	AR88.80-P-6000LW
		Model 213.2	AR88.80-P-6000LWE .
		Model 238.4	AR88.80-P-6000LWO
3	Remove expansion rivet (1).	Model 205.4 with engine 264, 274, 651, 654 Model 213.2 with engine 264, 274, 642, 654, 656 Model 238.4 with engine 264, 274, 276, 654
4	Unscrew bolts (2).	Model 205.4 with engine 264, 274, 651, 654 Model 213.2 with engine 264, 274, 642, 654, 656 Model 238.4 with engine 264, 274, 276, 654
5	Unscrew nuts (3) and remove cover (4).
6	Unscrew nuts (10).	Nut, rear diagonal strut bracket to stop plate	*BA61.10-P-1009-01L
7	Remove screws (6, 7) and remove diagonal struts (8, 9).	Do not use an impact wrench. Otherwise the threads can be damaged. The number of screws (6) can vary.
7	Remove screws (6, 7) and remove diagonal struts (8, 9).	Bolt, rear diagonal strut to spare wheel well/body	*BA61.10-P-1008-01L
8	Install in the reverse order

FRAME FLOOR ASSEMBLY (BA61.10-P-1008-01L) (Model 205 & 213)

Number	Designation		Model 205	Model 213
BA61.10-P-1008-01L	Bolt, rear diagonal strut to spare wheel well/body	Nm	70	50

FRAME FLOOR ASSEMBLY (BA61.10-P-1008-01L) (Model 238)

Number	Designation		Model 238
BA61.10-P-1008-01L	Bolt, rear diagonal strut to spare wheel well/body	Nm	70

FRAME FLOOR ASSEMBLY (BA61.10-P-1009-01L) (Model 205 & 213)

Number	Designation			Model 205	Model 213
BA61.10-P-1009-01L	Nut, rear diagonal strut bracket to stop plate	M10	Nm	50	50

FRAME FLOOR ASSEMBLY (BA61.10-P-1009-01L) (Model 238)

Number	Designation			Model 238
BA61.10-P-1009-01L	Nut, rear diagonal strut bracket to stop plate	M10	Nm	50
