Remove/Install Underbody Paneling - Ar61.30-P-1001LWE

Model 213

Model 238

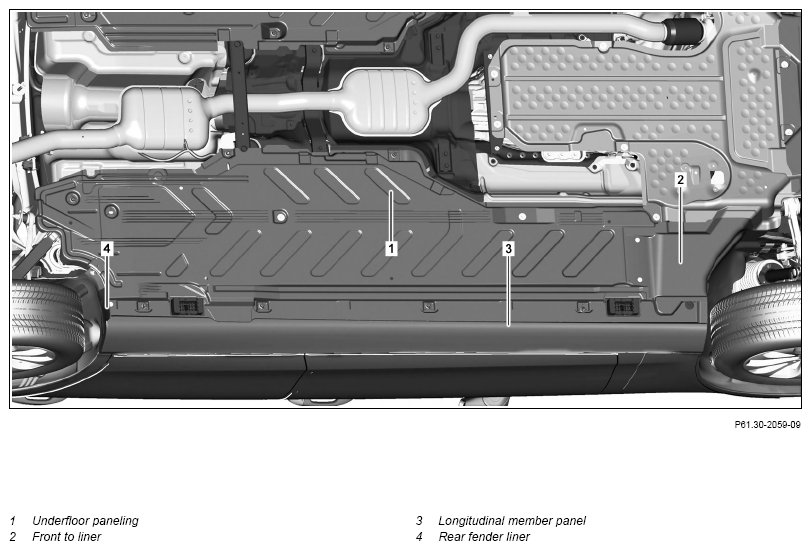

Fig 1: Underbody Paneling Component Locations (Model 213 & 238)

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

	Remove/install
1	Raise vehicle		AR00.60-P-1002LWG .
2	Remove front fender liner (2) from underfloor panelling (1)
3	Remove longitudinal member paneling (3) from underfloor paneling (1)
4	Remove rear fender liner (4) from underfloor paneling (1)
5	Remove underfloor paneling (1)	: It is necessary to push underfloor paneling (1) below engine compartment paneling and longitudinal member panel (3).
6	Install in the reverse order
