Remove/Install Left Oil Lines On Dual-Clutch Transmission - AR27.55-P-0612MNB
Transmission 700.4 In Model 190
| Topical note | General information on repair work on transmission | AH27.00-S-1000-01PS | |
| Remove/install | |||
| 1 | Remove rear underfloor paneling. | AR61.30-P-1001RG | |
| 2 | Remove bracket (1). | ||
| 3 | Remove bolt (2). | ||
| 4 | Pull lines out of transmission. | ||

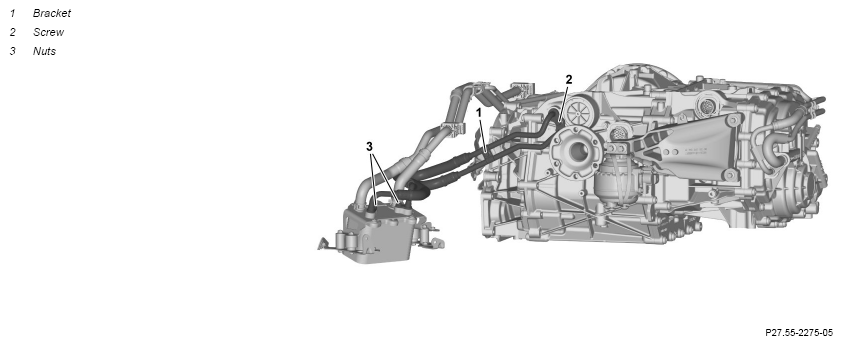

| Fig 1 | |||
| 5 | Unscrew nuts (3). | ||
| 6 | Pull lines out of cooler and remove lines. | ||
| Fig 1 | |||
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Check and correct oil level in transmission. | ||
| AP27.00-P-2706RQ | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform engine test run, check lines for leak tightness. |
