Remove/Install Axle Shaft Radial Shaft Seals - AR27.40-P-0210RQ

Transmission 700.40

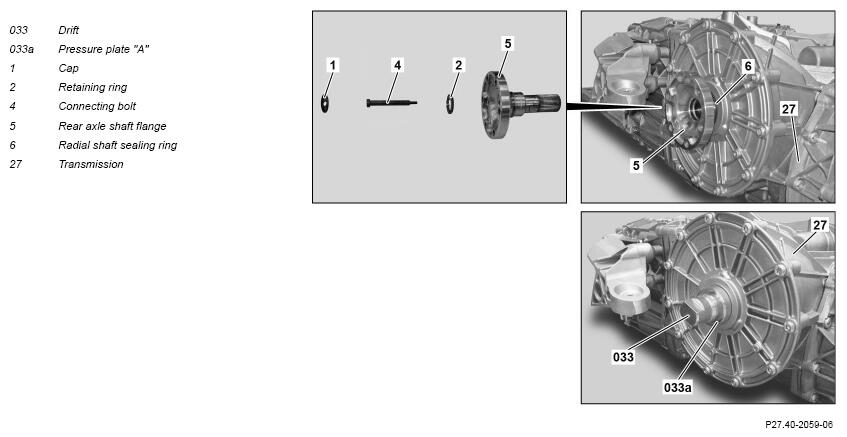

Shown on right side of transmission

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Topical note	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
	Remove/install
1	Remove right rear wheel and tire assembly.		AR40.10-P-1100RQ
2	Remove right rear axle shaft.		AR35.30-P-0620RQ
3	Pry cover cap (1) out of rear axle shaft flange (5) using suitable tool.
4	Unscrew connecting bolt (4) and remove together with retaining ring (2).	When slackening off and tightening the connecting bolt (4), counterhold at the left rear wheel and tire assembly.
		Before fitting, thoroughly clean connecting bolt (4) and coat with superfast adhesive.
		Bolt, joint flange to transmission housing	*BA27.40-P-1003-01F
		Quick-acting adhesive, Loctite 270	*BR00.45-Z-1008-02A
5	Attach left rear wheel and tire assembly.	When replacing left radial shaft sealing ring (6).	AR40.10-P-1100RQ
6	Remove left rear axle shaft.	When replacing left radial shaft sealing ring (6).	AR35.30-P-0620RQ
7	Pull respective rear axle shaft flange (5) out of transmission (27).
8	Pry respective radial shaft sealing ring (6) out of transmission (27) using a suitable tool.	Do not hammer in the prying-out tool between the radial shaft sealing ring (6) and the transmission housing. The sealing surfaces can be damaged otherwise.
		Push radial shaft sealing ring (6) uniformly into transmission housing using drift (033). Use drift (033) together with the "A" pressure plate (033a).
		Drift	Fig 1
	Check
9	Check contact surface of radial shaft sealing ring (6) on rear axle shaft flange (5).	If score marks and galling are present, ↓ Replace rear axle shaft flange (5).
10	Install in the reverse order.
11	Check transmission oil level and correct if necessary.
			AP27.00-P-2706RQ

HOUSING

Number	Designation		Transmission 700.4 in model 190	Transmission 700.4 in model 197
BA27.40-P-1003-01F	Bolt, joint flange to transmission housing	Nm	40	40

Fig 1: Identifying Drift (164 589 02 15 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1008-02A	Quick-acting adhesive, Loctite 270	A 002 989 93 71
