Check Condition Of Front Axle And Control Arms - AP33.10-P-3358D
Model 190
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Preparatory activity | |||
| 1 | Lift vehicle on vehicle lift | ||
| AR00.60-P-1000RG | |||
| Check | |||
| 2 | Check underfloor paneling for evidence of driving over obstacles or damage caused by contact with the vehicle underside | If the underfloor paneling is damaged: ↓ Rectify problem subject to separate repair order. |
|
| Remove | |||
| 3 | Remove front engine compartment paneling and loosen center engine compartment paneling | ||
| Model 190 (except 190.381) | AR61.20-P-1105RG | ||
| Model 190.381 | AR61.20-P-1105RGB | ||
| Check | |||
| 4 | Check wheel bearing by firmly pulling, pushing and turning the wheels | If there are complaints: ↓ Rectify problem subject to separate repair order. |
|
| 5 | Check front axle carrier for cracks, deformation and corrosion | If there are complaints: ↓ Rectify problem subject to separate repair order. |
|

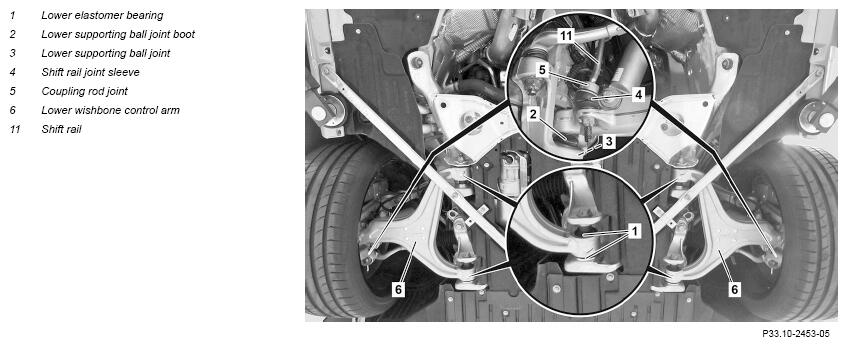

| 6 | Check lower elastomer bearings (1) of lower wishbone control arms (6) for cracks, deformation and wear and check for play by pulling and pressing firmly | If there are complaints: ↓ Rectify problem subject to separate repair order. |
|
| 7 | Check lower supporting ball joint boots (2) for condition, leak tightness and correct seating | If there are complaints: ↓ Rectify problem subject to separate repair order. |
|
| 8 | Check lower supporting ball joints (3) for play by pulling and pressing firmly on the lower wishbone control arm (6) | If there are complaints: ↓ Rectify problem subject to separate repair order. |
|

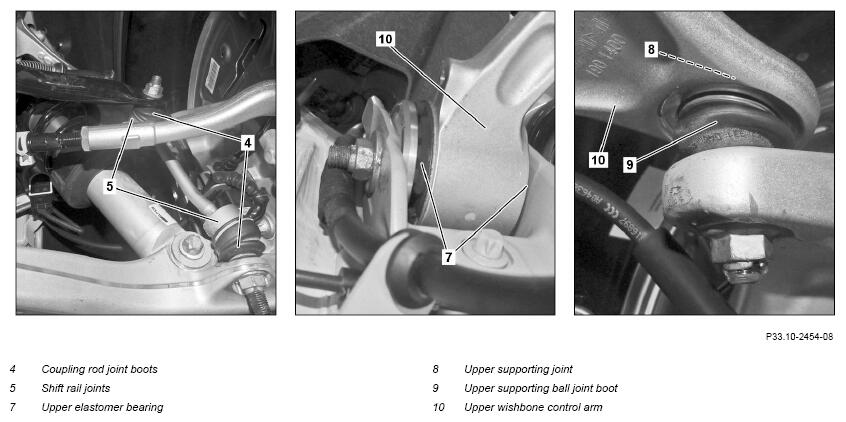

| 9 | Check shift rail joint boots (4) for proper condition, leak tightness and correct seating | If there are complaints: ↓ Rectify problem subject to separate repair order. |
|
| 10 | Check coupling rod joints (5) for play by firmly pulling and pushing shift rails (11) | If there are complaints: ↓ Rectify problem subject to separate repair order. |
|
| 11 | Check upper elastomer bearings (7) of upper wishbone control arms (10) for cracks, deformation and wear and check for play by pulling and pressing firmly | If there are complaints: ↓ Rectify problem subject to separate repair order. |
|
| 12 | Check upper supporting ball joint boots (9) for condition, leak tightness and correct seating | If there are complaints: ↓ Rectify problem subject to separate repair order. |
|
| 13 | Check upper supporting ball joints (8) for play by pulling and pressing firmly on the upper wishbone control arm (10) | If there are complaints: ↓ Rectify problem subject to separate repair order. |
|
| Install | |||
| 14 | Install front engine compartment paneling and secure center engine compartment paneling | ||
| Model 190 (except 190.381) | AR61.20-P-1105RG | ||
| Model 190.381 | AR61.20-P-1105RGB | ||
| Finishing activity | |||
| 15 | Lower vehicle |
