Remove/Install Roll Cage - AR91.50-P-2365RGB
Model 190.3
With Code M032 (Black Series version)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove front seats. | AR91.10-P-1000RG | |

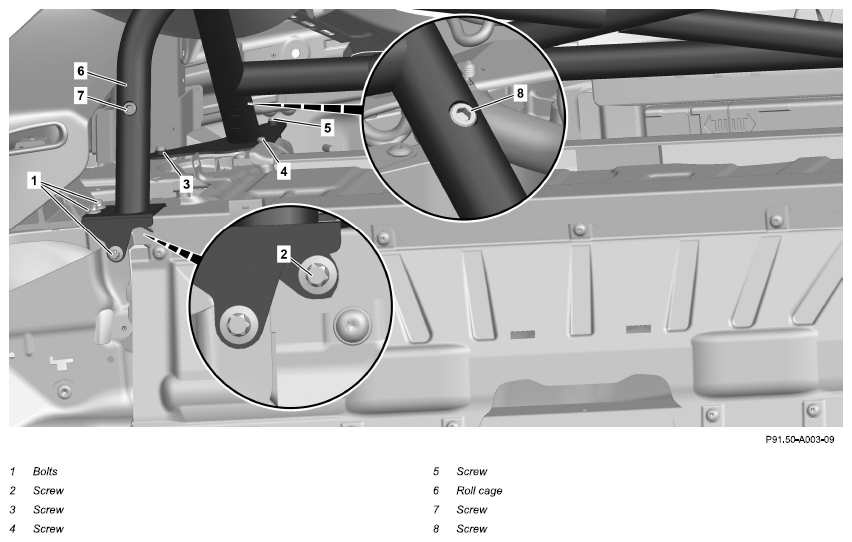

| 2 | Remove screws (7 and 8) on both sides of vehicle. | *BA91.50-P-1013-01A | |
| 3 | Guide roll cage (6) out of vehicle through opening of front passenger doors. | ||
| 4 | Remove rear panel trim. | AR68.30-P-4750RG | |
| 5 | Remove center trim in trunk. | AR68.30-P-4810RG | |
| 6 | Remove screws (1 and 2) on both sides of vehicle and remove front base of roll cage (6). | *BA91.50-P-1010-01A | |
| 7 | Remove screws (4) on both sides of vehicle. | *BA91.50-P-1012-01A | |
| 8 | Remove screws (3 and 5) on both sides of vehicle and remove rear base of roll cage (6). | *BA91.50-P-1011-01A | |
| 9 | Install in the reverse order. |
ROLL BAR MECHANICAL SYSTEM
| Number | Designation | Model 190.3 | |
|---|---|---|---|
| BA91.50-P-1010-01A | Roll bar to rear-end floor | Nm | 20 |
ROLL BAR MECHANICAL SYSTEM
| Number | Designation | Model 190.3 | |
|---|---|---|---|
| BA91.50-P-1011-01A | Roll bar to rear suspension strut mount | Nm | 8 |
ROLL BAR MECHANICAL SYSTEM
| Number | Designation | Model 190.3 | |
|---|---|---|---|
| BA91.50-P-1012-01A | Roll bar to front rear support | Nm | 6 |
ROLL BAR MECHANICAL SYSTEM
| Number | Designation | Model 190.3 | |
|---|---|---|---|
| BA91.50-P-1013-01A | Screw, roll bar base to roll bar | Nm | 72 |
