Remove/Install Front Passenger Knee Airbag - AR91.60-P-0100RG

Model 190

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Topical note	Notes on working in engine compartment		AH60.00-P-0042-01RG
Topical note	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Open engine hood		AR88.40-P-1000RG
2	Disconnect battery ground line		AR54.10-P-0003RG

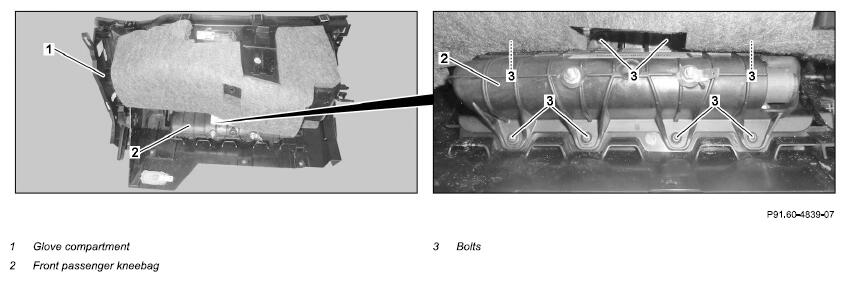

3	Remove glove compartment (1)		AR68.10-P-1400RG
4	Disconnect electrical connector from front passenger knee airbag squib	: The electrical connector at the front passenger knee airbag squib must audibly engage when attached.
5	Remove bolts (3)	Bolt, front passenger airbag to bracket	*BA91.60-P-1007-01N
6	Remove front passenger knee airbag (2) towards left from glove compartment
7	Install in the reverse order
	Check
8	Check supplemental restraint system (SRS) using STAR DIAGNOSIS	After replacing front passenger knee airbag (1).
9	Connect STAR DIAGNOSIS, read out fault memory
			AD00.00-P-2000-04B

AIRBAG

Number	Designation		Model 190
BA91.60-P-1007-01N	Bolt, front passenger airbag to bracket	Nm	3, 5
