Remove/Install Refrigerant Line Between Refrigerant Compressor And Front Connecting Point - AR83.30-P-7820MNJ
Model 190.381
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 190.381 with code 2U8 (Alternative refrigerant) |
AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 190.381 except code 2U8 (Alternative refrigerant) |
AS83.00-Z-0006-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on working in engine compartment | AH60.00-P-0042-01RG | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Procedure for a damaged or leaky air conditioning system | AH83.30-P-0004-01KOA | |
| Notes on handling refrigerant R134a | Model 190.381 except code 2U8 (Alternative refrigerant) |
AH83.30-P-0003-01KOA | |
| Notes on handling refrigerant R1234yf | Model 190.381 with code 2U8 (Alternative refrigerant) |
AH83.30-P-0003-02A | |
| Remove/install | |||
| 1 | Discharge air conditioning system. | AR83.30-P-1760RQ | |
| 2 | Remove lower center engine compartment lining. | AR61.20-P-1105RGB | |
| 3 | Detach refrigerant line (1) from refrigerant compressor (A9) and seal openings using suitable stop plugs. | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| *BA83.30-P-1010-01M | |||

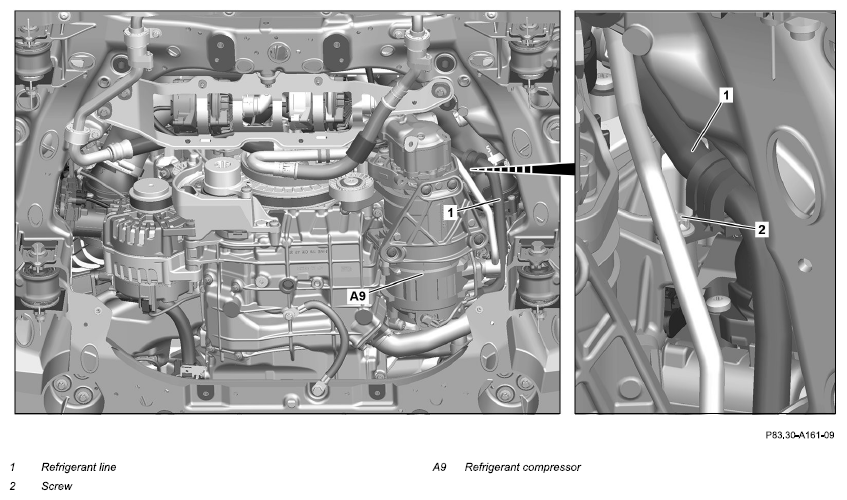

| Fig 2 | |||

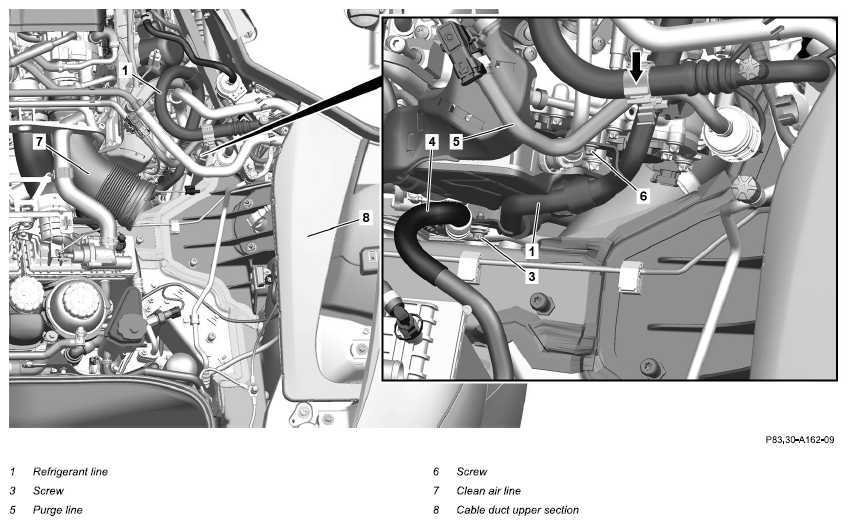

| Fig 1 | |||
| 4 | Remove bolt (2). | *BA83.30-P-1012-01M | |
| 5 | Remove left air filter housing. | AR09.10-P-1151MNJ | |
| 6 | Remove clean air line (7) downstream of air filter. | ||
| 7 | Remove upper part of cable duct (8). | ||
| 8 | Remove bolt (3). | *BA83.30-P-1021-01M | |
| 9 | Remove screw (6). | *BA83.30-P-1013-01M | |
| 10 | Remove purge line (5) from refrigerant line (1) (arrow). | ||
| 11 | Remove refrigerant line (1) at connecting point, seal openings using suitable stop plugs and remove upwards. | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| *BA83.30-P-1006-01M | |||
| Fig 1 | |||
| Fig 2 | |||
| 12 | Install in the reverse order. |
AIR CONDITIONING
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA83.30-P-1006-01M | Nut/bolt, refrigerant line to condenser/separating point | Nm | 12 |
AIR CONDITIONING
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA83.30-P-1010-01M | Bolt, mounting for refrigerant line to A/C compressor | Nm | 20 |
AIR CONDITIONING
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA83.30-P-1012-01M | Screw/bolt, refrigerant line to hydraulic pump bracket | Nm | 8 |
AIR CONDITIONING
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA83.30-P-1013-01M | Screw/bolt, refrigerant line to chain case cover | Nm | 8 |
AIR CONDITIONING
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA83.30-P-1021-01M | Bolt, refrigerant line to refrigerant line | Nm | 8 |
