Drain, Evacuate And Recharge Air Conditioning, Check For Proper Operation And Check For Leaks - AR83.30-P-1760RQ

Model 190, 197

MODIFICATION NOTES

17.10.2016 General note added AH83.30-P-0003-02A
17.10.2016 Safety note added AS83.00-Z-0007-01A
04.10.2016 Safety note added AS83.00-Z-0006-01A

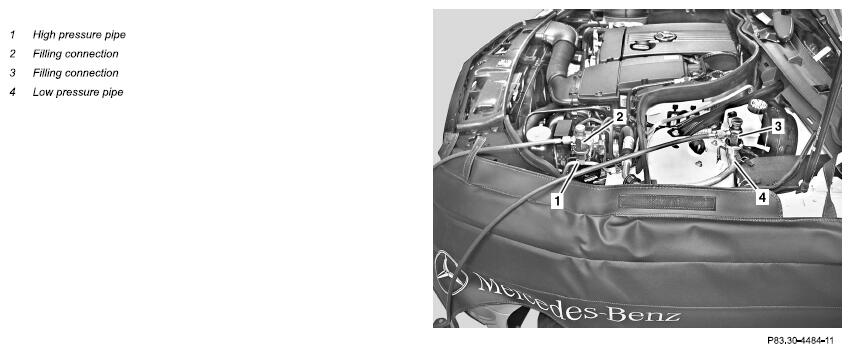

Shown on model 197

G16685789Courtesy of MERCEDES-BENZ USA
DANGER Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.
Model 190
with code 2U8 (Alternative refrigerant)		 AS83.00-Z-0007-01A
WARNING Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated.
Model 190
except code 2U8 (Alternative refrigerant) Model 197		 AS83.00-Z-0006-01A
Notice  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-P-0005-01KOA
Notice  Notes on working in engine compartment Model 190 AH60.00-P-0042-01RG
Notice  Procedure for a damaged or leaky air conditioning system   AH83.30-P-0004-01KOA
  Notes on handling refrigerant R134a Model 190
except code 2U8 (Alternative refrigerant)
Model 197		 AH83.30-P-0003-01KOA
  Notes on handling refrigerant R1234yf Model 190
with code 2U8 (Alternative refrigerant)		 AH83.30-P-0003-02A
  Connect
1 Connect filler connection (2) at air conditioning service unit to high-pressure line (1).
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit Model 190
with code 2U8 (Alternative refrigerant)		 WS83.00-P-0066B
REFER TO SPECIAL TOOLS 000 588 15 82 00 Air conditioning service unit R134a Model 190
except code 2U8 (Alternative refrigerant)
Model 197		 WS83.00-P-0064B
2 Connect filler connection (3) at air conditioning service unit to low-pressure line (4).
REFER TO SPECIAL TOOLS 000 588 15 82 00 Air conditioning service unit R134a Model 190
except code 2U8 (Alternative refrigerant)
Model 197		 WS83.00-P-0064B
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit Model 190
with code 2U8 (Alternative refrigerant)		 WS83.00-P-0066B
  Analyze
3 Analyze refrigerant in air conditioning system. Model 190
with code 2U8 (Alternative refrigerant)
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit   WS83.00-P-0066B
    IMPORTANT The refrigerant analysis must be performed using an analysis device integrated into the air conditioning service unit or an external analysis device with data transfer to the air conditioning service unit.
IMPORTANT A positive gas analysis is when the greenhouse gas exhibits a degree of purity of 92 %.
After a positive gas analysis,
↓
extract refrigerant from air conditioning system into internal container of air conditioning service unit.
After a negative gas analysis,
↓
The gas analysis must be performed up to three times. After a third negative gas analysis, the analysis device must be verified in accordance with the operator's manual. If the analysis device is functional and the gas analysis negative, the refrigerant must be extracted from the A/C system and then be stored in a recycling vessel.
  Draining
4 Extract refrigerant.
REFER TO SPECIAL TOOLS 000 588 15 82 00 Air conditioning service unit R134a Model 190
except code 2U8 (Alternative refrigerant)
Model 197		 WS83.00-P-0064B
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit Model 190
with code 2U8 (Alternative refrigerant)		 WS83.00-P-0066B
    IMPORTANT The quantity of refrigerant oil extracted from the refrigerant circuit must be documented.
    IMPORTANT When operating the air conditioning service unit, proceed in accordance with the operator's manual from the manufacturer.
INSPECT Check
5 Check receiver drier for re-usability. When one of the following conditions is fulfilled: vehicle is older than 5 years, refrigerant is dirt-laden (color ranges from dark gray to black), refrigerant compressor is jammed, or refrigerant circuit was damaged (e.g. after an accident).
↓
Replace drier cartridge.
    Model 197 AR83.30-P-6521RQ
    Model 190 (except 190.381) AR83.30-P-6521RG
    Model 190.381 AR83.30-P-6521MNJ
  Evacuate and check
6 Clean refrigerant, evacuate refrigerant circuit and run vacuum test.
REFER TO SPECIAL TOOLS 000 588 15 82 00 Air conditioning service unit R134a Model 190
except code 2U8 (Alternative refrigerant) Model 197		 WS83.00-P-0064B
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit Model 190
with code 2U8 (Alternative refrigerant)		 WS83.00-P-0066B
  Filling
7 Add new refrigerant compressor oil to refrigerant circuit according to the oil filling capacity noted during extraction.
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.1)   BB00.40-P-0362-01A
REFER TO SPECIAL TOOLS 000 588 15 82 00 Air conditioning service unit R134a Model 190
except code 2U8 (Alternative refrigerant) Model 197		 WS83.00-P-0064B
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit Model 190
with code 2U8 (Alternative refrigerant)		 WS83.00-P-0066B
    NOTES
Only the approved compressor oil may be used. If it is proven that a different compressor oil has been used, we will refuse to reimburse costs within the warranty and goodwill period. Daimler AG reserves the right to perform reexaminations.
    NOTES
The correct oil filling quantity in the refrigerant circuit must be ensured.
In the event of an incorrectly measured oil filling quantity, the refrigerant compressor may be damaged.
8.1 Correct oil level in air conditioning system. Following suddenly depleted system.
      AR83.30-P-5253NKB
8.2 Correct oil level in air conditioning system. After replacing parts.
      AR83.30-P-5252NKB
8.3 Correct oil level in air conditioning system. Following repair work or creeping refrigerant loss
      AR83.30-P-5251NKB
9 Fill air conditioning.
REFER TO SPECIAL TOOLS 000 588 15 82 00 Air conditioning service unit R134a Model 190
except code 2U8 (Alternative refrigerant)
Model 197		 WS83.00-P-0064B
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit Model 190
with code 2U8 (Alternative refrigerant)		 WS83.00-P-0066B
    FLUID SPECIFICATION Model 190
Model 197		 *BF83.00-P-1001-01C
    Air conditioning/automatic air conditioning
  Pressure test
10 Conduct pressure test using air conditioning service unit.
REFER TO SPECIAL TOOLS 000 588 15 82 00 Air conditioning service unit R134a Model 190
except code 2U8 (Alternative refrigerant)
Model 197		 WS83.00-P-0064B
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit Model 190
with code 2U8 (Alternative refrigerant)		 WS83.00-P-0066B
    If a pressure drop is detected,
↓
check air conditioning system for leakage.
      AR83.30-P-1761UV
  Disconnect
11 Disconnect filler connection (2) at air conditioning service unit from high-pressure line (1).
REFER TO SPECIAL TOOLS 000 588 15 82 00 Air conditioning service unit R134a Model 190
except code 2U8 (Alternative refrigerant)
Model 197		 WS83.00-P-0064B
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit Model 190
with code 2U8 (Alternative refrigerant)		 WS83.00-P-0066B
12 Disconnect filler connection (3) at air conditioning service unit from low-pressure line (4).
REFER TO SPECIAL TOOLS 000 588 15 82 00 Air conditioning service unit R134a Model 190
except code 2U8 (Alternative refrigerant)
Model 197		 WS83.00-P-0064B
REFER TO SPECIAL TOOLS 000 588 18 82 00 R1234yf air conditioning service unit Model 190
with code 2U8 (Alternative refrigerant)		 WS83.00-P-0066B
INSPECT Check
13 Check air conditioning system for proper operation.
AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number Designation Model 190 except code 2U8 (Alternative refrigerant) Model 190 with code 2U8 (Alternative refrigerant)
BF83.00-P-1001-01C Air conditioning/automatic air conditioning Filling capacity for refrigerant g 640 590
Specification R134a   BB00.40-P-0361-00A -
Specification R1234yf   - BB00.40-P-0361-01A
AIR CONDITIONING/AUTOMATIC AIR CONDITIONING

Number Designation Model 197
BF83.00-P-1001-01C Air conditioning/automatic air conditioning Filling capacity for refrigerant g 780
Specification R134a   BB00.40-P-0361-00A
Specification R1234yf   -
