Remove/Install Desiccant Cartridge - AR83.30-P-6521MNJ
Model 190.381
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 190.381 with code 2U8 (Alternative refrigerant) |
AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. Model 190.381 except code 2U8 (Alternative refrigerant) |
AS83.00-Z-0006-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||

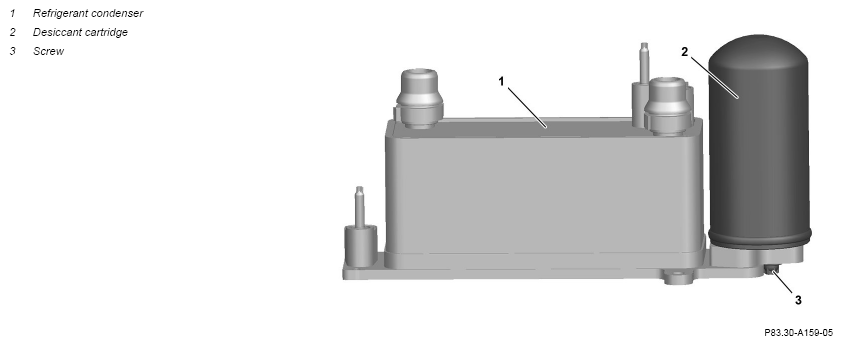

| 1 | Remove refrigerant condenser (1). | AR83.30-P-0013MNJ | |
| 2 | Remove bolt (3). | ||
| *BA83.30-P-1020-01M | |||
| 3 | Remove receiver drier (2) from condenser (1) and seal openings with suitable stop plugs. | ||
| Compressor oils (specification 362.1) | BB00.40-P-0362-01A | ||
| Fig 2 | |||
| Fig 1 | |||
| 4 | Install in the reverse order. |
AIR CONDITIONING
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA83.30-P-1020-01M | Bolt, receiver drier to refrigerant condenser | Nm | 8 |
