Remove/Install Radiator Unit - AR20.20-P-3871MNJ

Engine 178.9 in model 190.381

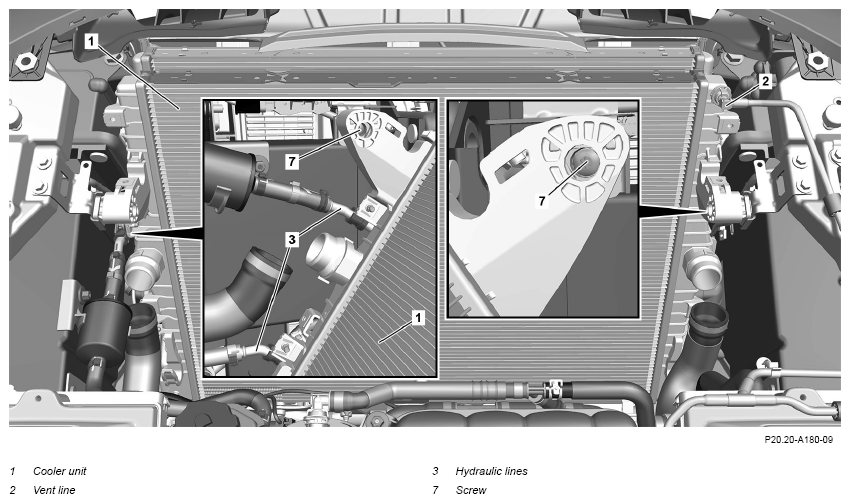

Fig 1: Radiator Unit Components Location - Engine 178.9 In Model 190.381

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on coolant		AH20.00-P-2080-01KOA
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Open engine hood and position upright.		AR88.40-P-1000RG
2	Drain off low-temperature circuit coolant.		AR20.00-P-1144MNJ
		: Install front section of the bottom engine compartment lining only after the leak test.
3	Remove fan unit.		AR20.40-P-5050MNJ
4	Remove bleed line (2) from cooler unit (1).		AR20.20-P-7441-01RQ
5	Remove hydraulic lines (3) from cooler unit (1).	Screw, oil line holder to cooler unit	*BA20.20-P-1017-01Q

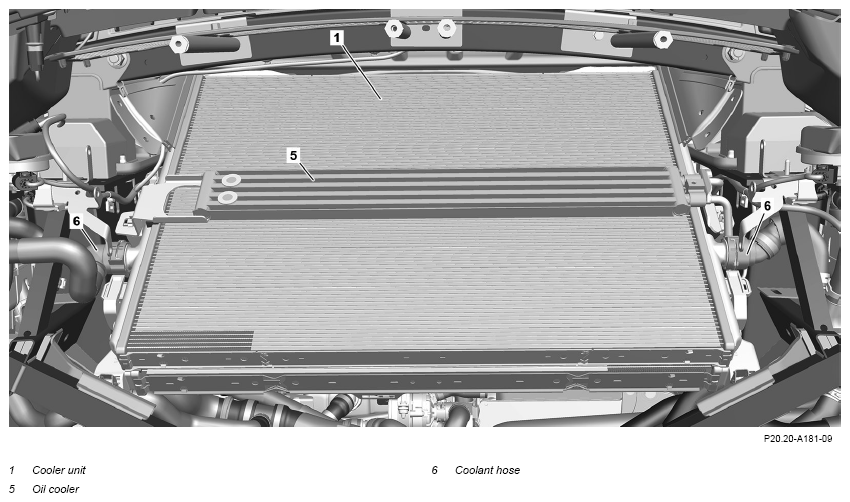

6	Unclip the oil cooler (5) - with the lines still connected - from the cooler unit (1).		AR46.25-P-3020RGB
7	Remove coolant hoses (6) from cooler unit (1).		AR20.20-P-7441-01RQ
8	Remove screws (7) and remove cooler unit (1) in upward direction.	: Ensure lower elastomer bearings of radiator unit (1) are seated centrally. Wet lower elastomer bearings of radiator unit (1) with lubricant.
		Aid of helper required.
		Screw, cooler unit to holder	*BA20.20-P-1016-01Q
		Lubricant, rubber assembly 1 L	*BR00.45-Z-1010-06A
	Check
9	Check radiator unit (1) for damage.	If damage is present: ↓ Replace corresponding component.
10	Check lower elastomer bearings of cooler unit (1) for wear and damage.	If damage is present: ↓ Replace lower elastomer bearings.
11	Install in the reverse order.
	Check
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Carry out engine test run; in doing so, check cooler unit (1) for proper operation and leak tightness.

RADIATOR, COOLANT HOSES

Number	Designation		Engine 178
BA20.20-P-1016-01Q	Screw, cooler unit to holder	Nm	8

RADIATOR, COOLANT HOSES

Number	Designation		Engine 178
BA20.20-P-1017-01Q	Screw, oil line holder to cooler unit	Nm	8

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 L	A 000 989 03 67
