Remove/Install Fanfare Horns - AR54.35-P-1555RG
Model 190
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Raise vehicle. | AR00.60-P-1000RG | |
| 2 | Remove bottom front engine compartment lining. | Model 190.381 | AR61.20-P-1105RGB |
| Model 190 (except 190.381) | AR61.20-P-1105RG | ||

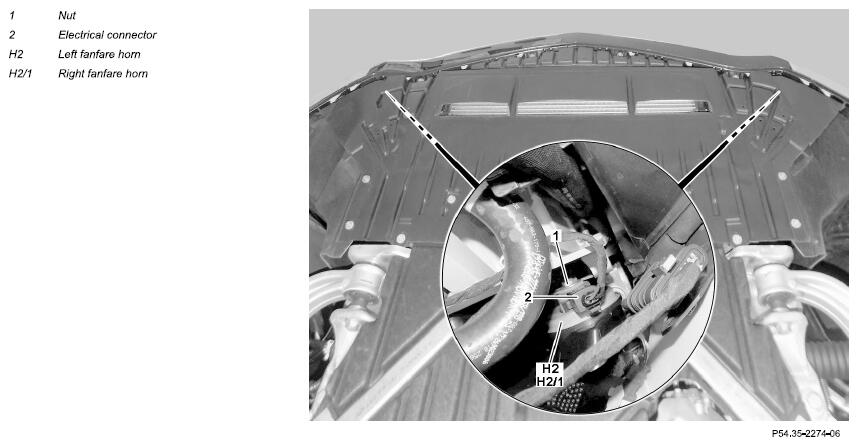

| 3 | Disconnect electrical connection (2). | ||
| 4 | Unscrew nut (1) and remove left horn (H2) or right horn (H2/1). | ||
| 5 | Install in the reverse order. |
