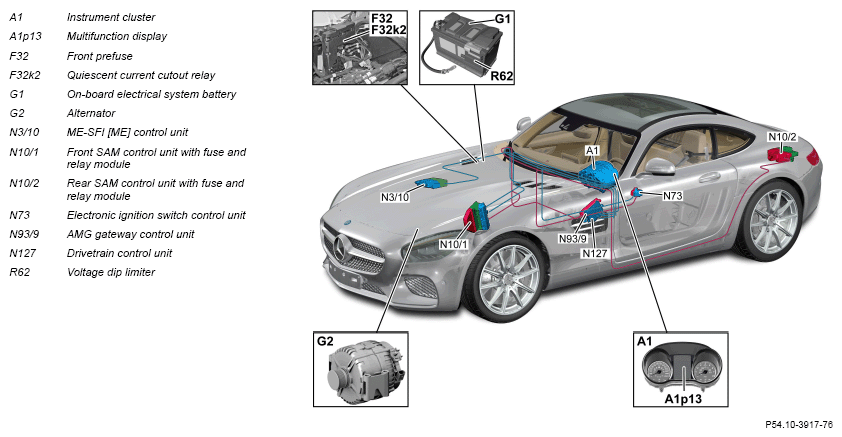

Overview Of Energy Management System Components - GF54.10-P-9990RR
Model 190
| Component description for instrument cluster | A1 | GF54.30-P-6000RR | |
| Component description for ME-SFI (ME) control unit | Model 190 with ENGINE 178.9 N3/10 |
GF07.61-P-6000MNB | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RR | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RR | |
| AMG gateway control unit, component description | Model 190 with TRANSMISSION 700.4 N93/9 |
GF54.21-P-1001RR | |
| Drivetrain control unit, component description | Model 190 with ENGINE 178.9 N127 |
GF54.21-P-2141MNB | |
| Table of contents for function description of energy management | GF54.10-P-0990RR |
