Remove/Install Emergency Call System Antenna - AR82.95-P-0017RG
Model 190.3
With Code 348 (Emergency call/assistant system)
Model 190.3
With Code 350 (Ecall emergency call system, Europe)
Model 190.3
With Code 362 (HERMES communications module LTE)
Model 190.3
With Code 380 (Car telephony package)
Model 190.3
With Code B54 (Live Traffic Information)
MODIFICATION NOTES
| 03.04.2020 | Remove ventilation flap with emergency call system antenna (4) on left or right. | Operation step 11 to 16. |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| Emergency call system antenna (A2/52) | |||
| 1 | Move driver seat and front passenger seat forward to end position. | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove strut mounting stay, front suspension brace. | AR64.20-P-0010RG | |
| 4 | Remove side trim from rear passenger compartment on right. | AR68.30-P-4780RG | |
| 5 | Release rear panel trim in area on upper right side. | AR68.30-P-4750RG | |

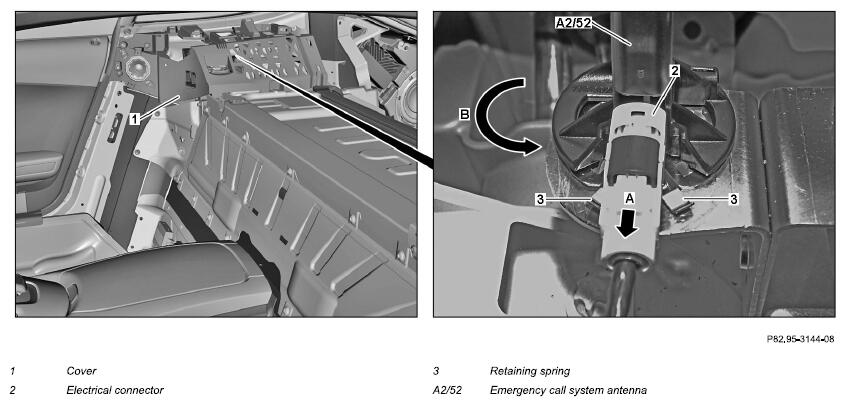

| 6 | Release cover (1) and place to one side. | ||
| 7 | Release and disconnect electrical connector (2). | ||
| 8 | Lift safety springs (3) and pull emergency call system antenna (A2/52) forward to end stop (arrow A). | ||
| 9 | Rotate emergency call system antenna (A2/52) through 90° in counterclockwise direction (arrow B) and remove. | ||
| 10 | Install in the reverse order. | ||
| Ventilation flap with emergency call system antenna (4) on left and right | |||
| 11 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 12 | Remove rear bumper. | AR88.20-P-2200RG | |
| 13.1 | Remove sound system control unit. | When removing ventilation flap with emergency call system antenna (4) on right. Model 190.3 as of model year 2016 with code 348 (Emergency call/assistant system) with code 810 (Premium sound system) Model 190.3 as of model year 2016 With Code 348 (Emergency call/assistant system) With Code 811 (High-End sound system) Model 190.3 as of model year 2016 With Code 350 (Ecall emergency call system, Europe) With Code 810 (Premium sound system) Model 190.3 as of model year 2016 With Code 350 (Ecall emergency call system, Europe) With Code 811 (High-End sound system) Model 190.3 as of model year 2016 With Code 362 (HERMES communications module LTE) With Code 810 (Premium sound system) Model 190.3 as of model year 2016 With Code 362 (HERMES communications module LTE) With Code 811 (High-End sound system) Model 190.3 as of model year 2016 With Code 380 (Car telephony package) With Code 810 (Premium sound system) Model 190.3 as of model year 2016 With Code 380 (Car telephony package) With Code 811 (High-End sound system) Model 190.3 as of model year 2016 With Code 810 (Premium sound system) With Code B54 (Live Traffic Information) Model 190.3 as of model year 2016 With Code 811 (High-End sound system) With Code B54 (Live Traffic Information) |
AR82.62-P-7724RG |
| 13.2 | Remove tire repair kit. | Model 190.3 With Code 348 (Emergency call/assistant system) With Code B51 (TIREFIT) Model 190.3 With Code 350 (Ecall emergency call system, Europe) With Code B51 (TIREFIT) Model 190.3 With Code 362 (HERMES communications module LTE) With Code B51 (TIREFIT) Model 190.3 With Code 380 (Car telephony package) With Code B51 (TIREFIT) Model 190.3 With Code B51 (TIREFIT) With Code B54 (Live Traffic Information) When removing ventilation flap with emergency call system antenna (4) on left. |
|
| 14 | Release and disconnect electrical connector of ventilation flap with emergency call system antenna (4) on left or right. | ||

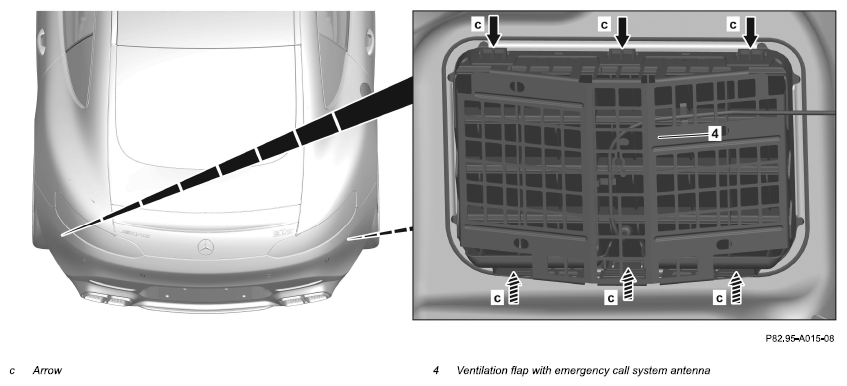

| 15 | Unclip ventilation flap with emergency call system antenna (4) on left or right at arrows (c) and remove outward. | Fig 1 | |
| 16 | Install in the reverse order. |
