Remove/Install Rear Soft Top Roof Lining - AR77.30-P-1012RGR

Model 190.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Remove/install
1	Remove front soft top headliner		AR77.30-P-1007RGR
2	Remove soft top water drain		AR77.30-P-3370RGR
3	Move soft top in closed direction and secure in assembly position with a suitable tool	Helper required.

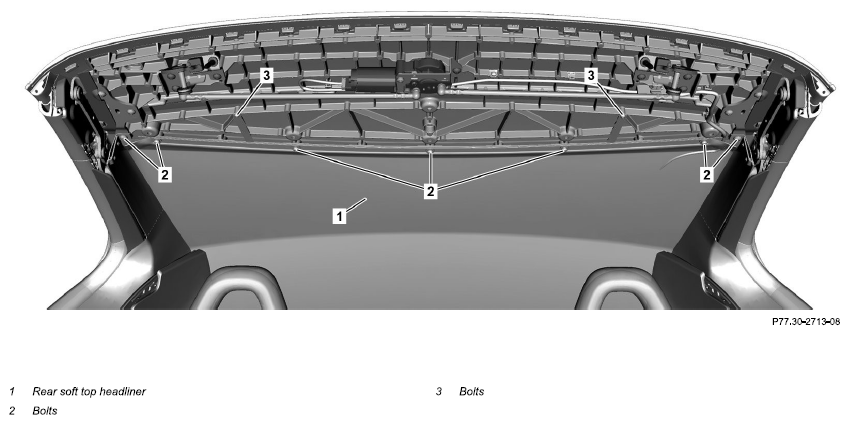

4	Unscrew screws (2) and detach rear soft top headliner (1) in the front area
5	Unscrew screws (3) and guide the tensioning straps of the rear soft top headliner (1) out	Ensure that the tensioning straps are not twisted.
6	Mark cables on the soft top bearings (8) with a suitable tool	This instruction must be carried out on both sides.

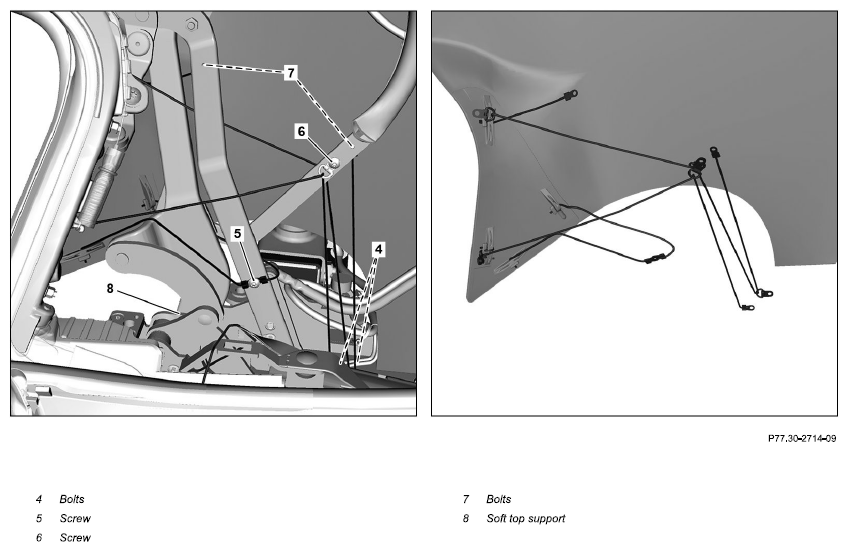

7	Carefully unscrew the screws (4) on the floor plates of the soft top bearing (8)	Document the routing of the cables. Otherwise, damage may occur.
		This instruction must be carried out on both sides.
		The cables are under tension.
8	Unscrew screws (6, 7) and carefully guide out the cables	This instruction must be carried out on both sides.
		Ensure that the deflection eyes have been correctly positioned.
9	Unscrew screw (5) and carefully guide out the cables	This instruction must be carried out on both sides.
		Ensure that the deflection eyes have been correctly positioned.
10	Separate the velcro connection between the rear soft top tensioning straps and the rear soft top headliner (1)	This instruction must be carried out on both sides.
11	Unscrew screws (10) in area of floor plates of the soft top bearings (8)	This instruction must be carried out on both sides.
12	Detach rear soft top headliner (1) in the rear area

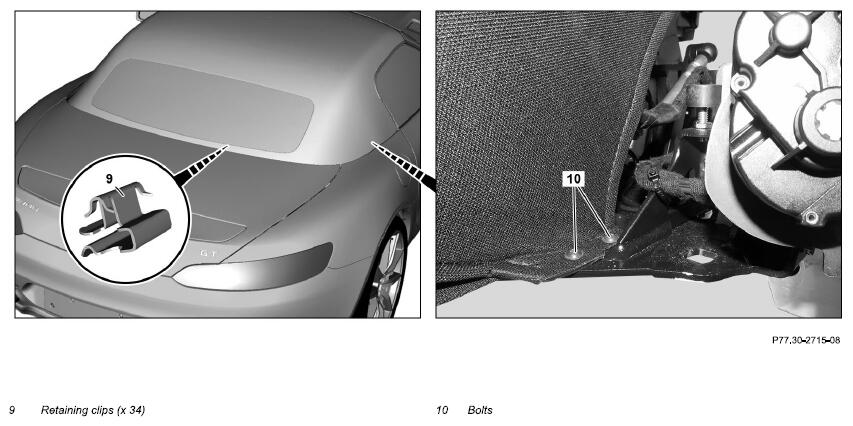

13	Remove retaining clips (9) with a suitable tool	Ensure that the rear soft top headliner (1) is not pulled. Otherwise, the rear soft top headliner (1) will be damaged.
14	Detach and remove rear soft top headliner (1) along the mounting rail at the bottom with a suitable tool
15	Install in the reverse order
