Remove/Install Front Soft Top Roof Lining - AR77.30-P-1007RGR

Model 190.4

MODIFICATION NOTES

05.05.2017

Special tool added

Operation step 2

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Remove/install
1	Switch on ignition and open soft top approx. 10 cm
2	Support soft top using device	Support	Fig 3
		Support	Fig 1
3	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)

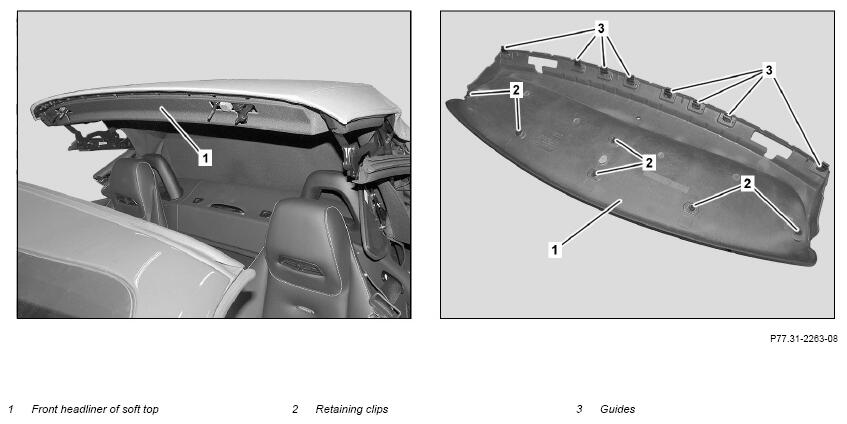

4	Unclip front headliner (1) of soft top from retaining clips (2)
5	Unclip guides (3) from soft top bow	Unclip front headliner (1) of soft top carefully, because soft top bow is made of magnesium. Otherwise the surface finish on the soft top bow can be damaged, resulting in corrosion. It must be ensured that the clips are seated on the body correctly. To prevent damaging the front headliner (1) of soft top.
		Mounting wedge Check clips for damage; if damage exists: ↓ Replace clips.	Fig 2
6	Remove front headliner (1) of soft top
7	Install in the reverse order

Fig 1: Identifying Support (230 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Support (231 589 02 63 00)

Courtesy of MERCEDES-BENZ USA
