Remove/Install Water Drain For Soft Top - AR77.30-P-3370RGR

Model 190.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Remove
1	Remove soft top		AR77.30-P-1002RGR
2	Install soft top (2) on device	Soft top must, as shown, be installed in closed position.
		Ensure that the soft top tensioning straps are not installed on the device (2).
		Device	Fig 1

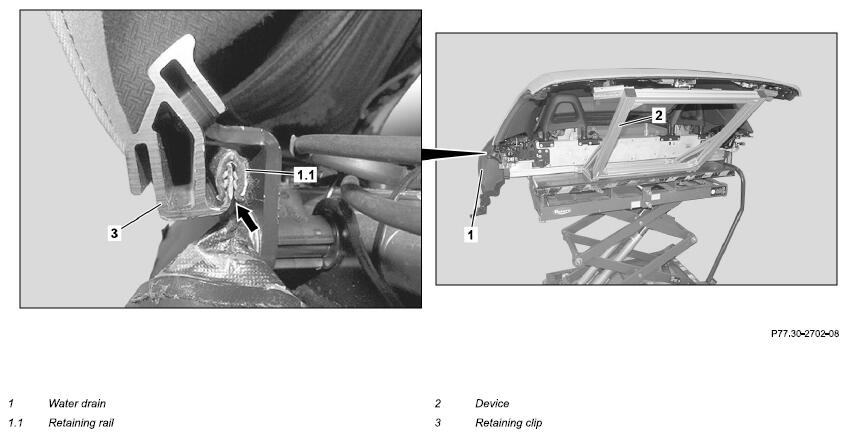

3	Starting at the middle of the soft top, detach the retaining strip (1.1) from the clamping bracket (3)

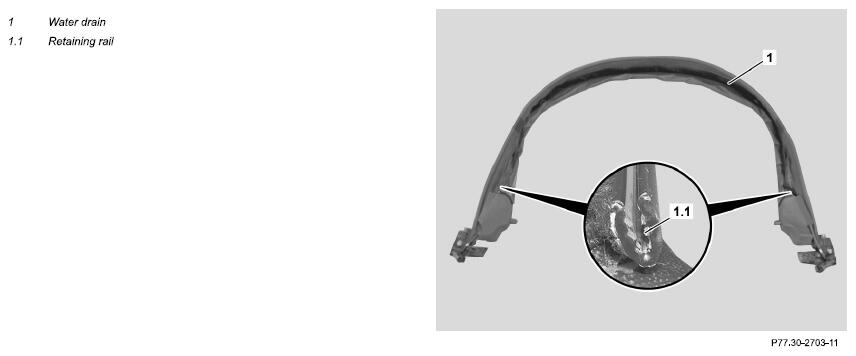

4	Remove water drain (1) at both ends of the retaining strip (1.1) from the clamping bracket (3) by moving it to the rear
	Install
5	Initially, connect water drain (1) to both ends of the retaining strip (1.1) on the clamping bracket (3)	The ends of the retaining strip (1.1) must form a flush connection with the front edge of the clamping bracket (3) (arrow)
6	Connect retaining strip (1.1) along entire length as far as the limit stop on the clamping bracket (3)
7	Remove soft top from device (2)	Device	Fig 1
8	Install soft top		AR77.30-P-1002RGR

Fig 1: Identifying Device (197 589 01 31 00)
