Remove/Install Front Soft Top Seal To Front Door Side Window - AR77.30-P-3361RGR

Model 190.4

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Remove/install
1	Open side windows completely
2	Remove headliner from front soft top		AR77.30-P-1007RGR
3	Move soft top into intermediate position and secure		AR77.30-P-1030-01RGR
		Support	Fig 2
		Support	Fig 1

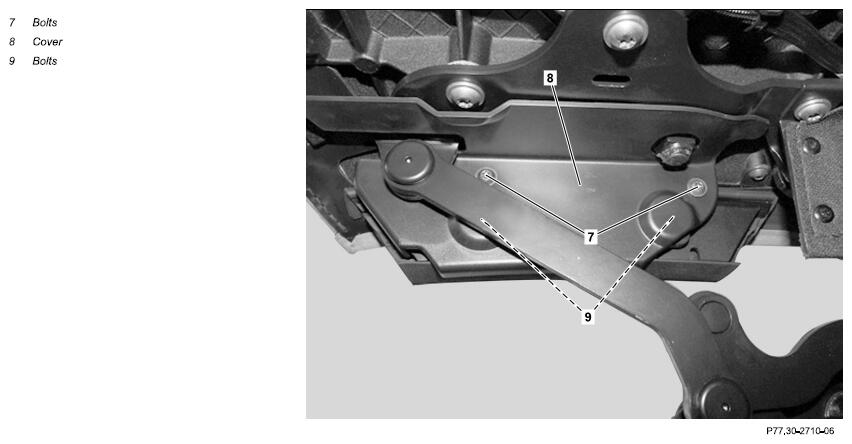

4	Remove bolts (7) and take off cover (8)

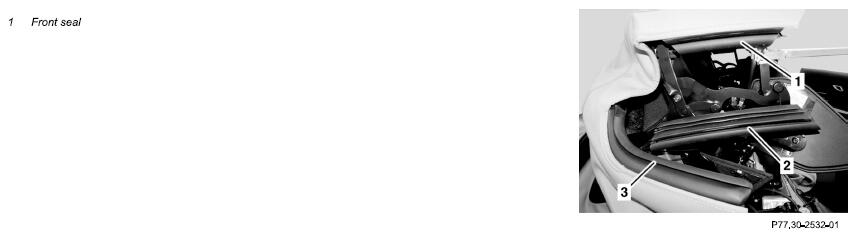

5	Mark precise installed position of front seal (1)
6	Unscrew bolts (9) and remove front seal (1) with rail	Restore previously marked installed position. The soft top may otherwise be leaky. Ensure that washers do not fall off.
7	Install in the reverse order
	Check
8	Check leak tightness of soft top

Fig 1: Identifying Support (230 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Support (231 589 02 63 00)

Courtesy of MERCEDES-BENZ USA
