Bring Soft Top To Intermediate Position And Secure - AR77.30-P-1030-01RGR

Model 190.4

Fig 1: Identifying Support (230 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Support (231 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Support (1) can, as required, be mounted on both sides of soft top (2).

1. Switch on ignition and move soft top (2) to required intermediate position by actuating soft top control switch.

   Have a second person hold soft top (2) in required intermediate position, because soft top (2) moves down toward rear automatically after a few seconds.

2. Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).

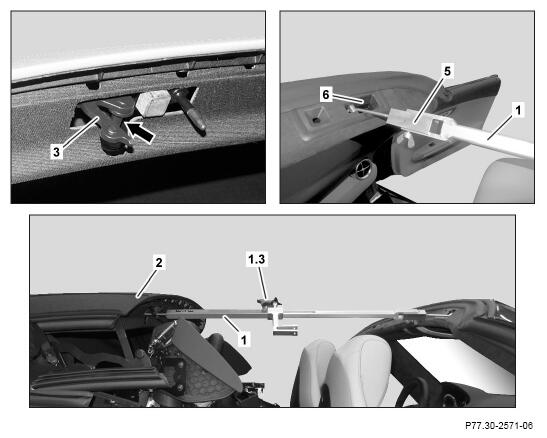

3. Open clamping screw (1.3).

   Courtesy of MERCEDES-BENZ USA

4. Attach support (5) in front mount (6).
5. Attach support (1) on lock outer part (3) (arrow).
6. Install support (5) on front part of support (1).

   Length of support (1) can be changed for this purpose.

7. Bolt clamping screw (1.3) tight.

Intermediate position of soft top (2) is now secured.
