Connect/Disconnect Test Valve Block At Hydraulic Unit - AR77.37-P-4205RGR

Model 190.4

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Connect/disconnect
1	Prepare test valve block (1)		AR77.37-P-4205-01RGR
		Tester	Fig 4
		Adapter	Fig 3
		Valve block	Fig 1
		Record plug	Fig 2
2	Remove soft top control hydraulic unit (A7/5) from soft top crossmember and set down on a dry cloth in vehicle interior with connected hydraulic lines (11, 12, 13, 14) and connected electric lines	Protect vehicle interior against leaking hydraulic fluid. Otherwise, the vehicle interior can be contaminated by leaking hydraulic fluid. Leaked hydraulic fluid causes an unpleasant odor that is very difficult to eliminate.	AR77.37-P-3500RGR
3	Remove cable tie (3)	Cable ties must be replaced.
4	Remove connection plate (4)	Do not remove hydraulic lines (11, 12, 13, 14) from soft top control hydraulic unit (A7/5).
		Bolt, connection plate to hydraulic unit	*BA77.37-P-1002-01A
5	Open shutoff valves (9) on test valve block (1)	Valve block	Fig 1

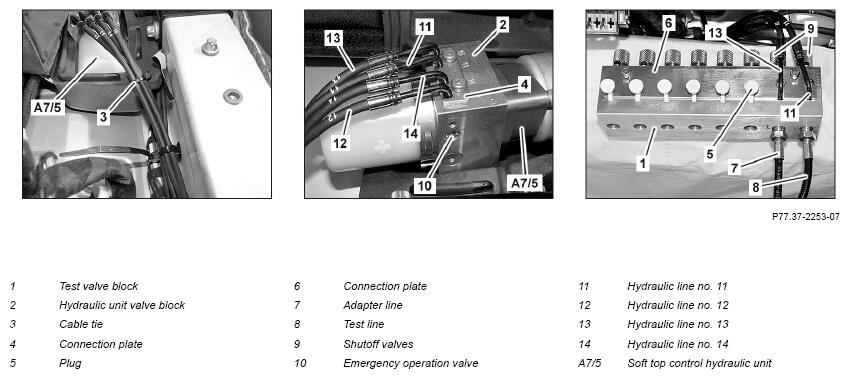

6	Remove corresponding stop plugs (5) from test valve block (1) and remove hydraulic line no. 11 (11) and hydraulic line no. 13 (13) or hydraulic line no. 12 (12) and hydraulic line no. 14 (14) from hydraulic unit valve block (2) and connect to test valve block (1)		AR77.37-P-4205-02RGR
		Only remove stop plugs (5) from test valve block (1) directly before reconnection and immediately close connections in hydraulic unit valve block (2). Otherwise, the vehicle interior can be soiled with hydraulic fluid that runs out. Do not pull hydraulic lines (11, 12, 13, 14) too hard. The hydraulic lines (11, 12, 13, 14) can otherwise be damaged. The hydraulic lines (11, 12, 13, 14) must be individually reconnected. Adapter	Fig 3
		Tester	Fig 4
		Record plug	Fig 2
		Valve block	Fig 1
7	Fix connection plate (6) into place on test valve block (1)	Ensure that connection plate (6) is seated correctly. Otherwise the hydraulic lines (11, 12, 13, 14) can detach during the pressure test and hydraulic fluid may spray out of the connections.
		Valve block	Fig 1
8	Connect adapter with connected test line (8) to corresponding connection of hydraulic unit valve block (2)		AR77.37-P-4205-02RQ
		Tester	Fig 4
		Valve block	Fig 1
		Adapter	Fig 3
9		Connect adapter line (7) to corresponding connection of hydraulic unit valve block (2) Observe line coding on hydraulic unit valve block (2).	AR77.37-P-4205-02RQ
		Adapter	Fig 3
		Tester	Fig 4
		Valve block	Fig 1
10	Install connection plate (4)	Ensure that connection plate (4) is seated correctly. Otherwise, test line (8) and adapter line (7) can detach during pressure test and hydraulic fluid can spray out of connections.
		Bolt, connection plate to hydraulic unit	*BA77.37-P-1002-01A
11	Turn soft top control hydraulic unit (A7/5) to installation position and fix this in position using a suitable tape	To perform the pressure test, the soft top control hydraulic unit (A7/5) must be in the installation position.
12	Close emergency operation valve (10)	The pressure test can now be started.
		Emergency operation valve at hydraulic unit	*BA77.37-P-1001-01A
13	Disconnect in reverse order
14	Bleed hydraulic system by opening and closing the soft top multiple times
