Connection Scheme For Pressure Test - AR77.37-P-4205-02RGR
Model 190.4

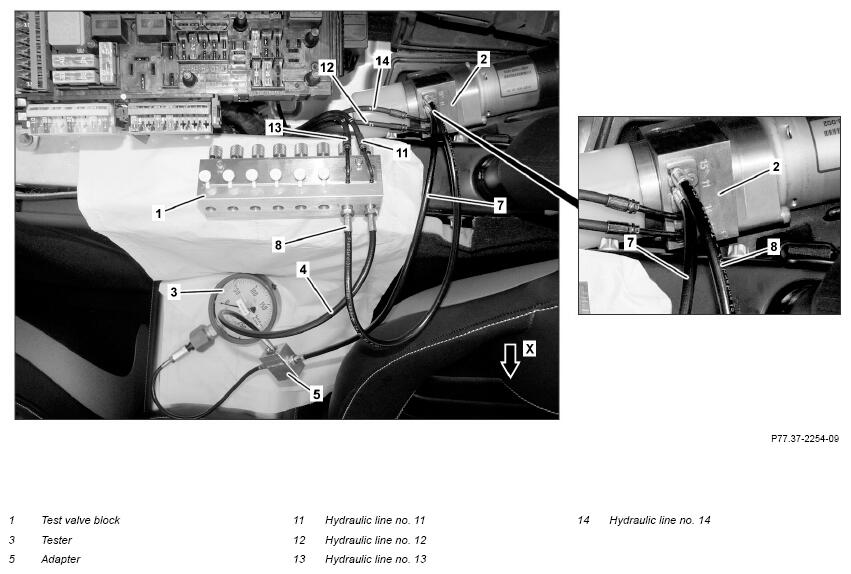

Connection schematic shown for testing right hydraulic cylinder for soft top actuation
The
test equipment (3),
adapter (5) and test
valve block (1) are already connected with the corresponding lines to each other during the preparation of the
test valve block (1).
To test the left hydraulic cylinder for soft top operation, hydraulic line no. 12 (12) instead of hydraulic line no. 11 (11) and hydraulic line no. 14 (14) instead of hydraulic line no. 13 (13) are connected to
test valve block (1).
Assignment of hydraulic lines (11, 12, 13, 14) to corresponding hydraulic cylinders:
The numbers of the hydraulic lines (11, 12, 13, 14) are printed on the outer mantle.
- Hydraulic line no. 11 (11):
Left cylinder for soft top operation, piston side
- Hydraulic line no. 12 (12):
Left cylinder for soft top operation, rod side
- Hydraulic line no. 13 (13):
Right cylinder for soft top operation, piston side
- Hydraulic line no. 14 (14):
Right cylinder for soft top operation, rod side
