Remove/Install Paneling On Rear Center Section - AR68.30-P-4785RG

Model 190

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Open luggage compartment lid

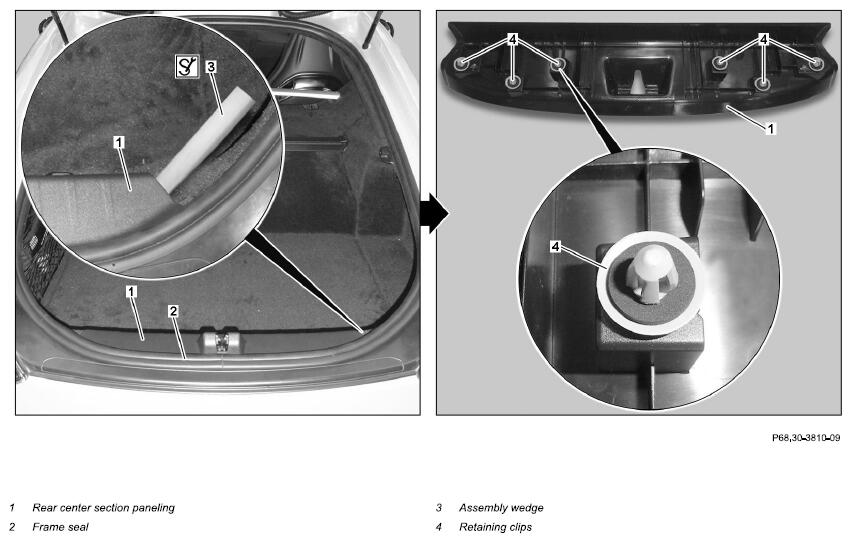

2	Unclip rear center section paneling (1) from retaining clips (4) with assembly wedge (3)	Mounting wedge	Fig 1
3	Remove rear center section paneling (1)	Ensure that rear center section paneling (1) is seated correctly. Lay sealing frame (2) over rear center section paneling (1).
4	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
