Remove/Install Right Front Floor Covering - AR68.20-P-2070RG

Model 190

Courtesy of MERCEDES-BENZ USA

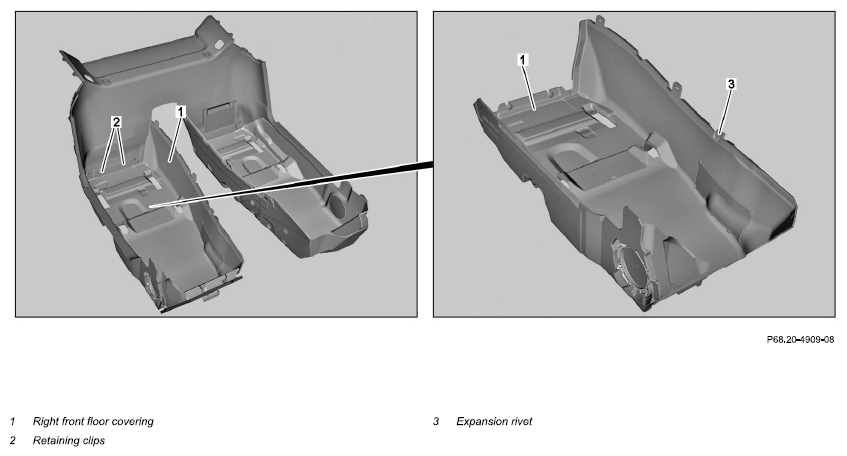

Shown on right front floor covering

	Remove/install
1	Remove right foot mat
2	Remove right front seat		AR91.10-P-1000RG
3	Remove right-hand side entrance strip		AR68.30-P-4100RG
4	Remove cover on center console		AR68.20-P-2350RG
5	Remove cover from side of center console		AR68.20-P-2355RG
6	Remove retaining clip (2) from right front floor covering (1)
7	Remove expansion rivet (3) from right front floor covering (1)
8	Lift right front floor covering (1) at rear and remove from vehicle	Guide supply lines on front seats along cutout.
9	Install in the reverse order	Ensure that right front floor covering (1) is seated correctly.
