Remove/Install Sun Visor - AR68.60-P-5480RG

Model 190

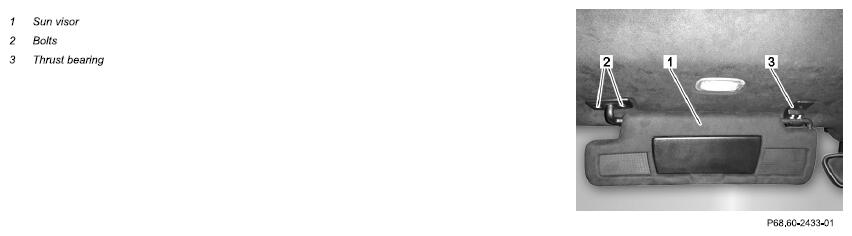

G16682508Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Press sun visor (1) out of counter bearing (3) toward rear
2 Unscrew bolts (2) and remove sun visor (1)
3 Install in the reverse order
