Remove/Install Center Roof Trim - AR68.30-P-7609RG
Model 190.3 With Code 397 (Carbon roof)
Model 190.3 With Code M032 (Black Series version)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove A-pillar paneling | AR68.30-P-4050RG | |
| 2 | Install C-pillar paneling | AR68.30-P-4490RG | |
| 3 | Remove rear headliner | AR68.30-P-7608RG | |

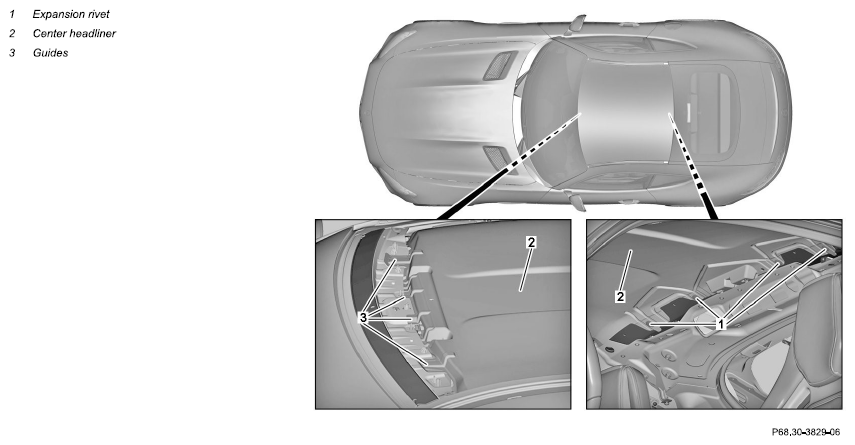

| 4 | Remove expansion rivet (1) | ||
| 5 | Remove center headliner (2) from guides (3) | ||
| 6 | Remove center headliner (2) from vehicle | Otherwise the vehicle interior or the center headliner (2) can be damaged. |
|
| 7 | Install in the reverse order |
