Remove/Install Rear Roof Paneling - AR68.30-P-7608RG

Model 190.3

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)

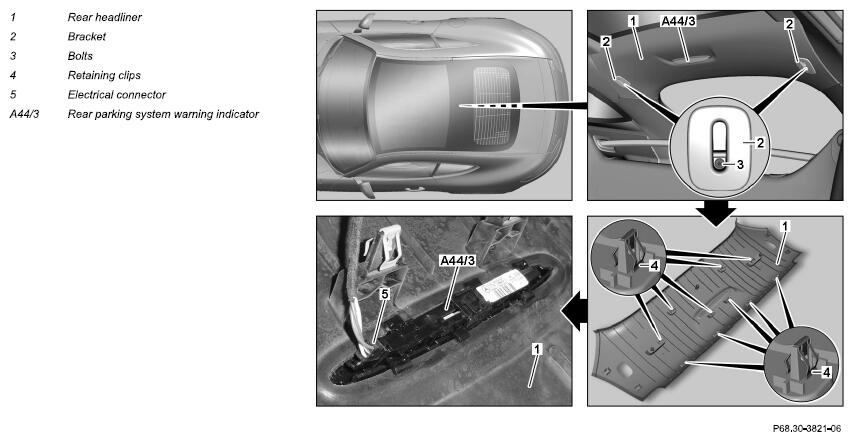

2	Unscrew bolts (3) from bracket (2)
3	Unclip rear headliner (1) from retaining clips (4) downward	Carefully unclip rear headliner (1). The subharness of the rear parking system warning display (A44/3) could otherwise be damaged.
4	Release and disconnect electrical connector (5) of rear parking system warning display (A44/3)
5	Install in the reverse order
