Remove/Install Rear Spoiler - AR88.30-P-0500RGM

Model 190

with code M030 (GT R version)

except code M032 (Black Series version)

Courtesy of MERCEDES-BENZ USA

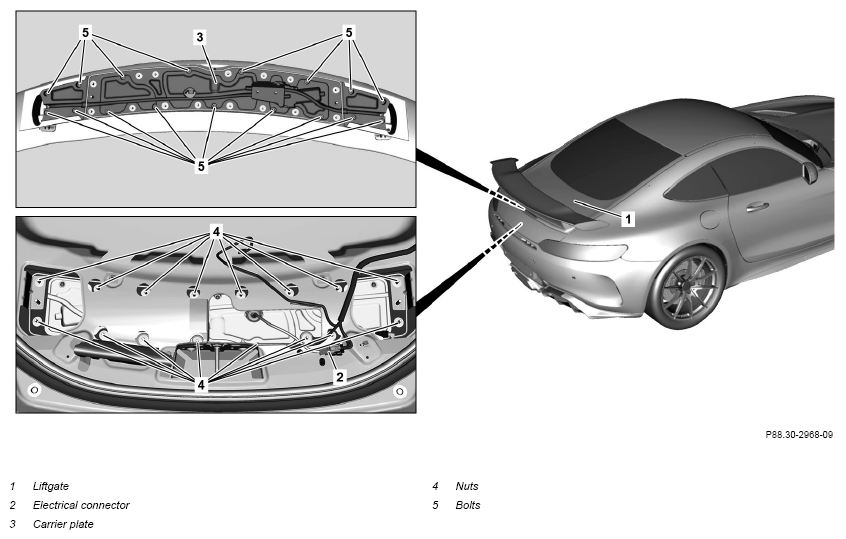

Shown on model 190.3 with code M030 (GT R version)

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2.1	Remove door trim of the liftgate (1).	Model 190.3 with code M030 (GT R version) except code M032 (Black Series version)	AR72.20-P-6445RG
2.2	Remove trunk lid trim.	Model 190.4 with code M030 (GT R version) except code M032 (Black Series version)
			AR88.50-P-0006RG
3	Release and disconnect electrical connector (2) of lamp unit reversing lamp and rear fog lamp (E7).
4	Release and disconnect electrical connector of center brake lamp (E21x1).	Model 190.4 with code M030 (GT R version) except code M032 (Black Series version)
5	Remove nuts (4).
6	Remove rear spoiler with carrier plate (3).
7	Remove bolts (5) and disconnect rear spoiler from carrier plate (3).	When replacing or removing lamp unit reversing lamp and rear fog lamp (E7).
8	Clean sealing surface of tailgate (1) and/or trunk lid.	The sealing surface should be free of grease and dust. Leaktightness problems will otherwise occur.
		Cleaner	*BR00.45-Z-1025-04A
	Install
9	Attach rear spoiler to carrier plate (3) and screw in bolts (5).	When replacing or installing lamp unit reversing lamp and rear fog lamp (E7).
		Model 190.4 with code M030 (GT R version) except code M032 (Black Series version) Bolt, rear spoiler lower part to carrier plate	*BA88.50-P-1007-03B
		Model 190.3 with code M030 (GT R version) except code M032 (Black Series version) Bolt, rear spoiler lower part to carrier plate	*BA72.20-P-1011-02O
10	Install rear spoiler with carrier plate (3).
11	Tighten nuts (4) lightly by hand.
12	Adjust gap dimensions of rear spoiler.	Do not yet install door trim of tailgate (1) and/or trunk lid trim.	AR88.30-P-0510RG
13	Screw in nuts (4).	Model 190.4 with code M030 (GT R version) except code M032 (Black Series version) Nut, carrier plate to tailgate	*BA88.50-P-1008-03B
		Model 190.3 with code M030 (GT R version) except code M032 (Black Series version) Nut, carrier plate to tailgate	*BA72.20-P-1012-02O
14	Connect and lock electrical connector (2) of lamp unit reversing lamp and rear fog lamp (E7).
15	Connect and lock electrical connector of center brake lamp (E21x1).	Model 190.4 with code M030 (GT R version) except code M032 (Black Series version)
16.1	Install door trim of tailgate (1).	Model 190.3 with code M030 (GT R version) except code M032 (Black Series version)	AR72.20-P-6445RG
16.2	Install trunk lid trim.	Model 190.4 with code M030 (GT R version) except code M032 (Black Series version)	AR88.50-P-0006RG
	Check
17	Perform function test of lamp unit reversing lamp and rear fog lamp (E7).
18	Perform function test of center brake lamp (E21x1).	Model 190.4 with code M030 (GT R version) except code M032 (Black Series version)
