Remove/Install Liftgate Door Panel - AR72.20-P-6445RG
Model 190.3
Shown on model 190.3 other than code M032 (black series version)

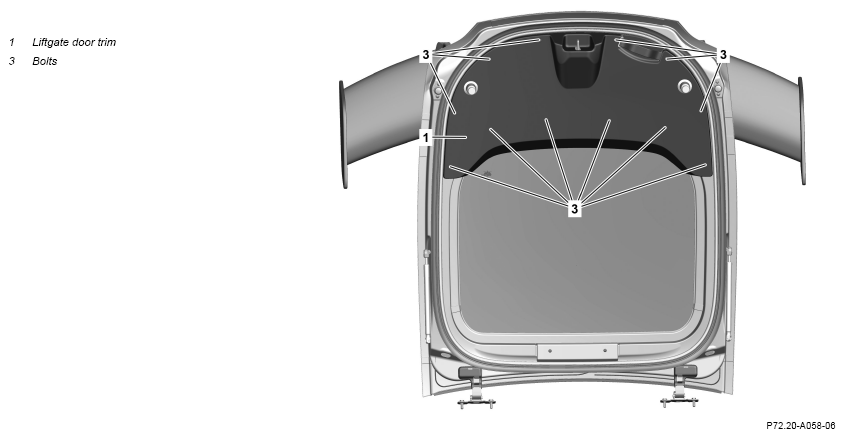

Shown on model 190.3 with code M032 (black series version)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Unclip cover (2) from door trim of tailgate (1). | Model 190.3 except code M032 (Black Series version) | |

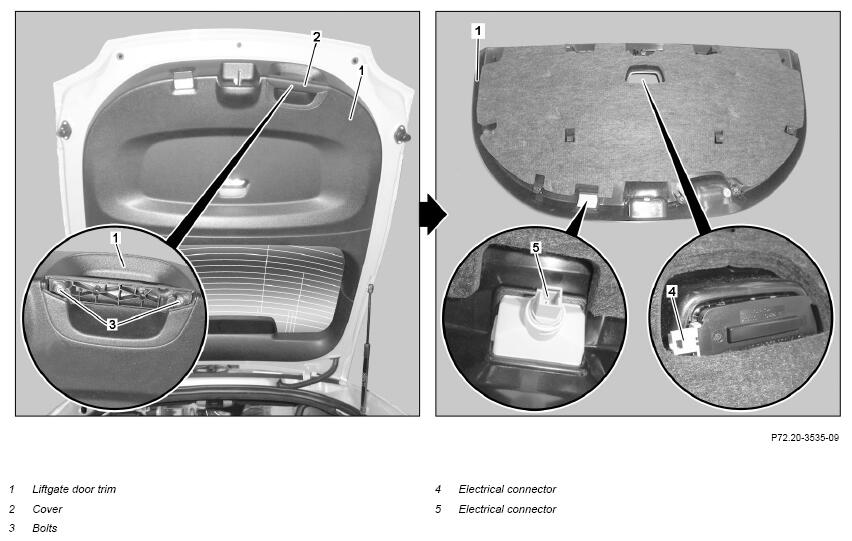

| Fig 1 | |||
| 3 | Remove screw/bolts (3). | ||
| 4 | Unclip door trim of tailgate (1) and take off far enough that the electrical connectors (4, 5) are accessible. | Model 190.3 except code M032 (Black Series version) This will result in damage to the electric lines and can impair their function. |
|
| 5 | Release and disconnect electrical connectors (4, 5). | Model 190.3 except code M032 (Black Series version) | |
| 6 | Remove door trim of tailgate (1). | ||
| 7 | Install in the reverse order. |
