Remove/Install Trunk Lid Trim - AR88.50-P-0006RG
Model 190.4
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

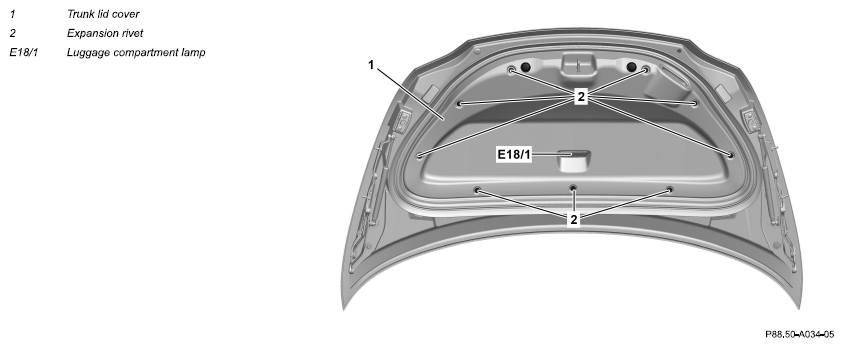

| 1 | Remove expansion rivets (2) at trunk lid trim (1). | Fig 1 | |
| 2 | Release and disconnect electrical connector of trunk lamp (E18/1). | ||
| 3 | Remove trunk lid trim (1). | ||
| 4 | Install in the reverse order. |
