Adjust Rear Spoiler - AR88.30-P-0510RG

Model 190

except code M032 (Black Series version)

Courtesy of MERCEDES-BENZ USA

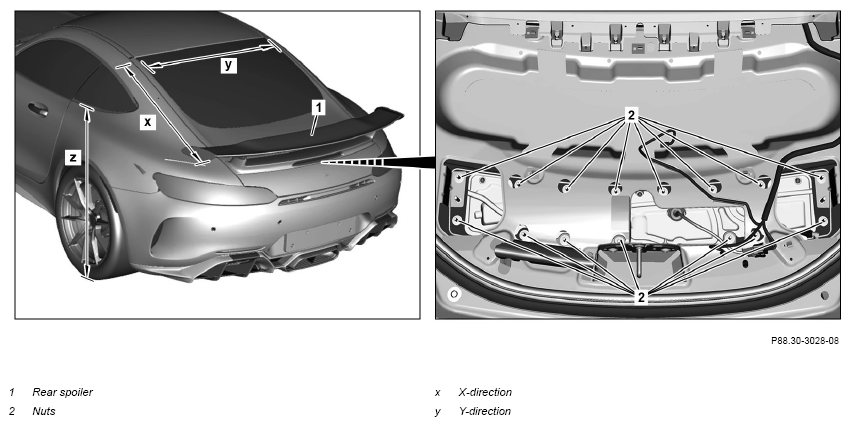

Shown on model 190.3 with code M030 (GT R version)

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS	Model 190.3 with code 871 (Sensor system for trunk lid opening/closing) except code M032 (Black Series version)	AH80.61-P-0001-01A
	Remove
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2.1	Remove tailgate door trim.	Model 190.3 except code M032 (Black Series version)	AR72.20-P-6445RG
2.2	Remove trunk lid trim.	Model 190.4 except code M032 (Black Series version)	AR88.50-P-0006RG
	Check
3	Check alignment of rear spoiler (1) with trunk lid.	Model 190.3 except code M032 (Black Series version) If gap dimensions in Y-direction (y) lie outside the tolerance: ↓ Adjust trunk lid.
		Model 190.3 except code M032 (Black Series version)	AR72.20-P-0002RG
4	Check gap dimensions of trunk lid to side wall.	Model 190.3 except code M032 (Black Series version) Model 190.3 except code M032 (Black Series version)	AR60.00-P-0700-01RG
		Gap dimension, side wall paneling to tailgate/trunk lid/rear spoiler	*BE60.00-P-1020-01EA
		Gap dimension, tailgate/trunk lid to rear lamp	*BE60.00-P-1028-01EA
		Feeler gauge	Fig 1
	Adjust rear spoiler (1)
5	Release nuts (2).
6.1	Adjust gap dimensions in Y-direction (y).	Model 190.3 except code M032 (Black Series version)	AR60.00-P-0700-01RG
		Gap dimension, side wall paneling to tailgate/trunk lid/rear spoiler	*BE60.00-P-1020-01EA
		Feeler gauge	Fig 1
6.2	Adjust gap dimensions in X-direction and Y-direction (x, y).	Model 190.4 except code M032 (Black Series version)
			AR60.00-P-0700-01RG
		Gap dimension, tailgate/trunk lid to rear spoiler	*BE60.00-P-1024-01EA
		Feeler gauge	Fig 1
7	Slightly tighten nuts (2) by hand.
	Check
8	Check all affected gap dimensions.		AR60.00-P-0700-01RG
		Gap dimension, side wall paneling to tailgate/trunk lid/rear spoiler	*BE60.00-P-1020-01EA
		Gap dimension, tailgate/trunk lid to rear spoiler	*BE60.00-P-1024-01EA
		Feeler gauge	Fig 1
	Install
9	Tighten nuts (2).	Model 190.4 except code M032 (Black Series version) Nut, spoiler kinematics to trunk lid	*BA88.50-P-1004-03B
		Model 190.3 with code M030 (GT R version) except code M032 (Black Series version) Nut, carrier plate to tailgate	*BA72.20-P-1012-02O
10.1	Install trunk lid door trim.	Model 190.3 except code M032 (Black Series version)	AR72.20-P-6445RG
10.2	Install trunk lid trim.	Model 190.4 except code M032 (Black Series version)	AR88.50-P-0006RG

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
