Front End Assembly Together With Reinforcement Complete Replacement - Ar62.30-P-1570RGB
Model 190
with code M032 (Black Series version)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Open engine hood and position vertically. | AR88.40-P-1000RG | |
| 2 | Remove front bumper. | AR88.20-P-2000RG | |
| 3 | Remove the front left and right fender. | AR88.10-P-1005RG | |
| 4 | Remove the left and right lamp units. | AR82.10-P-4730RG | |
| 5 | Remove hood catch lower parts. | AR88.40-P-3200RG | |

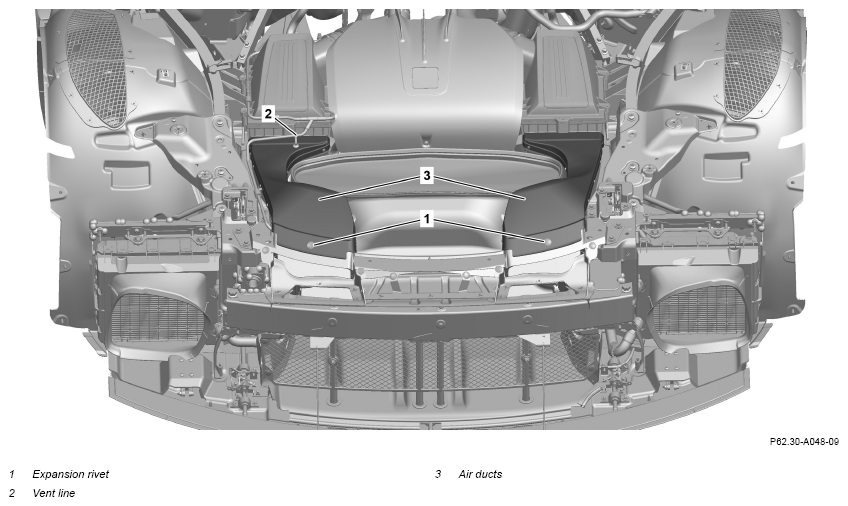

| 6 | Unclip the bleed line (2) from the air duct (3) on the right side of vehicle and place to one side. | Fig 1 | |

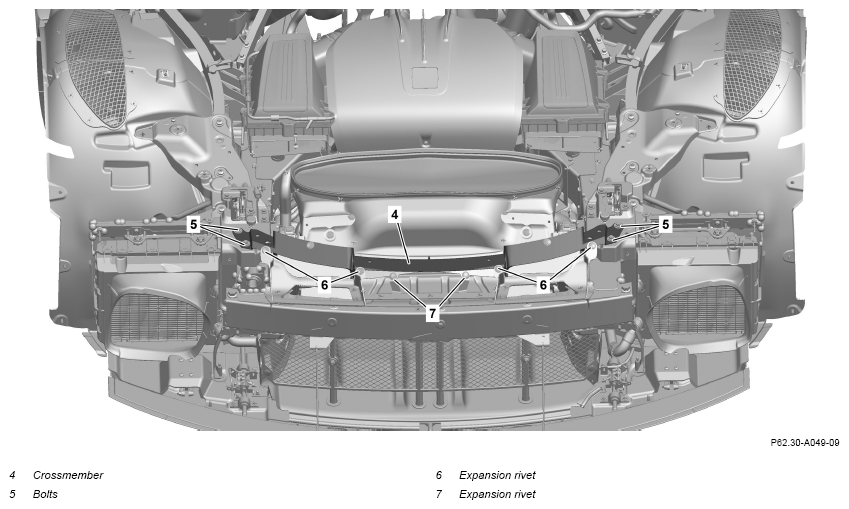

| 7 | Remove expansion rivets (6, 7). | Fig 1 | |
| 8 | Remove screws (5) and crossmember (4). | *BA62.30-P-1005-01I | |
| 9 | Remove expansion rivets (1), guide air ducts (3) out and remove. | Fig 1 | |

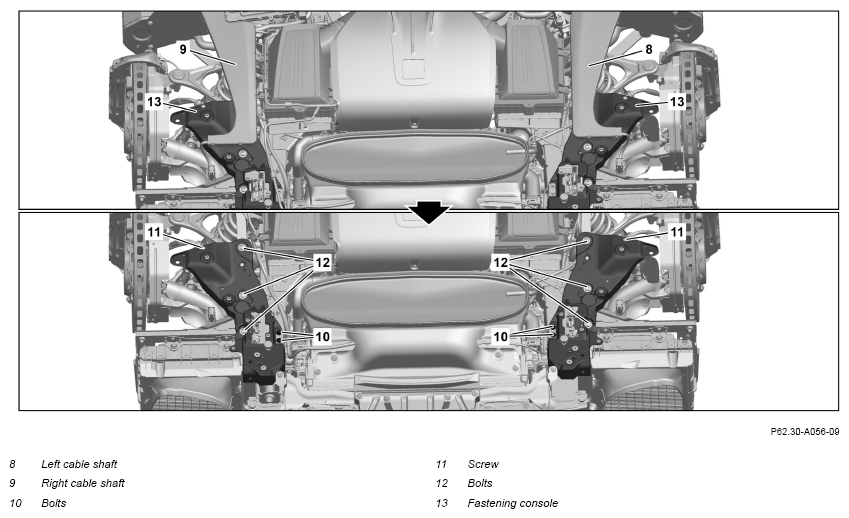

| 10 | Detach left cable shaft (8) and right cable shaft (9). | ||
| 11 | Remove screws (10). | *BA62.30-P-1004-02N | |
| 12 | Remove screws (11). | ||
| 13 | Remove screws (12). | *BA62.30-P-1002-01I | |
| 14 | Remove mounting supports (13). | ||
| 15 | Install in the reverse order. |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 190 | ||
|---|---|---|---|---|
| BA62.30-P-1002-01I | Bolt, retaining plate to body | M8 | Nm | 9 |
FRONT END WITH FRONT REINFORCEMENT
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA62.30-P-1004-02N | Bolt, catch hook reinforcement | Nm | 8 |
CROSS MEMBER AND FRONT REINFORCEMENT
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA62.30-P-1005-01I | Screw, crossmember to top front mounting support. | Nm | 10 |
