Remove/Install Engine Hood Catch - AR88.40-P-3200RG

Model 190

Courtesy of MERCEDES-BENZ USA

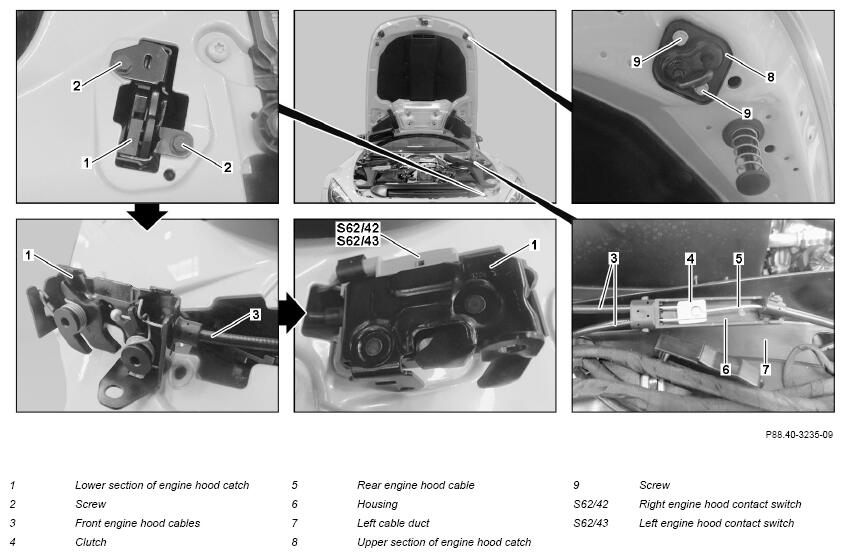

Shown on model 190 without code M032 (Black Series version)

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Open engine hood and position vertically.		AR88.40-P-1000RG
2	Open left cable duct (7) and open up flap of housing (6).
3	Unhook rear hood cable (5) from coupling (4).
4	Unscrew screws (2) from left and right hood catch lower part (1).	Bolt, engine hood catch lower section to radiator crossmember	*BA88.40-P-1007-01O
5	Remove hood catch lower part (1) from radiator crossmember and unhook corresponding front hood cable (3).
6.1	Unclip left hood contact switch (64/43) or right hood contact switch (64/42) from hood catch lower part (1) and remove.	Model 190 except code M032 (Black Series version)
6.2	Release and disconnect electrical connector of left hood contact switch (64/43) or right hood contact switch (64/42) from hood catch lower part (1).	Model 190 with code M032 (Black Series version)
7	Unscrew screws (9) from left and right hood catch upper part (8) and remove hood catch upper part (8).	Bolt, engine hood catch upper section to engine hood	*BA88.40-P-1006-01O
8	Install in the reverse order.
	Check
9	Check adjustment of hood, adjust if necessary.		AR60.00-P-0700-01RG
		Gap dimension, engine hood to bumper	*BE60.00-P-1001-01EA
		Gap dimension, fender to engine hood	*BE60.00-P-1002-01EA
		Feeler gauge	Fig 1
10	Perform function test of hood catches.

Fig 1: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
