Remove/Install Water Collector - AR83.25-P-1402GQ

Model 166

Model 292

Shown on Model 166.0 except code 874 (MAGIC VISION CONTROL, heated)

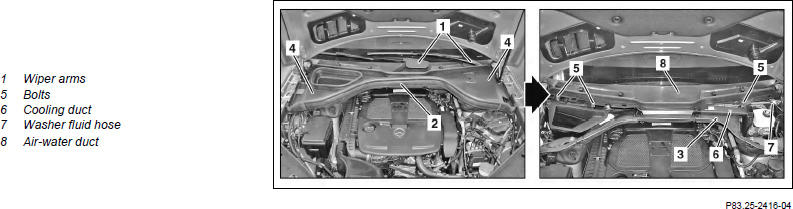

Fig 1: Water Collector Components Location - Model 166 (Shown On Model 166.0 Except Code 874)

Courtesy of MERCEDES-BENZ USA

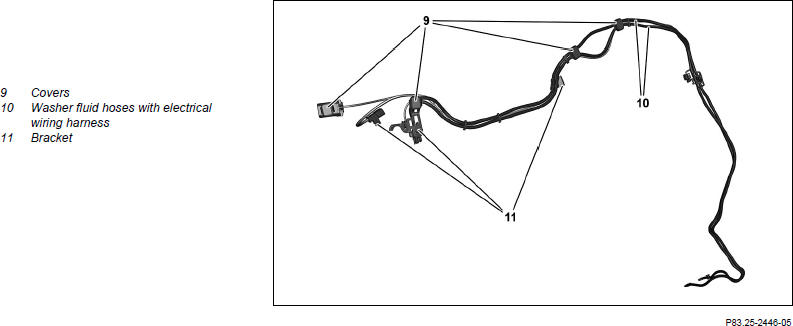

Shown on washer fluid hose of Model 166 with code 874 (MAGIC VISION CONTROL, heated)

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Remove/install
1	Remove wiper arms (1)	Model 166 as of 8/25/11, 292 with code 874 (MAGIC VISION CONTROL, heated)	AR82.30-P-6100GQA
		Model 166 as of 8/25/11, 292 except code 874 (MAGIC VISION CONTROL, heated)	AR82.30-P-6100GQB
		Model 166 up to 8/24/11	AR82.30-P-6100GZ
2	Remove water deflector at left and right		AR88.85-P-2100RT
3	UnScrew bolts (5) and remove cooling duct (6)
4.1	Release Air/water duct (8) far enough from the windshield to gain access to the washer fluid hose (7)	Model 166, 292 except code 874 (MAGIC VISION CONTROL, heated) Coat upper edge of Air/water duct (8) and the lower edge of the windshield with lubricant.
		Lubricant, rubber assembly 1 I	*BR00.45-Z-1010-06A
4.2	Lift up Air/water duct (8) far enough until the washer fluid hose with electrical wiring harness (10) is accessible	Model 166, 292 with code 874 (MAGIC VISION CONTROL, heated)
5.1	Unclip covers (9), remove holders (11) from Air/water duct (8) and place the washer fluid hose with electrical wiring harness (10) to one side. Remove Air/water duct (8)	Model 166, 292 with code 874 (MAGIC VISION CONTROL, heated)
5.2	Remove washer fluid nozzles with washer fluid hose (7) from Air/water duct (8) and Air/water duct (8)	Model 166, 292 except code 874 (MAGIC VISION CONTROL, heated)
		Do not detach washer fluid hose (7) from washer fluid nozzles. Otherwise, the washer fluid nozzles break off. The washer fluid nozzles and washer fluid hose (7) form a unit up to the washer fluid reservoir.
6	Install in the reverse order
