Remove/Install Wiper Arm - AR82.30-P-6100GQA
Model 166 as of 8/25/11, 292 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition, move left wiper arm (11) and right wiper arm (13) to park position | ||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Open engine hood and raise to vertical position | Model 166 as of 8/25/11 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system) | AR88.40-P-1000GQ |

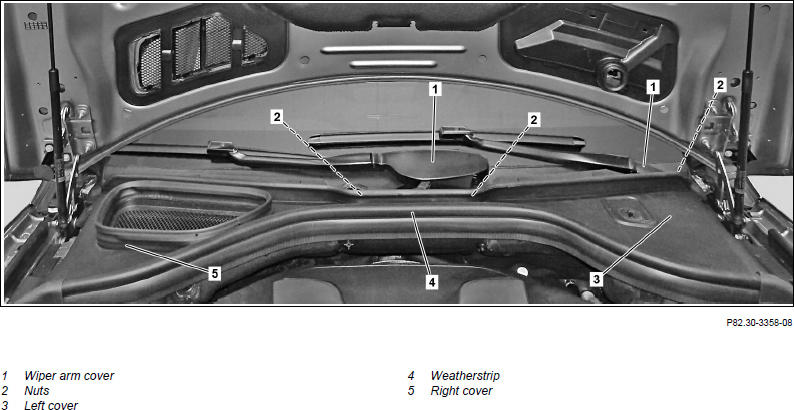

| 4 | Detach weatherstrip (4) | ||

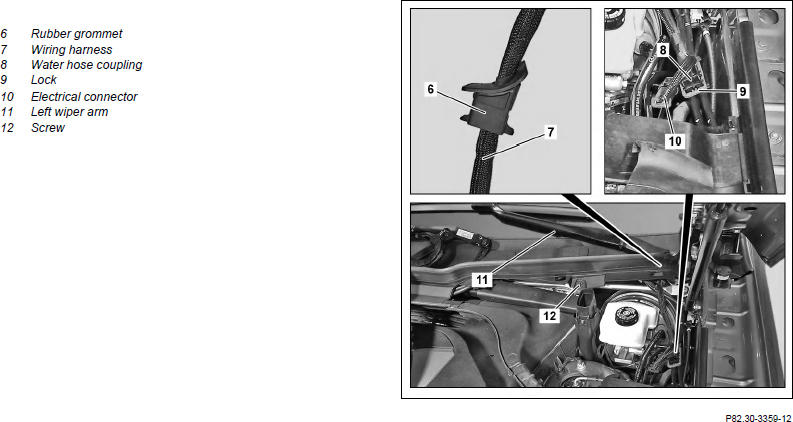

| Left wiper arm (11) | |||
| 5 | Remove left cover (3) | ||
| 6 | Remove wiper arm cover (1) from left wiper arm (11) | ||
| 7 | Disconnect electrical connector (10) from left wiper arm (11) | ||
| 8 | Open lock (9) and detach water hose coupling (8) from left wiper arm (11) | ||
| 9 | Remove screw/bolt (12) | ||
| 10 | Remove cover over the nut (2) on left wiper arm (11) | ||
| 11 | Unscrew nut (2) on left wiper arm (11) | *BA82.30-P-1002-01J | |
| 12 | Remove left wiper arm (11) | Fig 1 | |
| Fig 2 | |||
| 13 | Unclip water deflector on left | AR88.85-P-2100RT | |
| 14 | Carefully lift up air/water duct (17) until rubber grommet (6) is accessible | ||
| 15 | Remove wiring harness (7) with rubber grommet (6) | ||
| 16 | Remove left wiper arm (11) | ||

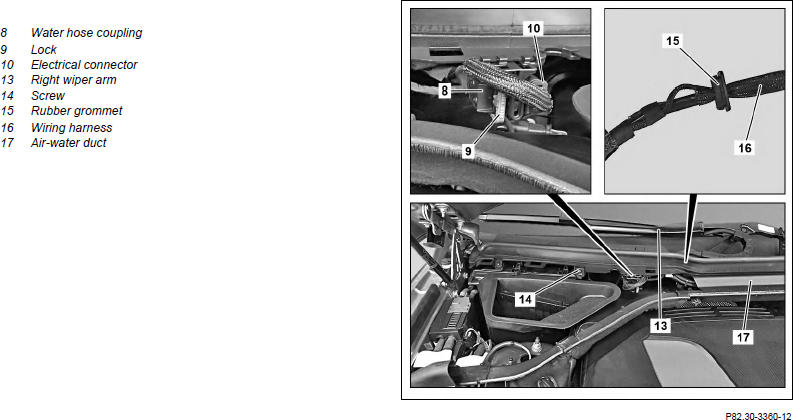

| Right wiper arm (13) | |||
| 17 | Remove right cover (5) | ||
| 18 | Remove electrical connector (10) of right wiper arm (13) from holder and disconnect | ||
| 19 | Open lock (9) and detach water hose coupling (8) from right wiper arm (13) | ||
| 20 | Remove screw/bolt (14) | ||
| 21 | Remove covers from the nuts (2) on right wiper arm (13) | ||
| 22 | Unscrew nuts (2) on right wiper arm (13) | *BA82.30-P-1002-01J | |
| 23 | Remove right wiper arm (13) | Fig 1 | |
| Fig 2 | |||
| 24 | Carefully lift up air/water duct (17) until rubber grommet (15) is accessible | ||
| 25 | Remove wiring harness (16) with rubber grommet (15) | ||
| 26 | Remove right wiper arm (13) | ||
| 27 | Install in the reverse order |
WINDSHIELD WIPER
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA82.30-P-1002-01J | Nut on wiper motor shaft | Nm | 32 | 32 |
