Remove/Install Water Deflector - AR88.85-P-2100RT

MODEL 166, 251, 292

Shown on model 251

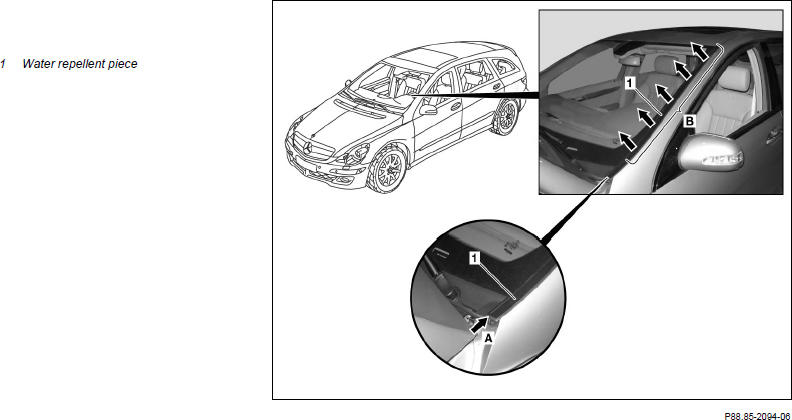

Fig 1: Water Deflector Components Location - Model 166 (Shown On Model 251)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Open engine hood and move to vertical position.	MODEL 251	AR88.40-P-1000RT
		MODEL 166	AR88.40-P-1000GQ
2	Lift wind deflector (1) at front and unclip	Mounting wedge	Fig 2
3	Unclip wind deflector (1) from front toward rear and remove	Mounting wedge	Fig 2
	Install
4	Fit water deflector (1) and press into retaining clips from rear toward front	Press onto water deflector (1) only in area of retaining clips. Otherwise damage may occur.
5	Close engine hood

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
