Overview Of System Components, Telematics - GF82.85-P-9999GN
Model 166 as of model year 2016
Model 292

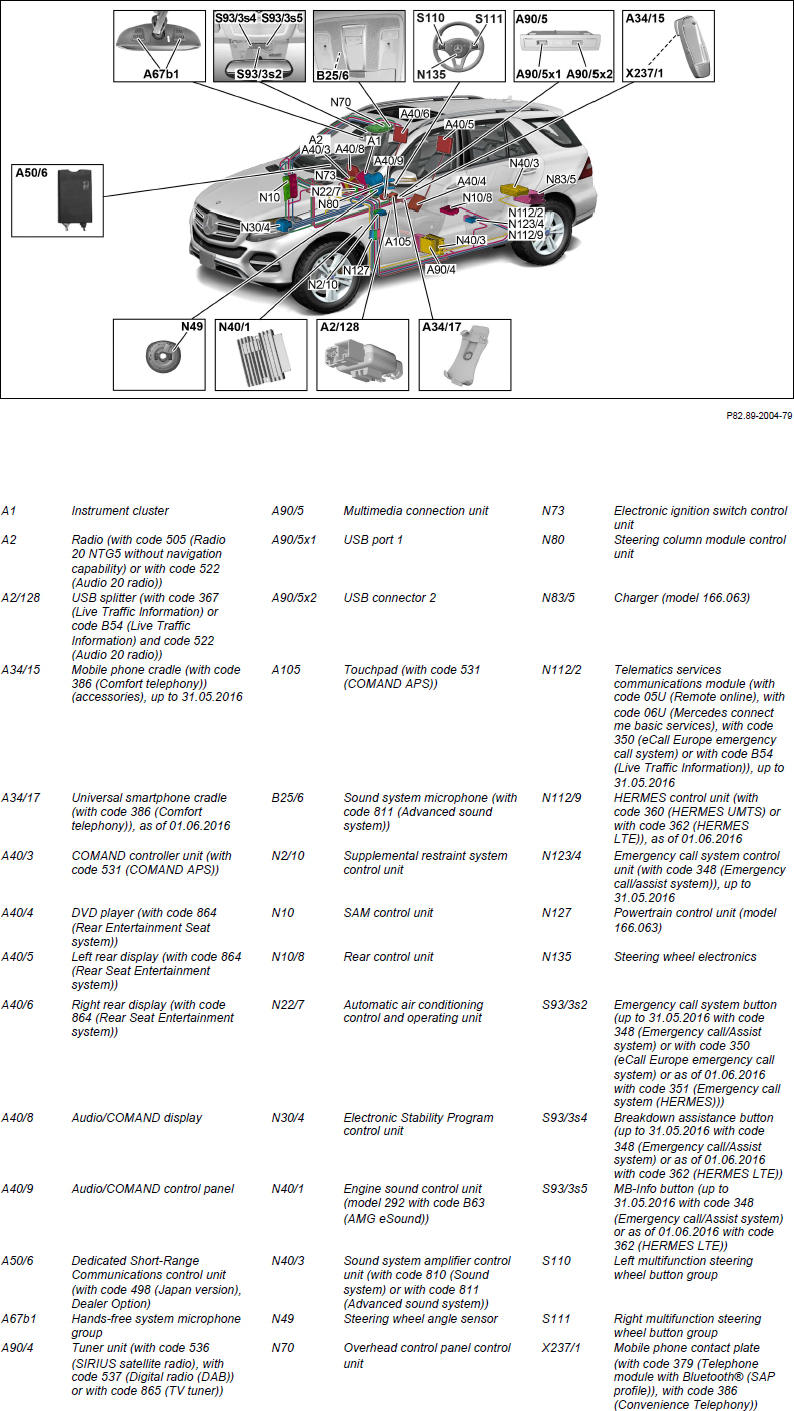

Shown on model 166.0 (without antenna system and speaker system)
Not shown in detail: Control elements on the Audio/COMAND control panel (e g Audio/COMAND controller (A40/9s11) "Back" button (A40/9s2)) and on the touchpad (e g "Back" button (A105s1) background audio button (A105s2) home and favorites button (A105s3)).

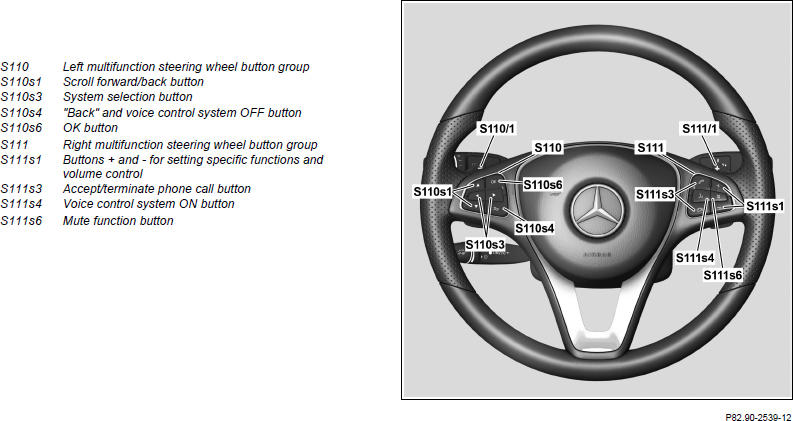

Detailed view of multifunction steering wheel button groups

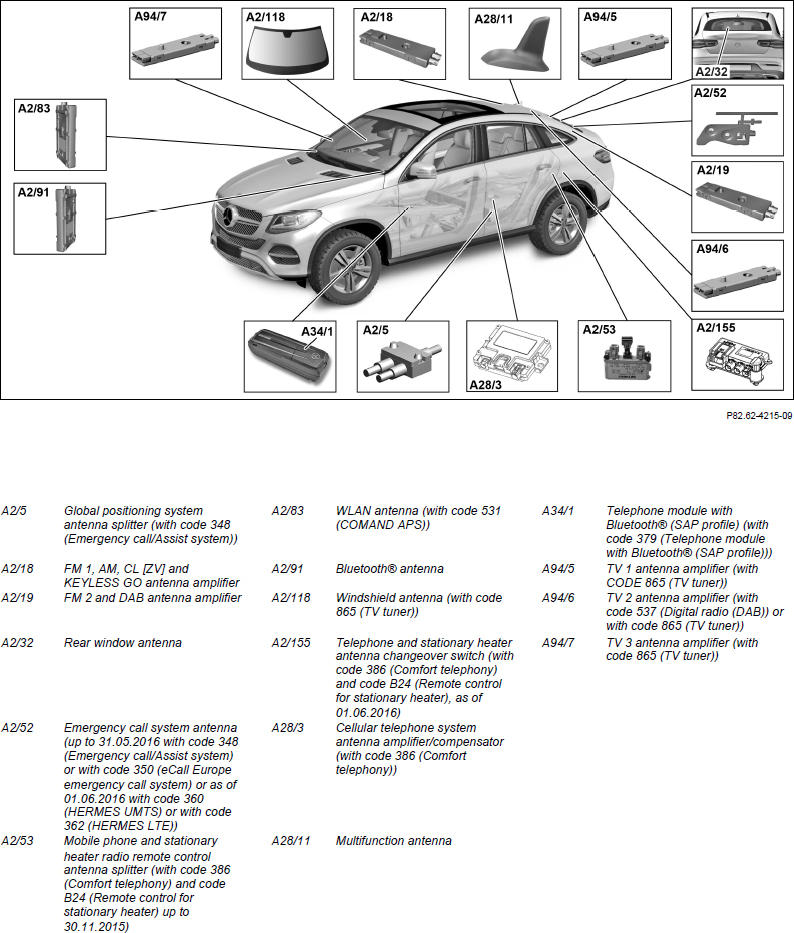

Telematics antenna system, model 292

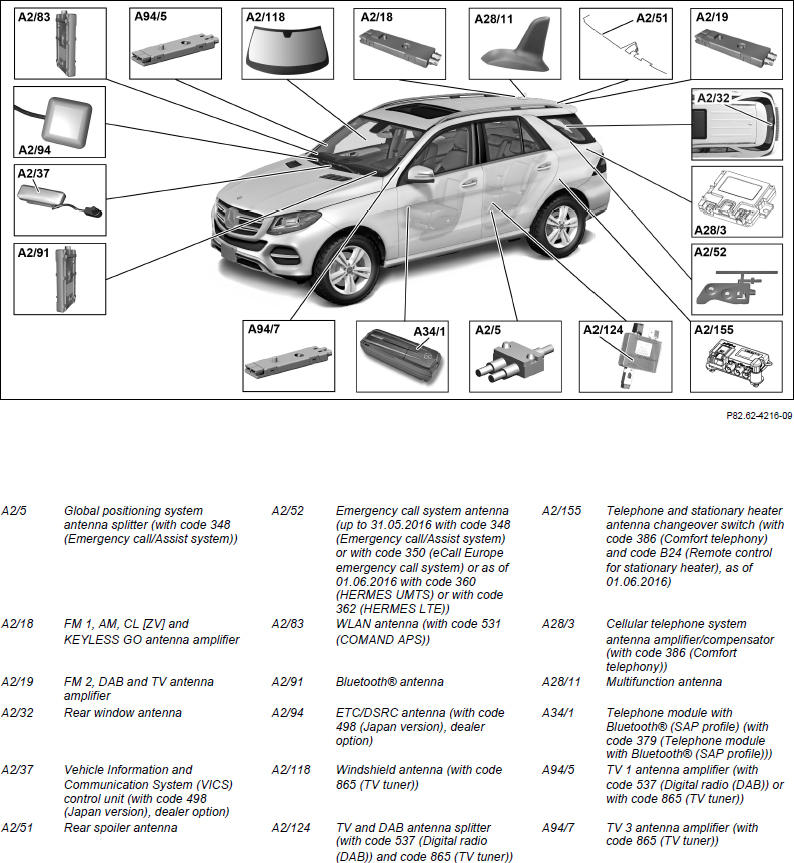

Telematics antenna system model 166, shown on model 166.0

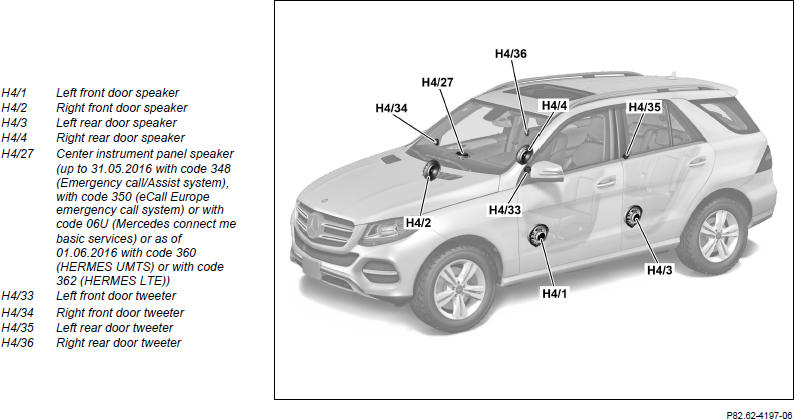

Speaker system without code 810 (Sound system) and without code 811 (Advanced sound system), shown on model 166.0

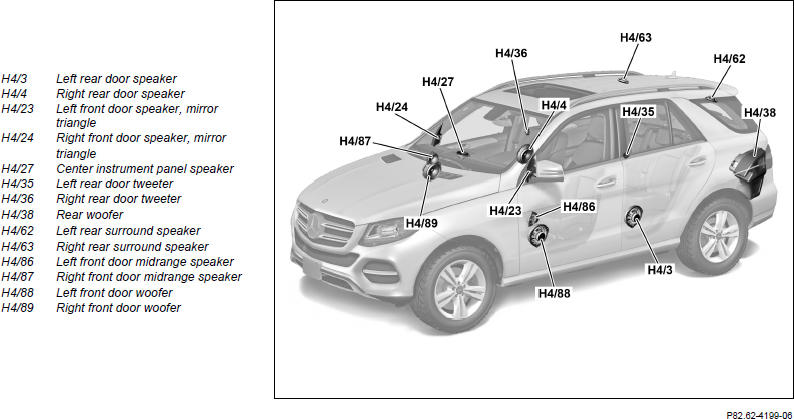

Speaker system with code 810 (Sound system), shown on model 166.0

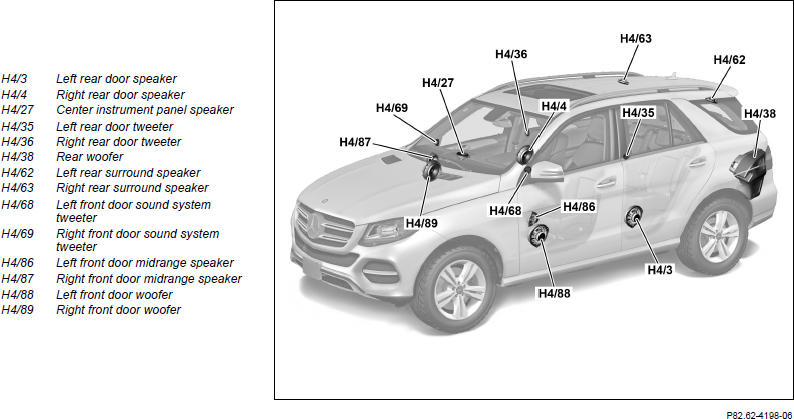

Speaker system with code 811 (Advanced sound system), shown on model 166.0
| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Component description for the radio | Model 166 as of model year 2016 with code 505 (Radio 20 NTG5, not navigation-enabled) Model 166 as of model year 2016 with code 522 (Audio 20 radio) Model 292 with code 505 (Radio 20 NTG5, not navigation-enabled) Model 292 with code 522 (Audio 20 radio) A2 |
GF82.60-P-3122GN | |
| Component description for COMAND controller unit | Model 166 as of model year 2016 with code 531 (COMAND APS) Model 292 with code 531 (COMAND APS) A40/3 |
GF82.85-P-3136GN | |
| Component description for rear entertainment DVD player | Model 166 as of model year 2016 with code 864 (Rear compartment entertainment package) Model 292 with code 864 (Rear compartment entertainment package) A40/4 |
GF82.90-P-4009GN | |
| Component description for rear display left/right | Model 166 as of model year 2016 with code 864 (Rear compartment entertainment package) Model 292 with code 864 (Rear compartment entertainment package) A40/5, A50/6 |
GF82.90-P-4020GN | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150GN | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GN | |
| Tuner unit, component description | Model 166 as of model year 2016 with code 536 (SIRIUS satellite radio) Model 166 as of model year 2016 with code 537 (Digital radio (DAB)) Model 166 as of model year 2016 with code 865 (TV tuner) Model 292 with code 536 (SIRIUS satellite radio) Model 292 with code 537 (Digital radio (DAB)) Model 292 with code 865 (TV tuner) A90/4 |
GF82.60-P-5015GN | |
| Touchpad, component description | Model 166 as of model year 2016 with code 531 (COMAND APS) Model 292 with code 531 (COMAND APS) A105 |
GF54.21-P-4511GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GN | |
| Component description for climate control control and operating unit | N22/7 | GF83.40-P-3002GN | |
| Component description for Electronic Stability Program control unit | Model 166 (except 166.063) as of model year 2016 Model 292 N30/4 |
GF42.45-P-5119GN | |
| Engine sound control unit, component description | Model 292 with code B63 (AMG eSound) N40/1 | GF54.21-P-0019GN | |
| Component description for sound system amplifier control unit | Model 166 as of model year 2016 with code 810 (Sound system) except code 811 (Advanced sound system) Model 292 with code 810 (Sound system) except code 811 (Advanced sound system) N40/3 |
GF82.62-P-5010GN | |
| Component description for sound system amplifier control unit | Model 166 as of model year 2016 with code 811 (Advanced sound system) except code 810 (Sound system) Model 292 with code 811 (Advanced sound system) except code 810 (Sound system) N40/3 |
GF82.62-P-5010GNA | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| High-voltage charger control unit, component description | Model 166 with engine 276.821 as of model year 2016 N83/5 | GF08.20-P-2000GRH | |
| Telematics services communications module, component description | Model 166 as of model year 2016 up to model year 2017 with code 05U (Remote Online) Model 166 as of model year 2016 up to model year 2017 with code 06U (Mercedes connect me standard services) Model 166 as of model year 2016 up to model year 2017 with code 350 (Ecall emergency call system, Europe) Model 166 as of model year 2016 up to model year 2017 with code B54 (Live Traffic Information) Model 292 up to model year 2017 with code 05U (Remote Online) Model 292 up to model year 2017 with code 06U (Mercedes connect me standard services) Model 292 up to model year 2017 with code 350 (Ecall emergency call system, Europe) Model 292 up to model year 2017 with code B54 (Live Traffic Information) N112/2 |
GF82.85-P-0220GN | |
| HERMES control unit, component description | Model 166, 292 as of model year 2017 with code 360 (HERMES UMTS) Model 166, 292 as of model year 2017 with code 362 (HERMES LTE) N112/9 |
GF82.85-P-0221GN | |
| Component description for emergency call system control unit | Model 166 as of model year 2016 up to model year 2017 with code 348 (Emergency call/assistant system) Model 292 up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212GNU | |
| Drivetrain control unit, component description | Model 166.063 with engine 276.8 as of model year 2016 N127 | GF54.21-P-2141GN | |
| Table of contents for function description, telematics | GF82.85-P-0993GN |
