Remove/Install Engine With Front Axle Carrier - AR01.10-P-2500MNG

Engine 177 in model 253 with code M005 (Vehicles with 4MATIC/all-wheel drive)

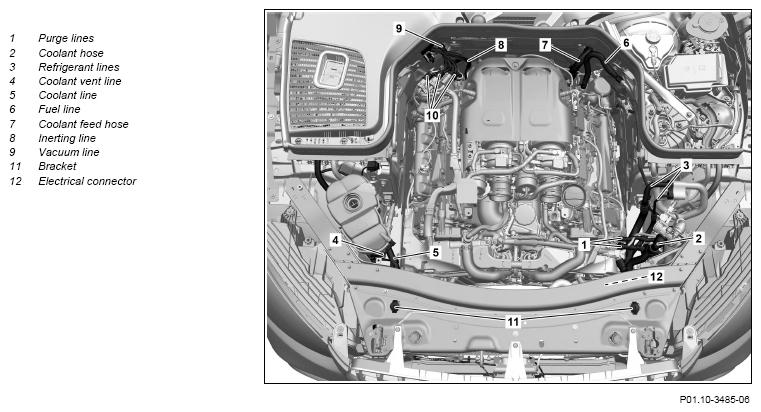

G12816340Courtesy of MERCEDES-BENZ USA

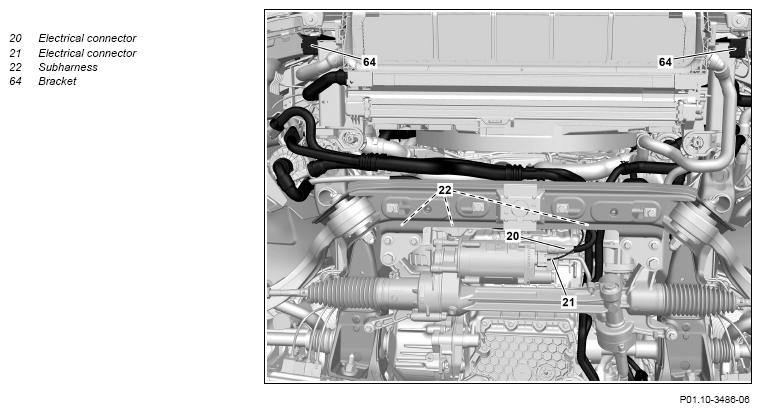

G12816341Courtesy of MERCEDES-BENZ USA

Shown in front right wheel arch

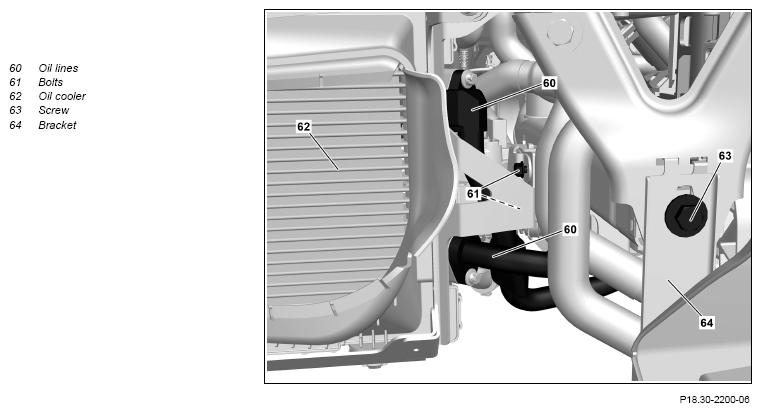

G12816342Courtesy of MERCEDES-BENZ USA

Shown in front left wheel arch

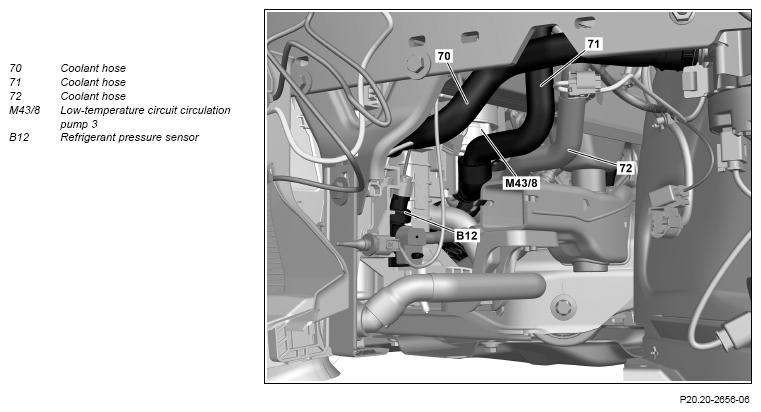

G12816343Courtesy of MERCEDES-BENZ USA

Shown in front right wheel arch

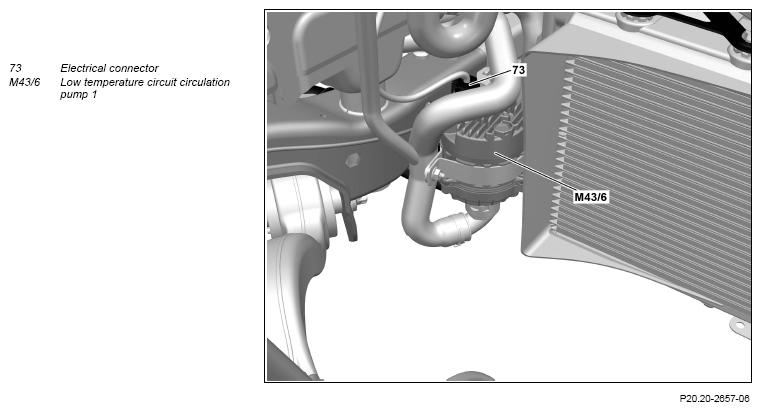

G12816344Courtesy of MERCEDES-BENZ USA

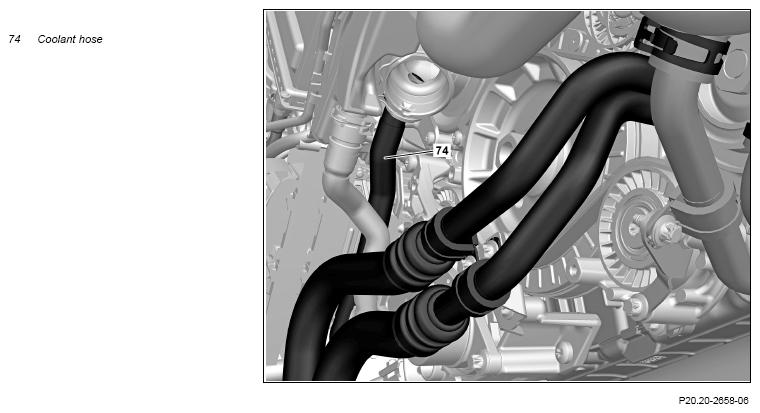

G12816345Courtesy of MERCEDES-BENZ USA

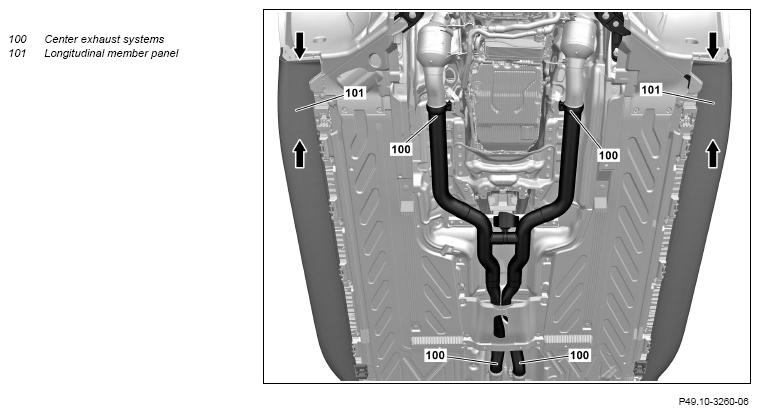

G12816346Courtesy of MERCEDES-BENZ USA

Shown on right wheel arch

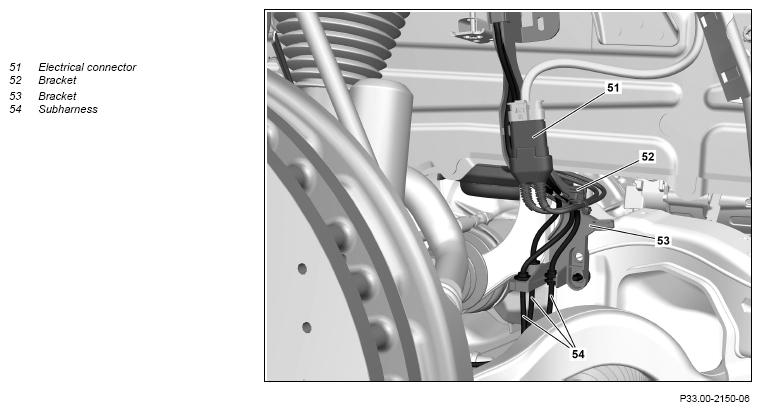

G12816347Courtesy of MERCEDES-BENZ USA

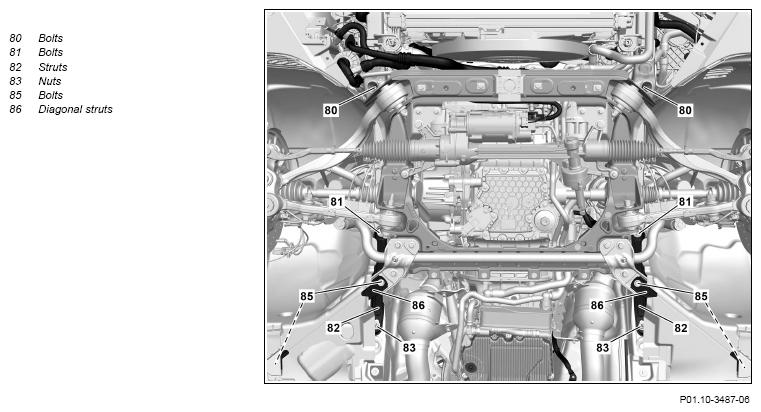

G12816348Courtesy of MERCEDES-BENZ USA
  Risk of fire  due to ignition of R1234yf refrigerant on hot components.Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. AS83.00-Z-0007-01A
  Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. AS20.00-Z-0001-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-N-0005-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Notes on handling refrigerant R1234yf   AH83.30-P-0003-02A
  Notes on AIRMATIC Engine 177 in model 253 with code 489 (AIR BODY CONTROL) with code M005 (Vehicles with 4MATIC/all-wheel drive) AH32.22-P-1000-02LW
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
  Use of engine no. when installing reconditioned engines and factory-new replacement engines or crankcases   AH01.10-P-0001-01A
  Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Deactivate easy entry/exit feature
2 Shift transmission to neutral and release parking brake
3 Secure vehicle on vehicle lift   AR00.60-P-0100CW
4 Relieve pressure in front suspension struts using vehicle diagnosis system
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
5 Place front wheels in straight-ahead position
6 Disconnect battery ground line   AR54.10-P-0003LW
7 Detach front complete wheels   AR40.10-P-1102A
8 Remove screws of front axle shafts at wheel hubs Where engine is subsequently removed from front axle carrier. IMPORTANT Aid of helper required. AR33.30-P-0620LW
9 Fix steering wheel in position using the holding device SPECIAL TOOL Retainer device Fig 4
10 Disconnect steering coupling Engine 177 in model 253 with code M005 (Vehicles with 4MATIC/all-wheel drive)
except code 700 (Technology Local Content China)
NOTES
Do not turn steering wheel with steering coupling removed.
Otherwise, clock spring contact is destroyed.
AR46.10-P-8000-01LW
SPECIAL TOOL Engine mount wrench set Fig 1
11 Remove left-hand air filter housing   AR09.10-P-1151MNG
12 Remove right air filter housing   AR09.10-P-1152MNG
13 Drain air conditioning system   AR83.30-P-1760LW
14 Disconnect refrigerant lines (3) at separating point and seal openings with suitable stop plugs and protective covers TORQUE SPECIFICATION Nut, refrigerant line to connecting point *BA83.30-P-1004-01Q
SPECIAL TOOL Record plug Fig 5
SPECIAL TOOL Set of protective caps Fig 3
15 Secure refrigerant lines (3) to engine
16 Remove purge lines (1) and seal with suitable stop plugs SPECIAL TOOL Record plug Fig 5
17 Relieve fuel pressure over diagnostic socket   AR07.03-P-1460-01MNG
TORQUE SPECIFICATION Dust protection cap to service connection *BA07.03-P-1005-01H
SPECIAL TOOL Pressure hose Fig 7
18 Remove fuel line (6) and seal openings with suitable stop plugs TORQUE SPECIFICATION Union nut, fuel hose to diagnostic socket/fuel line *BA07.03-P-1006-01H
SPECIAL TOOL Record plug Fig 5
19 Remove vacuum line (9) at firewall and seal with suitable stop plugs SPECIAL TOOL Record plug Fig 7
20 Disconnect inerting line (8) at firewall and place to one side
21 Disconnect engine wiring harness for removal of engine   AR15.18-P-1000-05MNG
22 Release and disconnect electrical connector (12) of fan unit and remove electric line   AR20.40-P-5050MNG
23 Remove brackets (11) of radiator package at upper crossmember
24 Remove all lower engine compartment linings IMPORTANTInstallation:  Only install all lower engine compartment linings after leak test. AR61.20-P-1105LW
25 Remove front bumper   AR88.20-P-2000LW
26 Remove covers over diagonal struts (86)   AR88.10-P-1300LW
27 Remove left and right longitudinal member panel (101) in area of (arrows)   AR88.80-P-6000LWG
28 Remove diagonal struts (86) TORQUE SPECIFICATION Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console *BA61.10-P-1006-01L
29 Remove center exhaust systems (100)   AR49.10-P-7283MNG
30 Detach propeller shaft at transmission end   AR41.10-P-0050LWX
31 Drain engine oil
REFER TO MAINTENANCE     AP18.00-P-0101D
32 Insert and tighten new drain screw TORQUE SPECIFICATION Plastic drain screw to oil pan bottom section *BA01.45-P-1007-01Y
33 Drain coolant at radiator   AR20.00-P-1142MNG
34 Drain coolant from low-temperature circuit   AR09.41-P-6834MNG
35 Remove coolant vent line (4) from expansion reservoir and place to one side   AR20.20-P-7441-01RQ
36 Remove coolant line (5) from expansion reservoir and place to one side and seal openings with protective covers   AR20.20-P-7441-01RQ
SPECIAL TOOL Set of protective caps Fig 3
37 Remove coolant hose (2) from low-temperature circuit switchover valve (Y73/1) and seal openings with protective covers   AR20.20-P-7441-01RQ
SPECIAL TOOL Set of protective caps Fig 3
38 Release and disconnect electrical connector at refrigerant pressure sensor (B12)
39 Remove coolant hose (70) from radiator for low-temperature water circuit and seal openings with protective covers   AR20.20-P-7441-01RQ
SPECIAL TOOL Set of protective caps Fig 3
40 Remove coolant hose (71) from low-temperature circuit circulation pump 3 (M43/8) and seal openings with protective covers   AR20.20-P-7441-01RQ
SPECIAL TOOL Set of protective caps Fig 3
41 Remove coolant hose (72) from transmission coolant line and seal openings with protective covers SPECIAL TOOL Set of protective caps Fig 3
SPECIAL TOOL Hose clamp pliers Fig 2
42 Remove coolant hose (74) from thermostat housing and seal openings with protective covers   AR20.20-P-7441-01RQ
SPECIAL TOOL Set of protective covers Fig 6
43 Remove coolant feed hose (7) at partition and seal openings with protective covers   AR20.20-P-7441-01RQ
SPECIAL TOOL Set of protective caps Fig 3
44 Secure radiator package to engine
45 Release and disconnect electrical connector from low temperature circuit circulation pump 3 (M43/8)   AR09.41-P-6932MNG
46 Remove screws of oil lines (60) TORQUE SPECIFICATION Screw/bolt, oil line to front-end/wheel arch oil cooler *BA18.30-P-1006-01N
47 Remove oil lines (60) at oil cooler (62) and sea openings with protective covers SPECIAL TOOL Set of protective caps Fig 3
48 Remove screws (61) of oil cooler (62) bracket TORQUE SPECIFICATION Screw/bolt, front-end/wheel arch oil cooler to bracket *BA18.30-P-1005-01N
49 Release and disconnect electrical connector (73) from low-temperature circuit circulation pump 1 (M43/6)
50 Release and disconnect electrical connectors (20, 21) of electric power steering   AR46.20-P-0600LW
51 Remove subharness (22) of electric power steering at front axle carrier   AR46.20-P-0600LW
52 Place subharness (22) of electric power steering to one side and fix in place in wheel arch
53 Remove RPM sensors at steering knuckles   AR42.30-P-0712LW
54 Release and disconnect electrical connectors of left and right suspension strut Engine 177 in model 253 with code 489 (AIR BODY CONTROL) with code M005 (Vehicles with 4MATIC/all-wheel drive) AR32.25-P-1017LWL
55 Unclip electric lines at left and right steering knuckle
56 Unclip brackets of electric lines at left and right spring links   AR33.15-P-0170LW
57 Unclip electric lines at left and right suspension strut
58 Remove left and right front brake caliper from steering knuckles and secure with connected brake lines in wheel arch Engine 177 in model 253 with code B07 (Ceramic brake system) with code M005 (Vehicles with 4MATIC/all-wheel drive)
except code B06 (AMG high-performance braking system)
except code U70 (AMG high-performance composite braking system)
AR42.10-P-0070LWC
Engine 177 in model 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code U70 (AMG high-performance composite braking system) except code B06 (AMG high-performance braking system)
except code B07 (Ceramic brake system)
AR42.10-P-0070LWD
Engine 177 in model 253 with code B06 (AMG high-performance braking system) with code M005 (Vehicles with 4MATIC/all-wheel drive)
except code B07 (Ceramic brake system)
except code U70 (AMG high-performance composite braking system)
AR42.10-P-0070LWB
59 Release and disconnect electrical connector (51) at left and right side of vehicle Engine 177 in model 253 with code 466 (Active engine mount) with code M005 (Vehicles with 4MATIC/all-wheel drive)
60 Unclip left and right bracket (52) and remove left and right electrical connector (51) and place to one side
61 Unclip left and right bracket (53) at front axle carrier
62 Fix in place left and right subharness (54) of left and right front-axle half with brackets (53) to upper transverse control arm
63 Remove left and right suspension strut at spring links Engine 177 in model 253 with code 489 (AIR BODY CONTROL) with code M005 (Vehicles with 4MATIC/all-wheel drive) AR32.25-P-1017LWL
64 Remove upper transverse control arm at left and right steering knuckle and secure steering knuckles against tilting   AR33.20-P-0500LW
65 Remove screw (63) and remove brackets (64) TORQUE SPECIFICATION Bolt, soundproofing to front axle carrier *BA62.30-P-1006-01H
66 Support front axle carrier with lifting platform and major assembly mount and secure engine-transmission unit to prevent slipping and falling down with a tensioning strap 000 588 03 62 00 Lifting platform
REFER TO SPECIAL TOOLS   IMPORTANT When doing so ensure that mounting plates are evenly aligned. WS01.00-P-0091A
67 Remove screws of rear engine crossmember NOTES
Never use impact wrench/driver or compressed air tools for screwing in or unscrewing the screw/bolts.
Threads will otherwise be damaged. IMPORTANTInstallation:  Replace screws of rear engine crossmember.
AR22.10-P-4360MNG
68 Remove screws (80, 81)
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
    NOTES
Under no circumstances use impact wrenches or pneumatic tools to remove/screw in screws (82).
Threads will otherwise be damaged. IMPORTANTInstallation:  Replace screws (80, 81).

    SPECIAL TOOL Bolt, front axle carrier to longitudinal member *BA33.10-P-1001-01Q
69 Remove nuts (83) and remove struts (82) NOTES
In no case, use impact wrenches or pneumatic tools to remove/screw on nuts (83). Threads will otherwise be damaged. IMPORTANT Installation: Replace nuts (83).

    TORQUE SPECIFICATION Mount, support (strut) *BA33.10-P-1002-01Q
70 Lower radiator package, engine with transmission and front axle carrier
REFER TO SPECIAL TOOLS 000 588 03 62 00 Lifting platform   WS01.00-P-0091A
    NOTES
The engine and transmission must not impact on the body panels or major assemblies, lines and hoses must not be pinched or put under tension.
Damage will occur otherwise. IMPORTANT Aid of helper required.

71 Install in the reverse order
72 Check engine oil level; correct if necessary
REFER TO MAINTENANCE     AP18.00-P-1812CKI
73 Perform wheel alignment check   AR40.20-P-0200LW
74 Read out and erase fault memory
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
75 Carry out an engine test run, checking the engine for proper operation and leaktightness
76 Install all lower engine compartment linings   AR61.20-P-1105LW
OIL PAN

Number Designation Engine 177
BA01.45-P-1007-01Y Plastic drain screw to oil pan bottom section Maximum Nm 4
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1005-01H Dust protection cap to service connection Nm 1
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1006-01H Union nut, fuel hose to diagnostic socket/fuel line Nm 24
OIL COOLING

Number Designation Engine 177 except in model 463
BA18.30-P-1005-01N Screw/bolt, front-end/wheel arch oil cooler to bracket Nm 8
OIL COOLING

Number Designation Engine 177 except in model 463
BA18.30-P-1006-01N Screw/bolt, oil line to front-end/wheel arch oil cooler Nm 8
FRONT AXLE CARRIER

Number Designation Model 253
BA33.10-P-1001-01Q Bolt, front axle carrier to longitudinal member Nm 180
FRONT AXLE CARRIER

Number Designation Model 253
BA33.10-P-1002-01Q Mount, support (strut) Nm 110
FRAME FLOOR ASSEMBLY

Number Designation Model 253
BA61.10-P-1006-01L Bolt, front diagonal strut to front axle carrier/torsion bar bearing shell/radiator mounting console Nm 50
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 253
BA62.30-P-1006-01H Bolt, soundproofing to front axle carrier M8 Nm 23
AIR CONDITIONING

Number Designation Model 253
BA83.30-P-1004-01Q Nut, refrigerant line to connecting point Nm 12
Fig 1: Identifying Engine Mount Wrench Set (001 589 01 16 00)
G12816349Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Hose Clamp Pliers (003 589 03 37 00)
G11065550Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Set Of Protective Caps (001 589 00 91 00)
G12079493Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Retainer Device (129 589 01 21 00)
G12078799Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Record Plug (129 589 00 91 00)
G11065549Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Set Of Protective Covers (001 589 01 91 00)
G12079431Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Pressure Hose (119 589 04 63 00)
G12078803Courtesy of MERCEDES-BENZ USA
