Disconnect/Connect Engine Wiring Harness To Remove Engine - AR15.18-P-1000-05MNG
Engine 177 in model 253
GROUND POINTS
| Number | Designation | Model 253 (except 253.99) | ||
|---|---|---|---|---|
| BA00.19-P-1043-01E | Nut, ground line to pin/underfloor | M8 | Nm | 20 |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.10-P-1009-04H | Screw/bolt, heat shield to oil pan | Nm | 9 |
WIRING HARNESS
| Number | Designation | Model 253 | ||
|---|---|---|---|---|
| BA54.18-P-1001-02C | Nut, positive line to busbar on firewall | M6 | Nm | 8 |
| M8 | Nm | 16 | ||

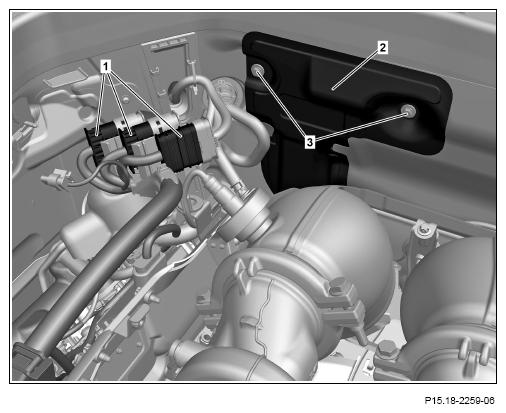

- Release and disconnect electrical connectors (1).
- Remove bolts (3) and remove heat shield (2).

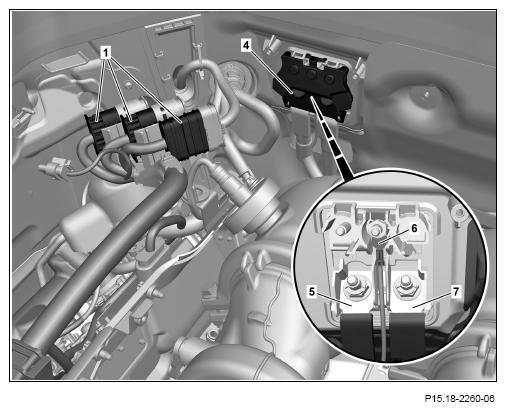

- Remove heat shield in front of cover (4).
- Remove cover (4).
- Remove electric line (5) from busbar
.
- Remove electric line (6) from busbar
- Remove electric line (7) from busbar

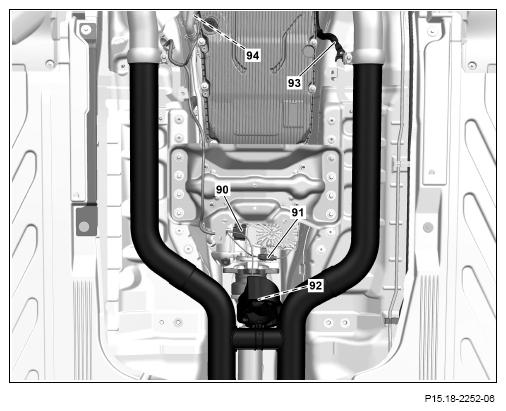

- Release and disconnect the electrical connector (90) of the all-wheel drive control unit (N45).
- Release and disconnect electrical connector (91).
- Release and disconnect the electrical connector (92) on the center exhaust gas flap actuator motor (M16/55)
- Detach ground line (93) from underfloor
- Remove heat shield over electrical connector (94) at automatic transmission
- Release and disconnect electrical connector (94) of automatic transmission
- Connect in reverse order.
