Remove/Install Rear Engine Support - AR22.10-P-4360MNG
Engine 177 in model 253
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||

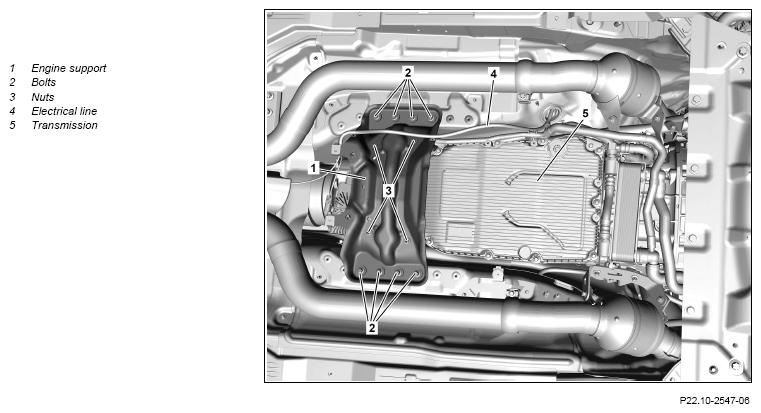

| 1 | Remove center and rear lower engine compartment paneling | AR61.20-P-1105LW | |
| 2 | Support transmission (5) | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 3 | Unclip electric line (4) at engine carrier (1) | ||
| 4 | Unscrew nuts (3) | *BA22.10-P-1004-03M | |
| 5 | Remove screws (2) and remove engine carrier (1) | In no case use impact wrenches or pneumatic tools to remove/screw in screws (2). Threads will otherwise be damaged |
|
| *BA22.10-P-1005-03M | |||
| 6 | Install in the reverse order |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 253.388/389/988/989 | ||
|---|---|---|---|---|
| BA22.10-P-1004-03M | Bolt, engine crossmember to rear engine mount | M6 | Nm | 18 |
| M8 | Nm | - | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 253.388/389/988/989 | ||
|---|---|---|---|---|
| BA22.10-P-1005-03M | Bolt, engine crossmember to frame floor assembly | Stage 1 | Nm | 30 |
| Stage 2 | Nm | 50 | ||
