Remove/install engine with transmission - AR01.10-P-2401GW

ENGINE 157 in MODEL 463

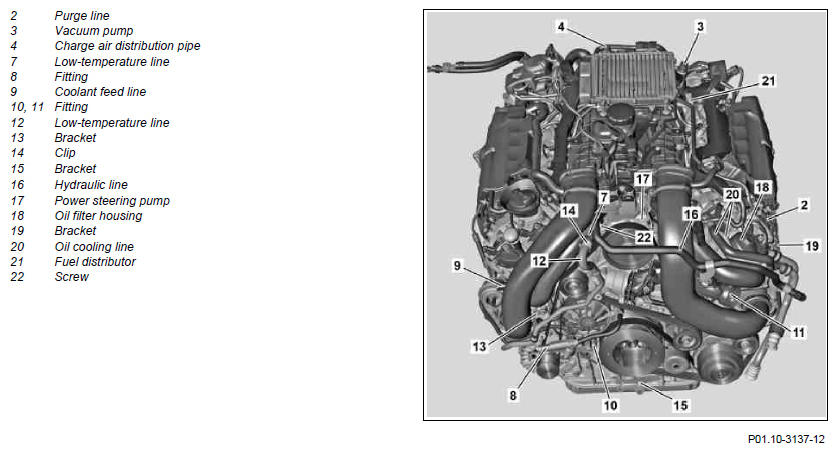

Fig 1: Engine With Transmission Remove/Install Components (1 Of 3)
G10779813Courtesy of MERCEDES-BENZ USA

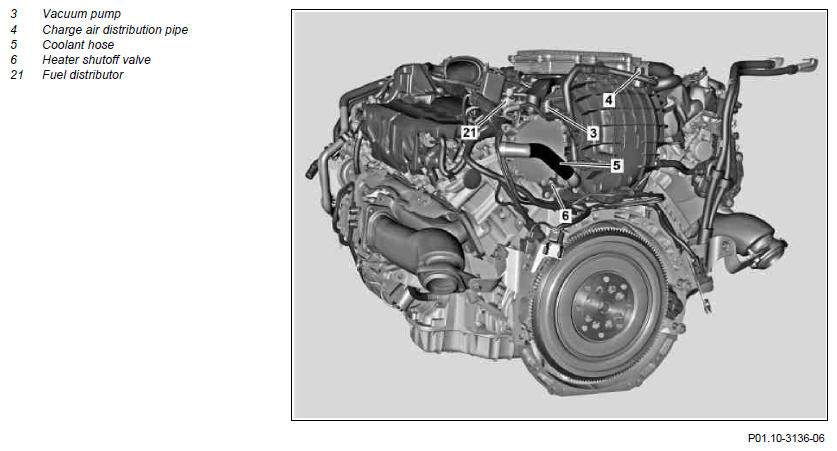

Fig 2: Engine With Transmission Remove/Install Components (2 Of 3)
G10779814Courtesy of MERCEDES-BENZ USA

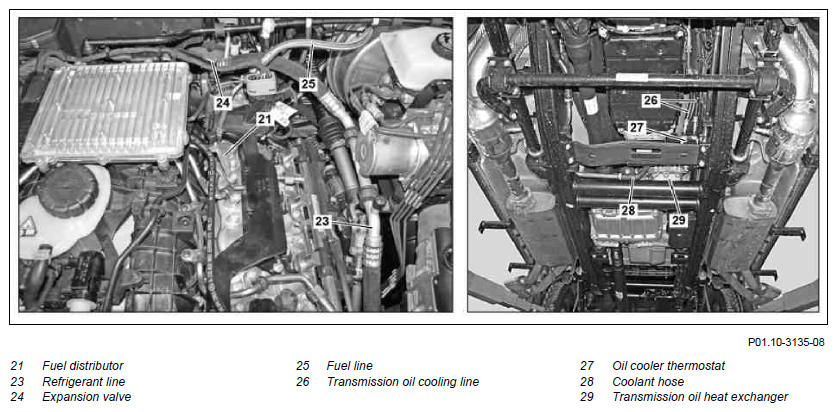

Fig 3: Engine With Transmission Remove/Install Components (3 Of 3)
G10779815Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
    IMPORTANT The ground line on the battery must always  be detached before beginning work on the fuel system otherwise pressure will be built up in the fuel system through opening a vehicle door.
1 Set DIRECT SELECT gear selector switch to position "N" and release parking brake
2 Detach ground line from battery   AR54.10-P-0003GW
NOTES Notes on battery   AH54.10-P-0001-01A
3 Open engine hood and raise to vertical position   AR88.40-P-1000GG
4 Remove both air filter housings   AR09.10-P-1150GW
5 Remove both engine air intake ducts
6 Disconnect purge hose on purging switchover valve from purge line (2) INSTALLATION IMPORTANT Replace clamp if necessary.
7 Detach vacuum line from vacuum pump (3) and charge air manifold (4)
8 Drain coolant   AR20.00-P-1142GW
NOTES Notes on coolant   AH20.00-N-2080-01A
9 Remove radiator for low temperature water circuit   AR09.41-P-6935GW
10 Remove radiator   AR20.20-P-3865GW
11 Remove fluid reservoir   AR83.30-P-6520GW
12 Remove air plenum chamber and water collector   AR83.10-P-9998GW
13 Detach refrigerant line (23) from bracket of traction system hydraulic unit and expansion valve (24) COMMERCIALLY AVAILABLE TOOLS Seal openings with stop plugs and place refrigerant line (23) on engine.
INSTALLATION IMPORTANT Replace sealing ring at refrigerant line (23).
IMPORTANT Each time the refrigerant circuit is opened, the fluid reservoir has to be replaced: ↓

Remove/install fluid reservoir. AR83.30-P-6520GW
TORQUE SPECIFICATION *BA83.30-P-1001-01C
SPECIAL TOOL Fig 4
14 Detach coolant hose (5) from heater shutoff valve (6)
15 Disconnect coolant hose from low-temperature line (7), to do so pull out clamp
16 Detach coolant hose from fitting (8)
17 Detach coolant feed hose from coolant feed line (9)
18 Detach coolant hose from fitting (10) of coolant pump and remove   AR09.41-P-1311-01AL
19 Detach coolant hose from fitting (11) of thermostat housing and remove   AR09.41-P-1311-01AL
20 Unscrew nut and detach low-temperature line (12) from bracket (13) on timing case cover
21 Release clamp (14), detach low-temperature line (12) and place to one side
22 Detach pressure line of power steering from bracket (15) to engine oil pan TORQUE SPECIFICATION *BA46.30-P-1025-01B
23 Detach hydraulic line (16) from power steering pump (17), oil filter housing (18) and bracket (19) on left cylinder head cover TORQUE SPECIFICATION *BA46.30-P-1019-01B
TORQUE SPECIFICATION *BA46.30-P-1020-01B
TORQUE SPECIFICATION *BA46.30-P-1021-01B
24 Remove screw/bolt (22) from power steering pump (17) bracket
25 Remove power steering pump (17) from coolant pump and bracket at bottom of timing case cover IMPORTANT Place power steering pump (17) with lines connected to one side and secure against falling down using cable ties. AR46.30-P-0500GW
TORQUE SPECIFICATION *BA46.30-P-1018-01B
TORQUE SPECIFICATION *BA46.30-P-1023-01B
26 Remove engine hood catch on right or left side   AR88.40-P-3200GW
27 Remove left horn
28 Detach cooling line of power steering from left wheel well paneling IMPORTANT Place cooling line of power steering with lines connected to one side. AR46.25-P-3010GW
29 Detach oil cooling lines (20) from oil filter housing (18) and bracket (19) to left cylinder head cover and place to one side IMPORTANT Seal openings using stop plugs.
INSTALLATION IMPORTANT Replace sealing rings.

TORQUE SPECIFICATION *BA18.30-P-1005-01G
TORQUE SPECIFICATION *BA18.30-P-1007-01G
SPECIAL TOOL Fig 4
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning  caused by inhaling and swallowing fuel and risk of injury  to eyes and skin caused by contact with fuel No fire, sparks, open flames or smoking.
Pour fuels only into suitable and appropriately marked containers.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
30 Reduce fuel pressure through service valve IMPORTANT Collect fuel which runs out in a suitable container. AR07.03-P-1460-01GW
TORQUE SPECIFICATION *BA07.03-P-1007-01E
SPECIAL TOOL Fig 5
31 Detach fuel line (25) from fuel distributor (21) TORQUE SPECIFICATION *BA07.03-P-1001-01E
32 Remove ME-SFI [ME] control unit   AR07.08-P-7008GW
33 Disconnect engine wiring harness on the vehicle side   AR01.00-P-2410-02GW
34 Mount engine suspension lug   AR33.10-P-0105-01GW
TORQUE SPECIFICATION *BA01.30-P-1006-01X
SPECIAL TOOL Fig 6
35 Remove complete exhaust system   AR49.10-P-7000GW
36 Detach transmission oil cooling lines (26) from oil cooler thermostat (27) IMPORTANT Seal openings using stop plugs. AR27.10-P-0501-03GW
SPECIAL TOOL Fig 4
37 Detach ground strap between frame and transmission on transmission TORQUE SPECIFICATION *BA27.40-P-1001-01E
38 Detach coolant hose (28) from transmission oil heat exchanger (29) IMPORTANT Seal openings using stop plugs.
39 Detach drive shaft from transmission output flange of transmission NOTES Attach colored marking of the propeller shaft position to transmission output flange. The factory installation position is made during installation. This helps to avoid any drivetrain vibrations.
INSTALLATION IMPORTANT Install new bolts.
TORQUE SPECIFICATION *BA41.10-P-1001-01B
40 Detach rear engine mount from crossmember IMPORTANT Do not remove the crossmember from the frame. AR22.10-P-1160GW
41 Detach both single-tube engine vibration dampers from the frame   AR22.10-P-1152GW
42 Remove screws/bolts of engine mount from frame   AR22.10-P-1260GW
43 Slightly raise engine transmission unit at front engine suspension lug IMPORTANT Ensure that no lines are overstretched and that the engine and its detachable parts do not touch the body.
Load regulator

44 Carefully raise engine transmission unit further and then remove IMPORTANT Check for uniform alignment.
IMPORTANT Ensure that engine transmission unit does not touch any body parts or major assemblies and that no lines are pinched or damaged.

45 Install in the reverse order
46 Check engine oil level; correct if necessary
47 Pour in coolant   AR20.00-P-1142GW
48 Inspecting cooling system for leaks   AR20.00-P-1010GW
49 Drain, evacuate and recharge air conditioning, check for proper operation and check for leaks   AR83.30-P-1760GW
50 Check transmission oil level and correct if necessary   AR27.00-P-0270W
51 Read out fault memory using STAR DIAGNOSIS and erase if necessary   AD00.00-P-2000-04A
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
52 Carry out engine test run, checking the engine for leaks and proper operation
PROPELLER SHAFT

Number Designation Model 463
BA41.10-P-1001-01B Screw/bolt, homokinetic propeller shaft to transmission flange Nm 60
HOUSING

Number Designation Transmission 722.9 in model 463
BA27.40-P-1001-01E Bolt, automatic transmission to crankcase Nm 39
POWER STEERING PUMP

Number Designation Model 463.272/273
BA46.30-P-1018-01B Bolt, power steering pump to coolant pump Nm 20
BA46.30-P-1019-01B Bolt, hydraulic line to power steering pump Nm 9
BA46.30-P-1020-01B Bolt, hydraulic line to oil filter housing Nm 9
BA46.30-P-1021-01B Bolt, hydraulic line to bracket Nm 9
BA46.30-P-1023-01B Bolt, bracket for power steering pump to lower bracket Nm 20
BA46.30-P-1025-01B Bolt, pressure line for P/S to bracket for engine oil pan Nm 10
AIR CONDITIONING

Number Designation Model 463
BA83.30-P-1001-01C Nut on expansion valve Nm 10
INJECTORS, INJECTION VALVES, LINES

Number Designation Engine 157
BA07.03-P-1001-01E Union nut, fuel line to fuel distributor   Nm 22
BA07.03-P-1007-01E Protective cap on service valve Plastic Nm 2
Metal Nm 15
CYLINDER HEAD

Number Designation Engine 157
BA01.30-P-1006-01X Bolt, lifting eye to cylinder head Nm 14
OIL COOLING SYSTEM

Number Designation Engine 157
BA18.30-P-1005-01G Screw/bolt, oil cooler line to oil filter housing Nm 9
BA18.30-P-1007-01G Screw/bolt, oil cooler line bracket to cylinder head cover Nm 9
Fig 4: Identifying Set Of Stop Plugs (129 589 00 91 00)
G07742724Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Pressure Hose (119 589 04 63 00)
G07742723Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Lifting Eye (278 589 00 40 00)
G07687690Courtesy of MERCEDES-BENZ USA
