Remove/install fluid reservoir - AR83.30-P-6520GW

MODEL 463 as of model year 2013/model refinement package 2012

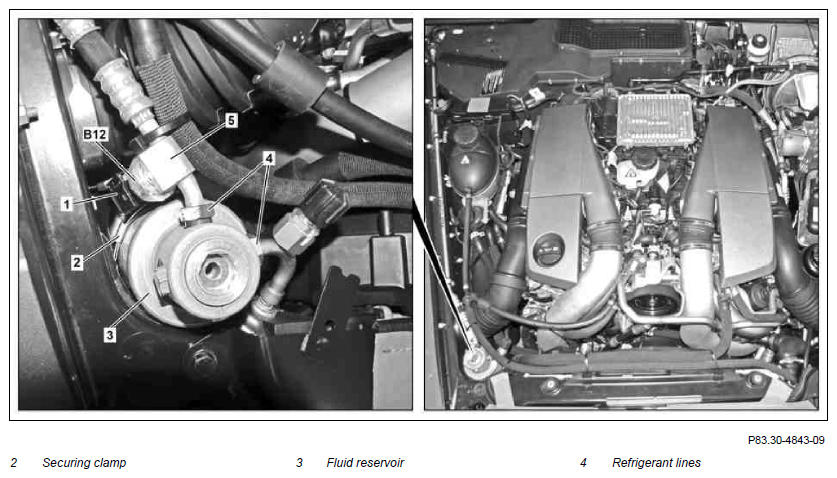

Fig 1: Fluid Reservoir Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Procedure for a damaged or leaky air conditioning system	All models	AH83.30-N-0004-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work	All models with air conditioning	AH83.30-N-0005-01A
	Notes on handling R134a refrigerant	Air conditioning with refrigerant R134a	AH83.30-N-0003-01A
1	Drain air conditioning system	Correct oil level in air conditioning system after replacing parts. Otherwise this may result in defects.	AR83.30-P-1760GW
2	Remove air conditioning evacuation, recycling and filling unit for refrigerant R134a	Air conditioner service unit
3	Unscrew refrigerant lines (4) and pull out of fluid reservoir (3)	Replace O-rings. Moisten threads and O-rings with compressor oil.
			*BA83.30-P-1002-01C
4	Loosen securing clamp (2)
5	Pull fluid reservoir (3) upwards out of the mounting clamp (2)	each time the refrigerant circuit is opened the fluid reservoir (3) must be replaced.
6	Install in the reverse order
7	Check air conditioning for proper operation
8	Check air conditioning system for leakage		AR83.30-P-1761GW
