Overview Of System Components, Transfer Case (VG) - GF28.10-P-9998VGG
Model 463 with transmission 725.0
as of model year 2019

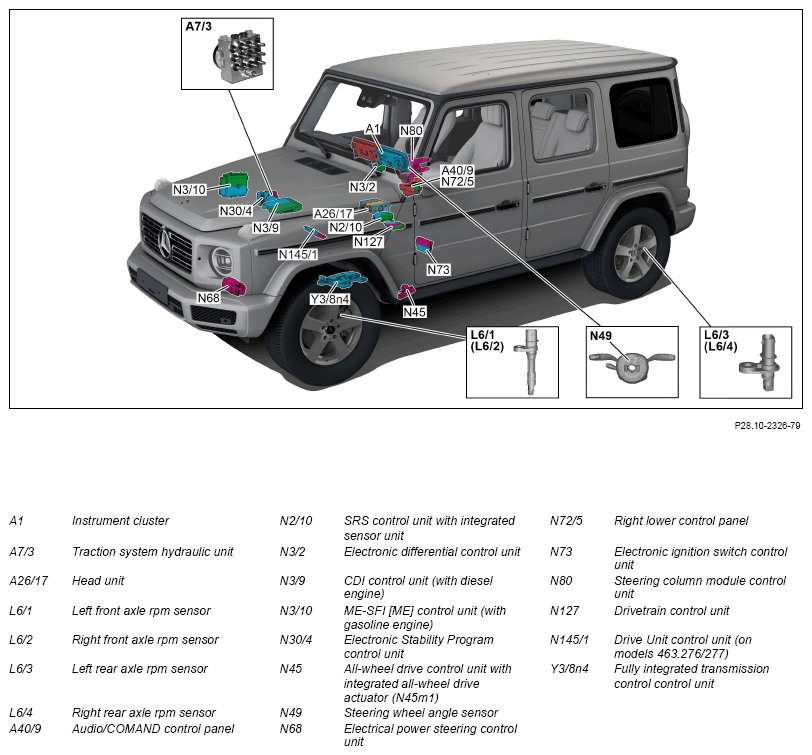

View of model 463

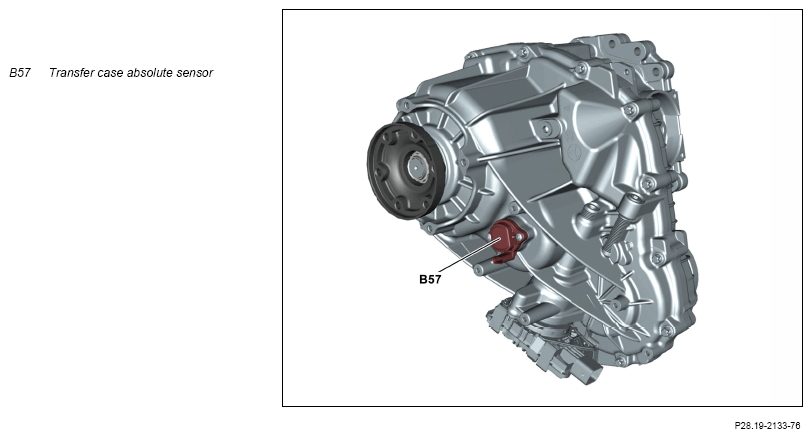

Shown on transfer case from rear
Shown on model 463.276/277

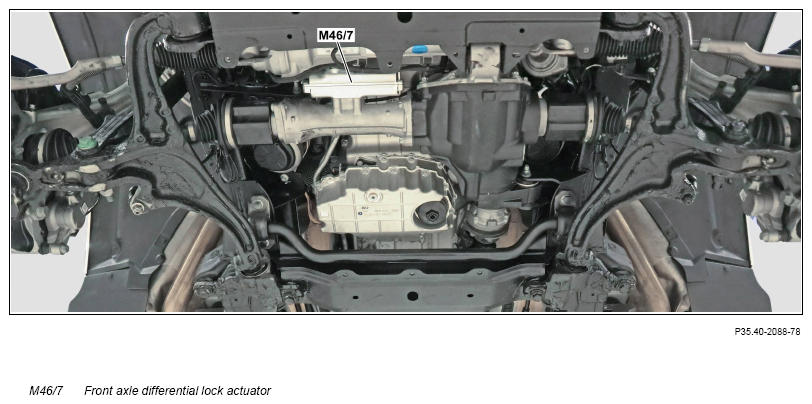

Shown on front axle differential lock actuator

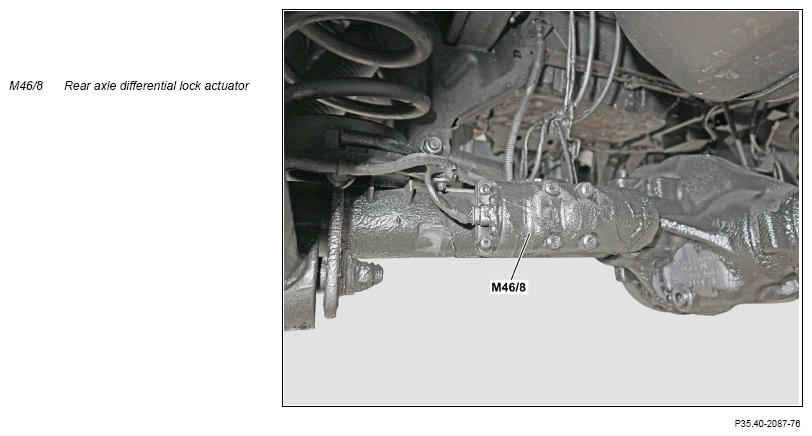

Shown on rear axle differential lock actuator
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Head unit, component description | A26/17 | GF82.85-P-3140GW | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GWM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GWM | |
| Electronic differential control unit, component description | N3/2 | GF28.19-P-3221VGG | |
| Component description for CDI control unit | Model 463 with engine 656.9 as of model year 2019 N3/9 |
GF07.16-P-6000OIB | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 176.9 with transmission 725.0 as of model year 2019 Model 463 with engine 177.9 with transmission 725.0 as of model year 2019 N3/10 |
GF07.61-P-6000MNH | |
| Component description for Electronic Stability Program control unit | Model 463 (except 463.342) with transmission 725.0 as of model year 2019 N30/4 |
GF42.45-P-5119GWM | |
| All-wheel drive control unit, component description | N45, N45m1 | GF28.19-P-3211VGG | |
| Electrical power steering control unit (ES), component description | Model 463 (except 463.342) with transmission 725.0 as of model year 2019 N68 |
GF46.35-P-7010GW | |

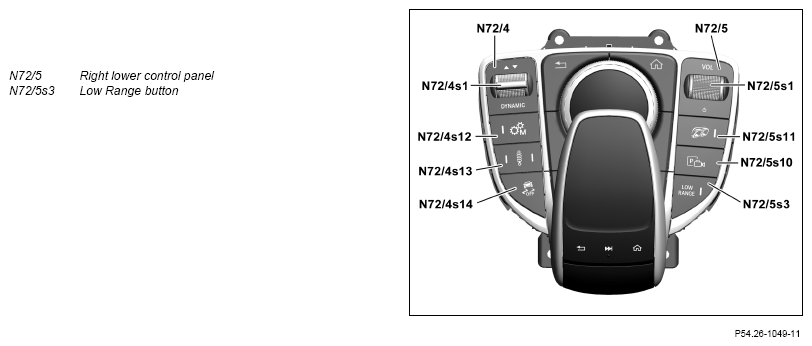

| Lower control panel, component description | N725, N725s3 | GF54.25-P-4270GWM | |
| Component description for the electronic ignition lock control unit | Model 463 (except 463.342) with transmission 725.0 as of model year 2019 N73 |
GF80.57-P-6001GWM | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GWM | |
| Drivetrain control unit, component description | Model 463 with engine 176.9 with transmission 725.0 as of model year 2019 Model 463 with engine 177.9 with transmission 725.0 as of model year 2019 N127 |
GF54.21-P-2141MNH | |
| Model 463 with engine 656.9 with transmission 725.0 as of model year 2019 N127 |
GF54.21-P-2141OIB | ||
| Drive unit control unit component description | Model 463 with transmission 725.085 as of model year 2019 N145/1 |
GF27.60-P-5168ANE | |
| Component description for fully integrated transmission control unit | Y38n4 | GF27.60-P-5165ANE | |
| Table of contents for function description of transfer case (VG) | GF28.10-P-0999VGG |
