Component Description For ME-SFI (ME) Control Unit - GF07.61-P-6000MNH
Engine 176.9, 177.9 in model 463
as of model year 2019

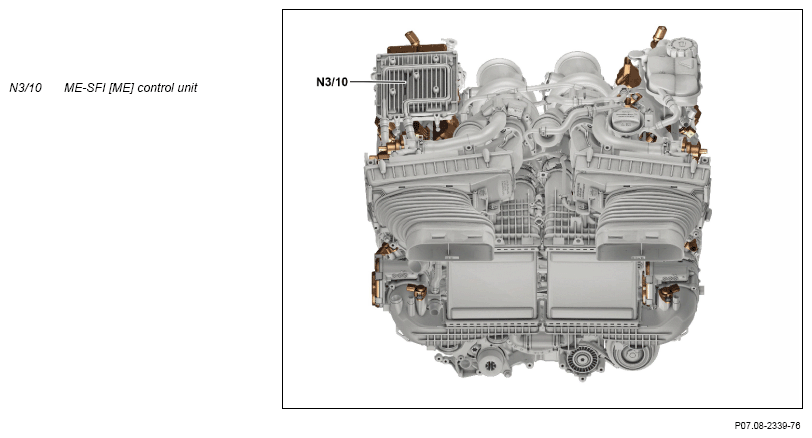

View of engine from top front (for engine 177.9)
Location
The ME-SFI [ME] control unit is located at the front right in the engine compartment.
Tasks
The primary task of the ME-SFI [ME] control unit is electronic engine management with the goal of economic engine operation with low emissions. In doing so the ME-SFI [ME] control unit continuously detects the relevant influencing factors, processes these and determines respective control signals for the individual actuators. For example injection quantities, the injection period, charging and throttle valve position are controlled. For deviations from normal operation the respective information is stored in the fault memory.
The electronic engine management includes the control of the following functions:
- Fuel supply
- Ignition system
- Injection quantity control
- Heat management
- Torque coordination (detection and implementation of corresponding requests)
- Charging
- Knock sensor system
- Exhaust treatment
- ECO start/stop function (with CODE MJ7 (ECO start/stop function))
- Catching the fuelling gases (with code ZU8 (National version USA))
- Purge control
- Diagnosis and fault storage
The ME-SFI [ME] control unit is networked over the following bus systems with the vehicle electronics:
- Drive-LIN (LIN C1)
- Drivetrain CAN (CAN C1)
- Engine CAN (CAN C)
For implementation of the electronic engine management the ME-SFI [ME] control unit undertakes the following tasks:
- Reading in of signals
- Evaluation of input factors
- Actuation of components
- Sending signals
Reading in of signals
Different sensors that detect the engine operating status are connected via direct lines to the ME-SFI [ME] control unit. These sensors deliver current, voltage or resistance values out of which the ME-SFI [ME] control unit deduces the operating condition of the engine. To do this the following sensors are important:
- Knock sensor 1 (A16/1)
- Knock sensor 2 (A16/2)
- Knock sensor 3 (A16/3)
- Knock sensor 4 (A16/4)
- Fuel tank pressure sensor (B4/3) (with code ZU8 (USA national version))
- Left intake camshaft Hall sensor (B6/4)
- Right intake camshaft Hall sensor (B6/5)
- Left exhaust camshaft Hall sensor (B6/6)
- Right exhaust camshaft Hall sensor (B6/7)
- Coolant temperature sensor (B11/4)
- Left charge air temperature sensor (B17/14)
- Right charge air temperature sensor (B17/15)
- Pressure sensor downstream of air filter, left cylinder bank (B28/4)
- Pressure sensor downstream of air filter, right cylinder bank (B28/5)
- Pressure sensor upstream of left throttle valve (B28/20)
- Pressure sensor upstream of right throttle valve (B28/21)
- Pressure sensor downstream of left throttle valve (B28/22)
- Pressure sensor downstream of right throttle valve (B28/23)
- Accelerator pedal sensor (B37)
- Oil sensor (oil level, temperature and quality) (B40)
- Right fuel pressure and temperature sensor (B42/1)
- Left fuel pressure and temperature sensor (B42/2)
- Crankshaft Hall sensor (B70)
- Left oxygen sensor upstream of catalytic converter (G3/3)
- Right oxygen sensor upstream of catalytic converter (G3/4)
- Left oxygen sensor downstream of catalytic converter (G3/5)
- Right oxygen sensor downstream of catalytic converter (G3/6),
- Left throttle valve actuator (M16/60)
- Right throttle valve actuator (M16/61)
- Supplemental restraint system control unit (N2/10) (Crash income)
For implementation of the electronic engine management the ME-SFI [ME] control unit reads in a number of sources including the following signals over the various bus systems.
| Signal contents | Transmitter | Connection |
|---|---|---|
| Circuit 61 status | Alternator (G2) | Drive-LIN (LIN C1) |
| Alternator utilization | ||
| Fault | ||
| Fuel pressure | Fuel system control unit (N118) | Drivetrain CAN (CAN C1) |
| Fuel level | ||
| Fuel temperature (with code ZU8 (USA national version)) | ||
| Fault | ||
| Drive position | Fully integrated transmission control unit (Y3/8n4) | Drivetrain CAN (CAN C1) |
| Selector lever position | ||
| Increase engine torque | ||
| Reduce engine torque | ||
| Increase engine torque | Active Brake Assist controller unit (except code EM4 (Driving Assistance Package)) (A108) or Distance Pilot DISTRONIC control unit (A108/1) (with code EM4 (Driving Assistance Package)) | FlexRay (Flex E), powertrain control unit (N127) and engine CAN (CAN C) |
| Reduce engine torque | ||
| Crash signal | Supplemental Restraint System control unit (N2/10) | Via the user interface CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Driver seat belt buckle status | Via the user interface CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) | |
| Outside temperature | Front SAM control unit (N10/6) | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Engine hood contact switch, status | ||
| Engine start request (with code MJ7 (ECO start/stop function)) | ||
| Engine stop prohibition (with code MJ7 (ECO start/stop function)) | ||
| A/C status | Climate control, control unit (N22/1) | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Engine start request (with code MJ7 (ECO start/stop function)) | ||
| Engine stop prohibition (with code MJ7 (ECO start/stop function)) | ||
| Wheel speed | Electronic Stability Program control unit (N30/4) | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Brake status | ||
| ESP® status | ||
| Engine start request (with code MJ7 (ECO start/stop function)) | ||
| Engine stop prohibition (with code MJ7 (ECO start/stop function)) | ||
| Increase engine torque | Via suspension FlexRay (Flex E) and powertrain control unit (N127) | |
| Reduce engine torque | ||
| Driver door status | Left front door control unit (N69/1) | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Engine stop prohibition (with code MJ7 (ECO start/stop function)) | ||
| Circuit status | Electronic ignition lock control unit (N73) | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Steering wheel angle | Steering column tube module control unit (N80) | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Steering wheel angular velocity |
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.
Actuation of components
The CDI control unit realizes the electronic engine management through actuation of various actuators which connected over direct lines:
- Starter circuit 50 relay (K40/8kH)
- Circuit 87M relay (K40/8kN)
- Engine compartment circuit 15 relay (K40/8kG)
- Left oxygen sensor upstream of catalytic converter
- Right oxygen sensor upstream of catalytic converter
- Left oxygen sensor downstream of catalytic converter
- Right oxygen sensor downstream of catalytic converter
- Fan motor (M4/7)
- Left throttle valve actuator
- Right throttle valve actuator
- Coolant thermostat heating element (R48)
- Ignition coil for cylinders 1 + 2 (T4)
- Ignition coil for cylinders 3 + 4 (T4/1)
- Ignition coil for cylinders 5 + 6 (T4/2)
- Ignition coil for cylinders 7 + 8 (T4/3)
- Heating system shutoff valve (Y16/2)
- Left intake camshaft solenoid (Y49/4)
- Right intake camshaft solenoid (Y49/5)
- Left exhaust camshaft solenoid (Y49/6)
- Right exhaust camshaft solenoid (Y49/7)
- Cylinder 2 intake CAMTRONIC actuator (Y49/11)
- Cylinder 2 exhaust CAMTRONIC actuator (Y49/12)
- Cylinder 3 intake CAMTRONIC actuator (Y49/13)
- Cylinder 3 exhaust CAMTRONIC actuator (Y49/14)
- Cylinder 5 intake CAMTRONIC actuator (Y49/15)
- Cylinder 5 exhaust CAMTRONIC actuator (Y49/16)
- Cylinder 8 intake CAMTRONIC actuator (Y49/17)
- Cylinder 8 exhaust CAMTRONIC actuator (Y49/18)
- Activated charcoal canister shutoff valve (Y58/4) (with code ZU8 (USA national version))
- Left purging switchover valve (Y58/11)
- Right purging switchover valve (Y58/12)
- Cylinder 1 fuel injector (Y76/1)
- Cylinder 2 fuel injector (Y76/2)
- Cylinder 3 fuel injector (Y76/3)
- Cylinder 4 fuel injector (Y76/4)
- Cylinder 5 fuel injector (Y76/5)
- Cylinder 6 fuel injector (Y76/6)
- Cylinder 7 fuel injector (Y76/7)
- Cylinder 8 fuel injector (Y76/8)
- Boost pressure control pressure transducer (Y77/1)
- Left quantity control valve (Y94/1)
- Right quantity control valve (Y94/2)
- Left thrust circulating air switchover valve (Y101/1)
- Right thrust circulating air switchover valve (Y101/2)
- Engine oil pump valve (Y130)
Sending signals
The CDI control unit transmits, amongst other things, the following function-relevant requests and information via the bus systems to various components and systems in the vehicle.
| Signal contents | Receiver | Connection |
|---|---|---|
| Charging voltage | Alternator (G2) | Drive-LIN (LIN C1) |
| Engine running status | Fuel system control unit (N118) | Drivetrain CAN (CAN C) |
| Fuel pressure request | ||
| Accelerator pedal position | ||
| Fuel temperature | ||
| Engine stop signal (with code MJ7 (ECO start/stop function)) | ||
| Shift curve offset | Fully integrated transmission control unit (Y3/8n4) | Drivetrain CAN (CAN C) |
| Brake status | ||
| ESP® status | ||
| Accelerator pedal position | ||
| Engine running status | ||
| Engine start/stop status (with code MJ7 (ECO start/stop function)) | ||
| Indicator lamp request | Instrument cluster (A1) | Via the user interface CAN (CAN HMI), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Show message | ||
| Alternator status | Front SAM control unit (N10/6) | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Tank venting status | ||
| Switch on air conditioning | Climate control, control unit (N22/1) | Over the interior CAN (CAN B), electronic ignition lock control unit (N73), suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Engine speed | Electronic Stability Program control unit (N30/4) | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Accelerator pedal position | ||
| Engine running status | ||
| Current engine torque | ||
| Engine running status | Steering column tube module control unit (N80) | Via suspension FlexRay (Flex E) and powertrain control unit (N127) |
| Accelerator pedal position | Powertrain control unit (N127) | Engine CAN (CAN C) |
| Engine running status | ||
| Engine torque, signal |
Variants
The engine timing variants, e. g. national version, are activated with XENTRY Diagnostics via the variant coding.
Exchange of the ME-SFI [ME] control unit is not necessary.
| Wiring diagram for gasoline-DI control unit | PE07.08-P-2101-97ZHD | ||
| PE07.08-P-2101-97ZHC |
