Remove/Install Panoramic Sunroof Drive Guide Rail - AR77.21-P-0430LWE
Model 213
with code 413 (Automatic panoramic sliding sunroof)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove rear roller sunblind | AR77.21-P-0201LWE | |
| 2 | Remove left and right panoramic roof roller sun blind drive cable | AR77.21-P-0230NKA | |
| 3 | Remove panoramic sliding roof motor | AR77.21-P-0002LWE | |
| 4 | Remove wind deflector | AR77.21-P-0100LWE | |

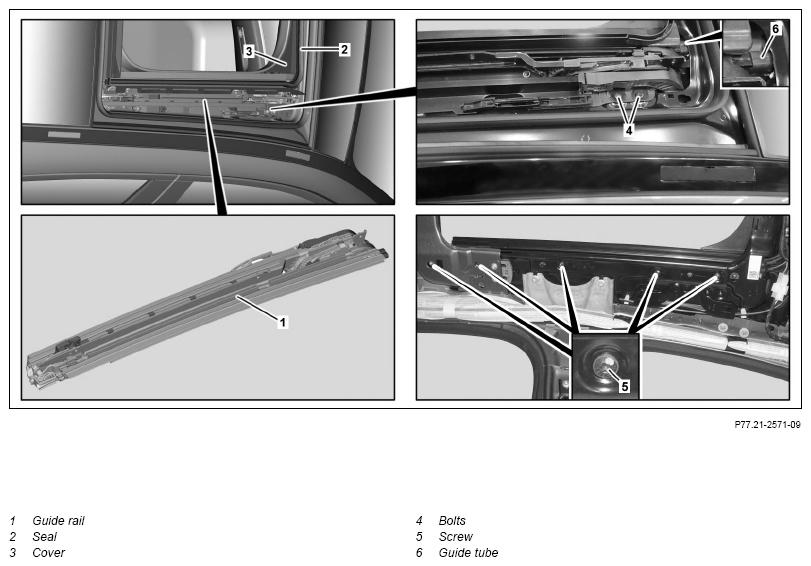

| 5 | Remove seal (2) | ||
| 6 | Remove cover (3) | ||
| 7 | Unscrew bolts (4, 5) | ||
| 8 | Remove panoramic roof guide rail (1) from panoramic sliding roof and pull panoramic roof drive cable out of guide tube (6) | ||
| 9 | Install in the reverse order |
